6 Parameter Settings and Functions
94 © Copyright Reserved Autonics Co., Ltd.
If transmission output high-limit [FsH□] is transmission output low-limit [FsL□], the
transmission output is 4 mA.

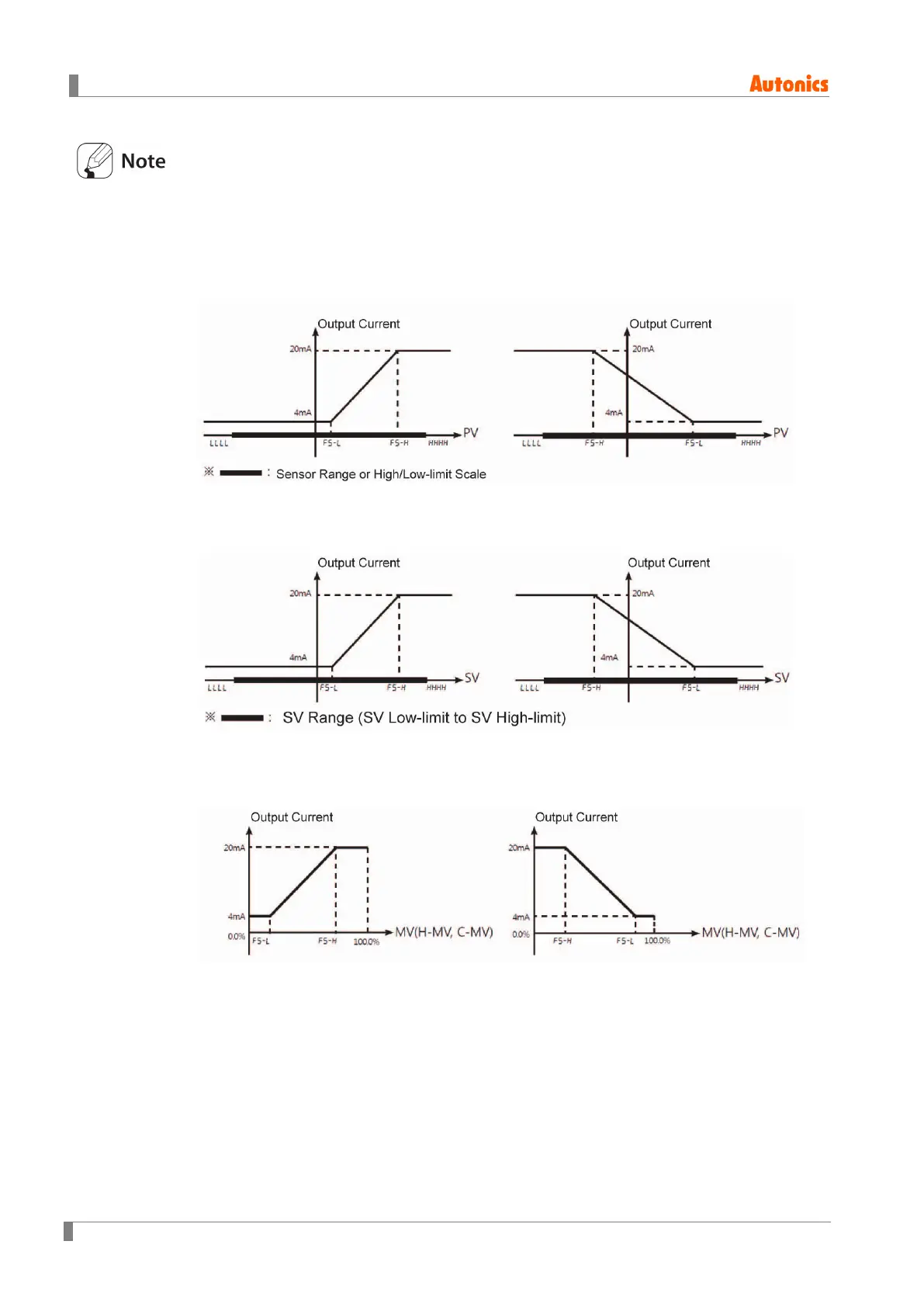

(1) Present value (PV) transmission output
PV within sensor range or upper/low-limit scale can be converted and transmitted as current
within the range of 4 to 20 mA.
(2) Set value (SV) transmission output
SV within sensor range or upper/low-limit scale can be converted and transmitted as current
within the range of 4 to 20 mA. When ramp is in effect, ramp SV is transmitted step by step.
(3) Heating MV/Cooling MV transmission output
You can convert 0 to 100% of heating [H-MV]/cooling MV [C-MV] into 4 to 20 mA current.
