BS100 DYFI Operators handbook
P-BS100/FE - Rev.F / Doc/ 980114 8 Autronica Fire and Security AS
3. Fire alarm

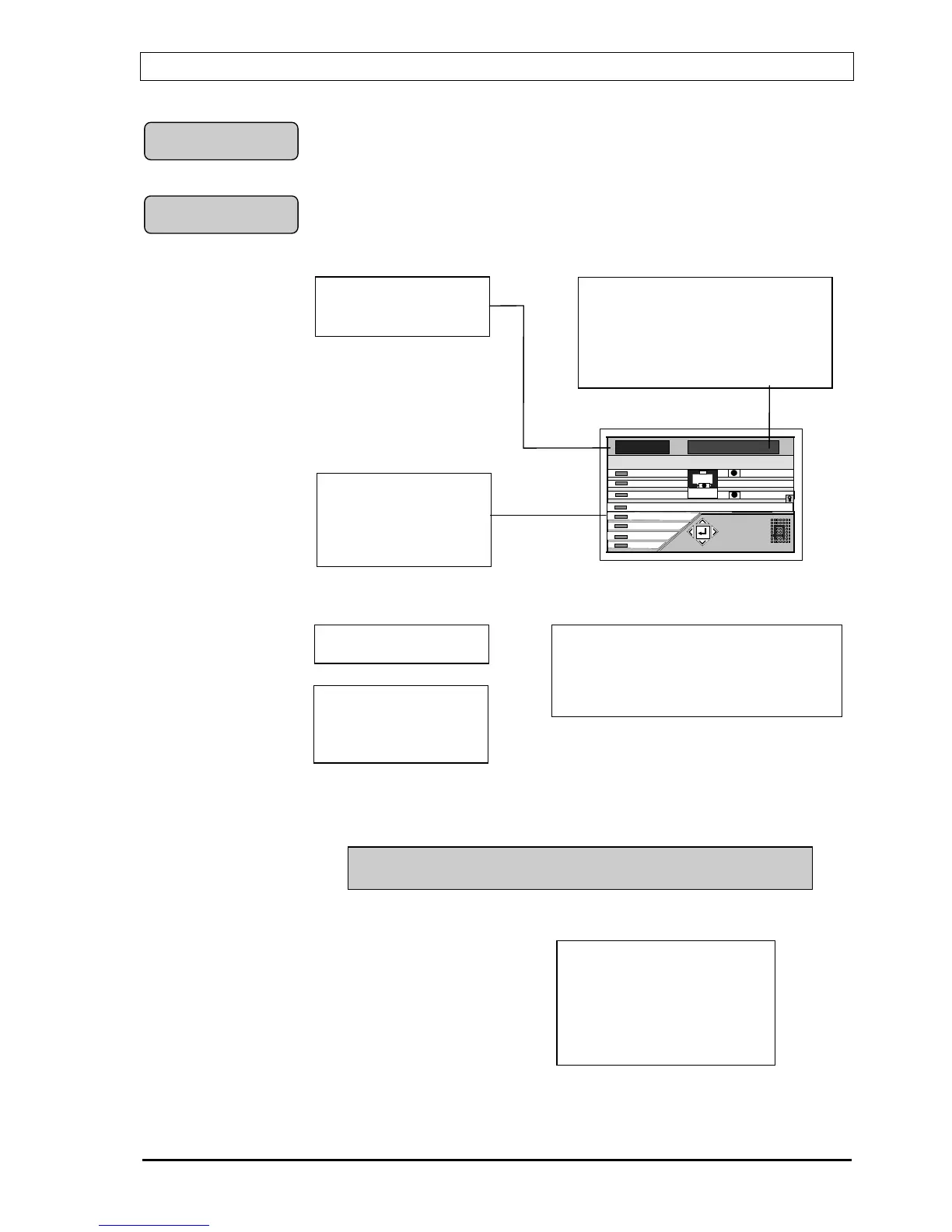

3.1 Indications on the control panel in the event of a
“FIRE” alarm:
Example of text in the display if detectors with address no. 345 has initiated
the alarm.:
AL 01 ADDRESS NO. 0345
Print out on the optional printer:
3: The text in the display indicates the
address of the detector which has initiated
the first alarm. Possible disablements
(isolations) of BMA, bells/sounders and
control outputs are indicated in the lower
line of the display.
1: The red FIRE indication
lamp lights with pulsating
light.
2: If the address initially had
given a prewarning, the
amber (yellow) Prewarning
lamp will light with steady
light.
4: The internal buzzer is
activated.
5: All sounders connected to
the fire alarm are activated.
(Control of sounder outputs
can be custom designed).
Functions activated at alarm condition:
(BMA) Alarm message to the fire-fighters.
(AUX) General control output.
(DHM) Control output for door holders.
Optional custom designed control outputs.
****FIRE****
DATE: 15.08.91 T1.05.02
AL 01 ADERESS NO.: 0345
Fire alarm
Indications
BS 100
DYFI
FIRE
MORE ALARMS
SOUNDER SILENCE
RESET
PREWARNING
FAULT
FUNCT. DISABL.
MAINS
A
utronica
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
DEVICE
(
S
)
STILL
IN ALARM COND.
