BS100 DYFI Operators handbook
P-BS100/FE - Rev.F / Doc/ 980114 48 Autronica Fire and Security AS

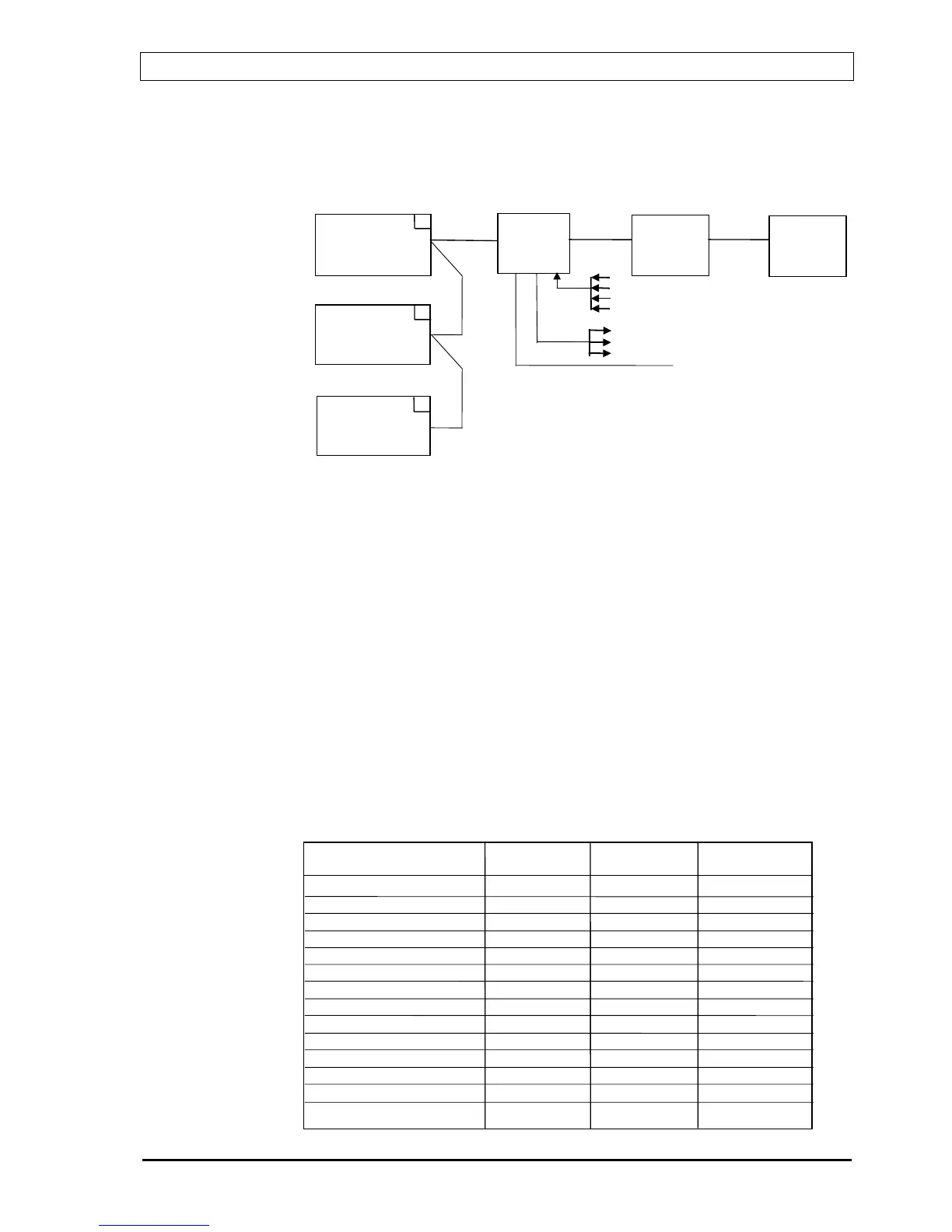

Appendix C -
Multiple BS-100/-Control panels with common
repeater units (BU-100/101/70)
There is no communication between the individual BS-100 control panel.
Each individual BS-100 control panel gives warning about its own condition
and relays this to the common BU-units.
(BU-units, common name for repeater units BU-100, BU-101 and BU-70).
- Custom designed texts within each BS-100 control panel is
presented to all BU-units.
- The EA-computer has to contain a special system program for
comm. with BU-units.
- Digital in-/outputs can be used as supplement function from EA-.
The table below shows which operator buttons. Indication lamps are fitted to
the various BU-units.
Indication lamps BU-100 BU-101 BU-70
H1 Indicator lamp X X
H2 Indicator lamp X X
H3 Indicator lamp X X
Device(s) still in alarm cond. X X
Prewarning X X X
Fault X X X
Function disabled X X
Mains X X X
More alarms X X X
Operation buttons
More alarms X X X
Sounder silence X
Sounder silence (buzzer) X X
Reset X
A
BS-100
Fire alarm control
panel
BS-100
Fire alarm control
panel
BS-100
Fire alarm control
panel
EA-
Protocol
Interfacer
Display-unit
(BU-unit)
Display-unit
(BU-unit)
A
B
C
CL
CL
CL
Programversion in EA-:
P1-EAC4/A1-22
* Program variant 1XX
(ex. 103) promises that the
program is communicating
with BU-units.
Digital inputs
Digital outputs
