Appendix D -
BS-100 master / Control unit with BS-60 slaves
When a condition (fire, fault, prewarning) is registered on a control panel
(BS-100/BS-60), the indication lamps on the panel front will light, the
outputs will be activated etc. in the normal way.
The custom texts presented in the display on both BS-100 and BS-60 have
to be manually programmed in both control panels.
There is no communication between the BS-60 control panels.
D.1 Alarm /Prewarning / Fault/ More alarms
D.1.1 Fire alarm
Fire alarm from the BS-100 control panel is only registered on the BS-100
control panel. There will be no display of info. on the BS-60 control
panel(s).
Fire alarm from a BS-60 control panel is registered on the relevant BS-60
control panel and on the BS-100 control panel.
There will be no display of info. on any other BS-60 control panel.

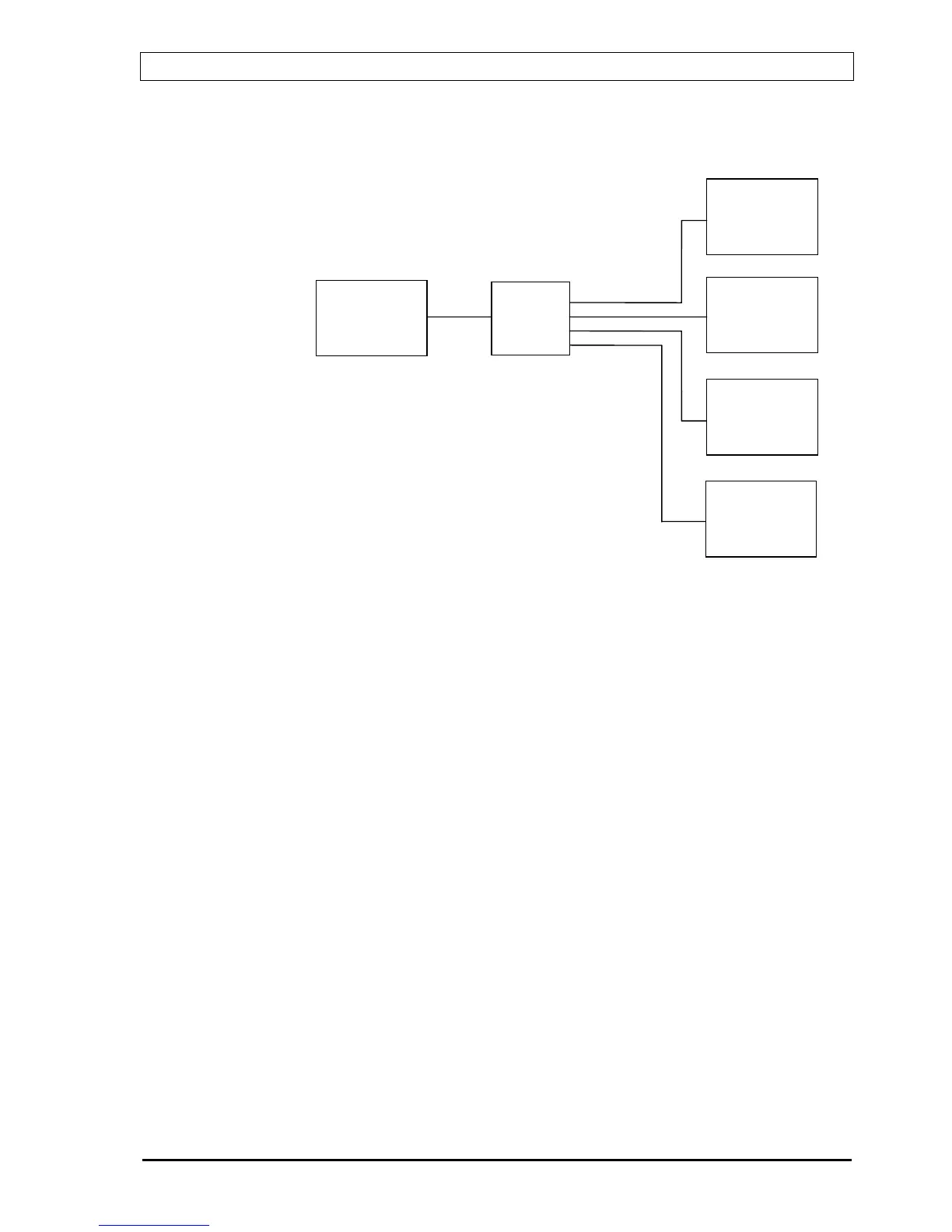

BS-60
Fire alarm
control panel
1 loop
BS-60
Fire alarm
control panel
1 loop
BS-60
Fire alarm
control panel
1 loop
BS-60
Fire alarm
control panel
1 loop
BS-100
Main fire alarm
control panel
KDL-26
Comm.
line splitter
CL
CL
CL
CL
CL
