4. More alarms
4.1 Indications on the control panel in the event of
“MORE ALARMS”:
Example of text in the display if more then two detector addresses (here we
show 3) are in alarm condition:
AL 01 ADDRESS NO: 0007
AL 03 ADDRESS NO: 0002
Print-out on the optional printer:
1: The red FIRE indication
lamp lights with pulsating
light.
2: The amber (yellow)
PREWARNING lamp lights
with pulsating light.
However, if the address
initially had given a
prewarning, the lamp will
light with steady light.
5: The internal buzzer is
activated.
6: All sounders connected to
the fire alarm are activated.
(Control of sounder outputs
can be custom designed.)
Functions activated at alarm condition:
(BMA) Alarm message to the fire-fighters.
(AUX) General control output.
(DHM) Control output for door holders.
Optinal custom designed control output.
****FIRE****
DATE: 21.10.91 T1.15.33
A
L 03 ADDRESS NO.: 0002
**** FIRE ****
DATE: 21.10.91 T1.15.28
A
L 02 ADDRESS NO: 0003
**** FIRE ****
DATE: 21.10.91 T1.15.24
A
L ADDRESS NO: 0007

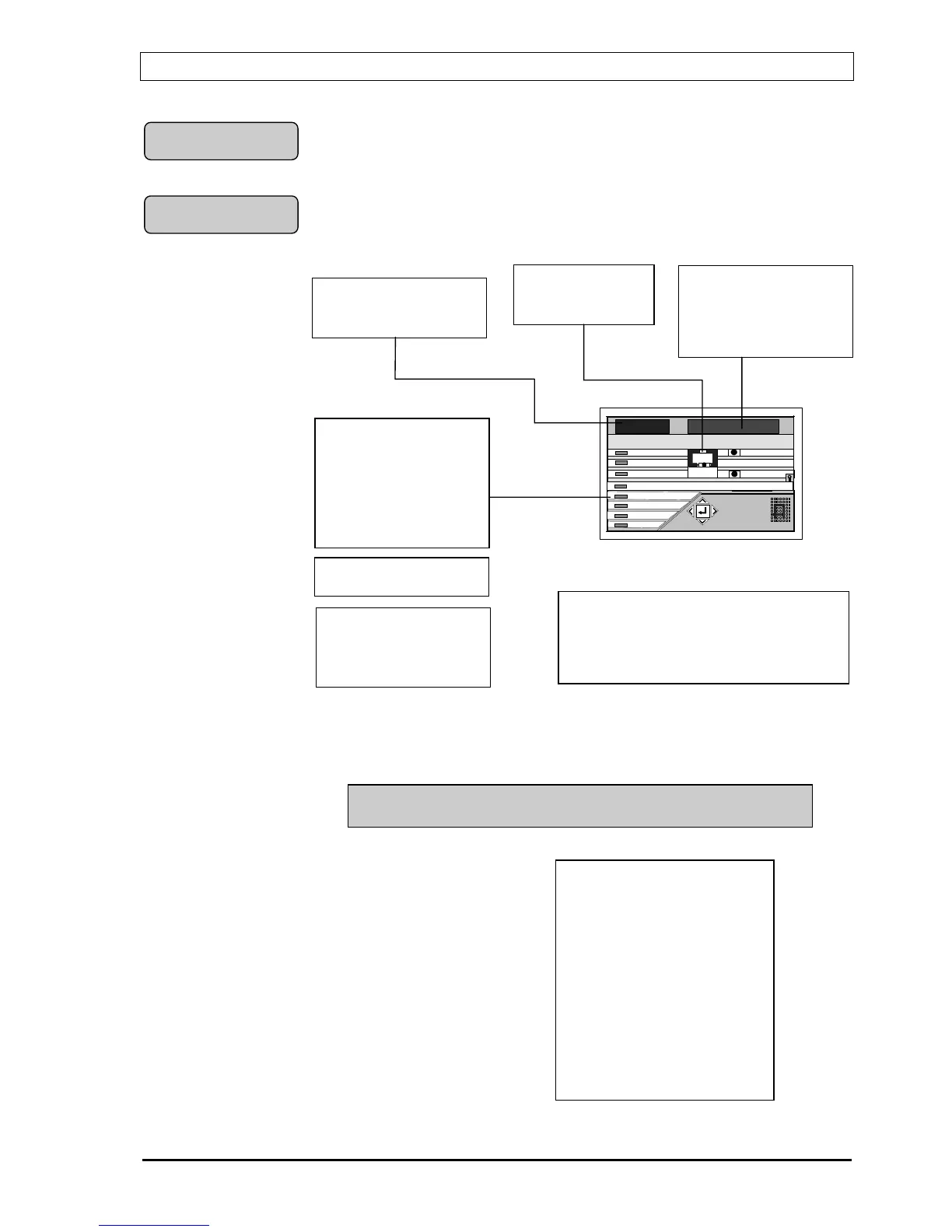

3: The red MORE
ALARMS indication
lamp lights.
4:The upper line in the
display indicates the first
address in alarm condition.
The lower indicates the last
address in alarm condition.
More alarms
Indications
BS 100
DYFI
FIRE
MORE ALARMS
SOUNDER SILENCE
RESET
PREWARNING
FAULT
FUNCT. DISABL.
MAINS
A
utronica
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
NNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
DEVICE
(
S
)
STILL
IN ALARM COND.
