AUX air conditioner service manual

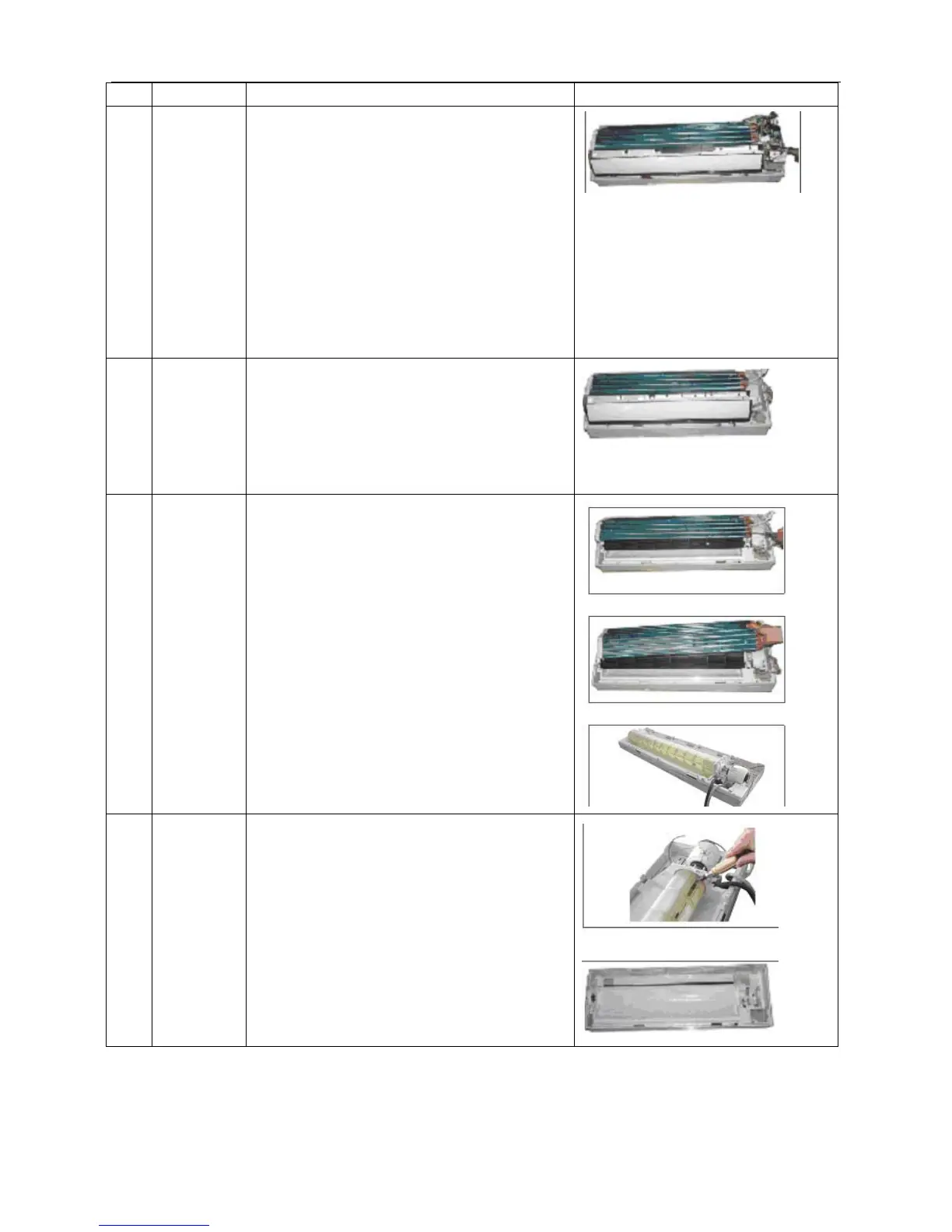

No. Part Operation Process Remark
2
Electrical
component
1) Do No. “1” firstly;
2) Pull out all tie-in connecting with PCB
and the temperature sensor, etc.;
3) Screws off the screws and bolts at the
three positions indicated in the picture.
Untie the outdoor unit’s interconnection
cord and power supply cord from the
terminal of the electrical box.
4) If the main PCB board is loosed by
chance, remove it away;
3
Water
draining
tank
1) Do No.”1” and “2” firstly, offload the
water draining soft tube;
2) Offload the water draining tank from the
chassis and take out the electrical
components.
4
Evaporator 1) Do No.”1” , “2” and “3” firstly;
2) Offload the connecting pipe;
3) Offload the tube clip at the rear;
4) Screw off the bolts at the right and left
side;
5) Lift up the evaporator, and draw it out
from the indoor unit;
5
Indoor fan
and fan
motor
1) Offload the motor from the indoor fan;
2) Offload the indoor fan from bearing;
155
