AUX air conditioner service manual

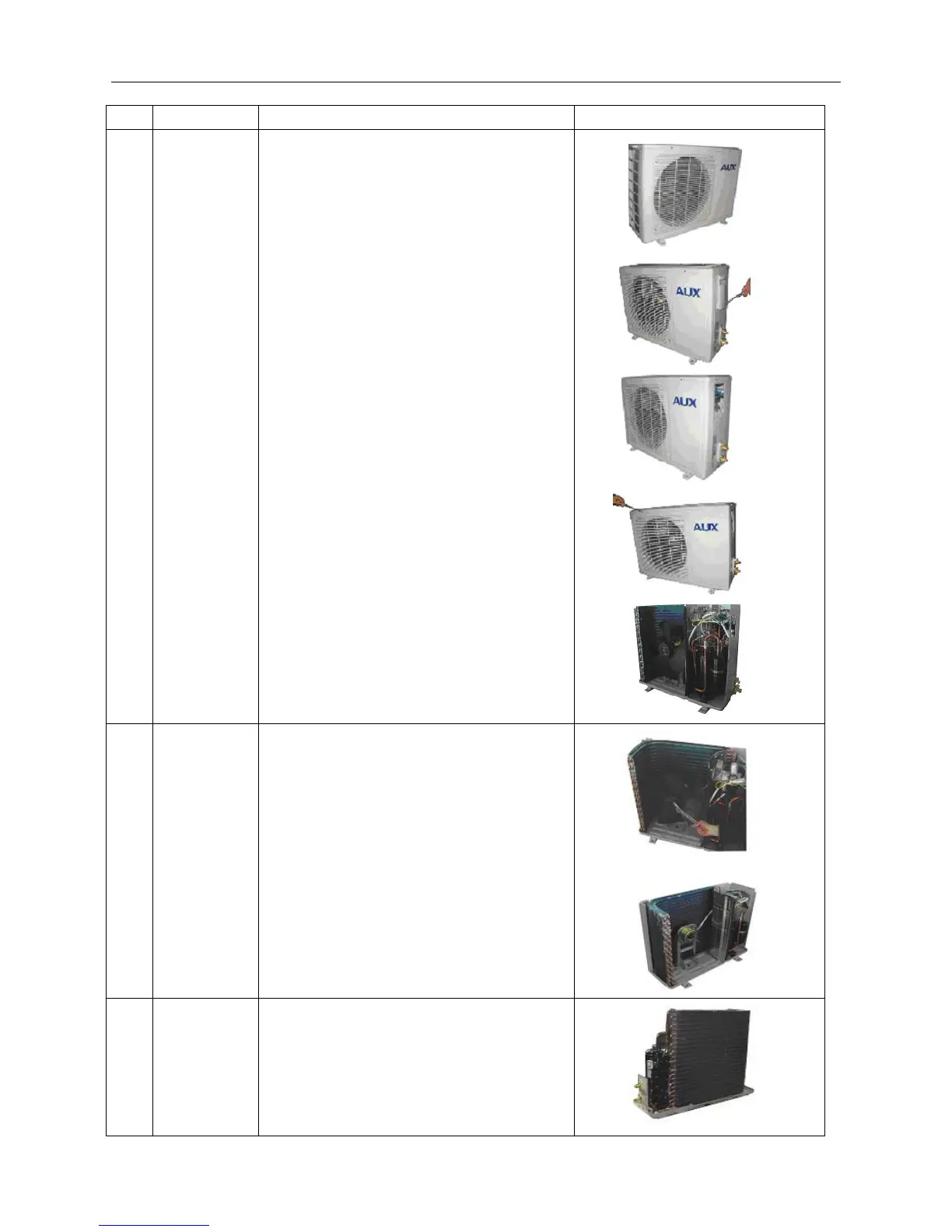

2. Outdoor unit

No. Part Operation Process Remark

1 General

operation

1) Screw off one fastening bolt from the

electrical box cover, and offload the

box cover;

2) Pull out the connecting cord from the

electrical box;

3) Screw off the five fastening bolts from

the cover board, and offload the cover

board;

Screw the six fastening bolts from the

front panel, and offload the front

panel;

4) Screw off the fastening bolts from the

electrical assembly panel;

5) Screw off the eight fastening bolts and

offload the outer frame;

2 Fan motor 1) Do No.”1” firstly;

2) Screw off the fastening nut(Rotate in

clockwise direction);

3) Offload the outdoor fan;

4) Screw off the four fastening bolts from

the electrical motor and offload the

electrical motor;

5) Screw off the two fastening bolts and

offload the bracket;

3 Condenser 1) Do “1”,”2” firstly;

2) Screw off the fastening bolts at the left

and right sides;

3) weld off the inlet and outlet tubes;

4) Offload the condenser;

156
