Avery Weigh-Tronix evolution Series User Manual

Model E1070 Indicator User Instructions 65
5.10 Peak Weighing
5.10 Peak Weighing
This section applies if your indicator has the Peak application active.
Press the MODE key to scroll
through the activated applications.
The name of the active application
will be briefly displayed or, press
and hold the MODE key for 3-5
seconds to see the name of the
currently active application.

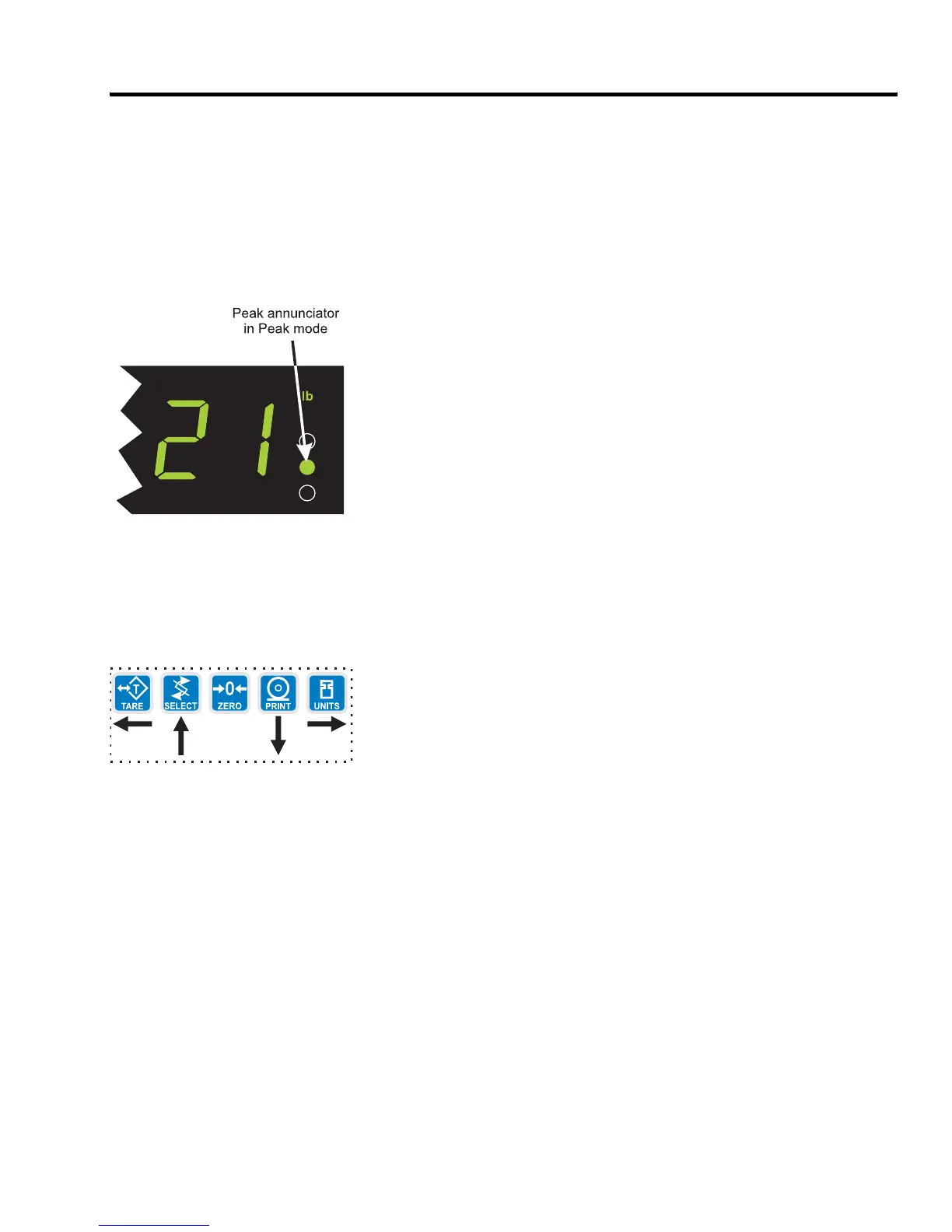

Only the highest weight applied to the scale is displayed in the Peak
application. As a reminder that you are in peak mode, a green annunciator
is lit to the right of the weight display.
1. Add weight to the scale…
Weight is displayed.
2. Remove weight…
Peak weight is displayed.
3. To clear the peak value, be sure scale is empty and press the F1
key…
0 is displayed.
4. Repeat steps 1-3.
5. Press the SELECT key to cycle through Gross, Tare, Net and Peak.
Using Outputs If enabled, you can use the output function while in the peak application.
Outputs are enabled in a password protected menu. Contact your local
Avery Weigh-Tronix supplier or distributor for assistance. Follow these
steps to set up to three outputs:
You can press the SELECT key or
the ESC key to abort the process in
step 3.
Output operation in the peak
application:
Below Configured Value:
Outputs are ON
Annunciators are OFF
TIU3 Relays are ON
Above Configured Value:
Outputs are OFF
Annunciators are ON
TIU3 Relays are OFF
1. With the indicator powered up, press and hold the SELECT key until…
OP1 is displayed.
2. Press the PRINT key…
The current value for OP1 is displayed.
3a). Press ENTER to accept this value
OR
3b).Key in a value and press the ENTER key.
OP1 is displayed.
4. Scroll through all three outputs by using the left and right arrow keys.
5. Repeat steps 2 and 3a or 3b for each output.
6. Press ESC key to exit the outputs setup…
7. As you apply weight to the scale, output one will activate above its
setpoint and deactivate below its setpoint. The same is true for the
other two setpoints. When activated each output’s annunciator will
light on the display.
8. As weight is removed the displayed weight will remain unchanged
due to being in peak mode but the OP annunciators will go out as
each output is reached.
