Between the panels and the xed parts close to each other
Dependingonthecongurationofthesitewherethemotorisedgateisinstalled,theremaybeconnement
areasbetweenthepanelsinopenpositionandthexedpartsclosetothem.Toremovetheseareas,itis
mandatorytoleaveasafedistanceof500mmbetweenthexedpartandthemovingpartsofthemotorised
gate.

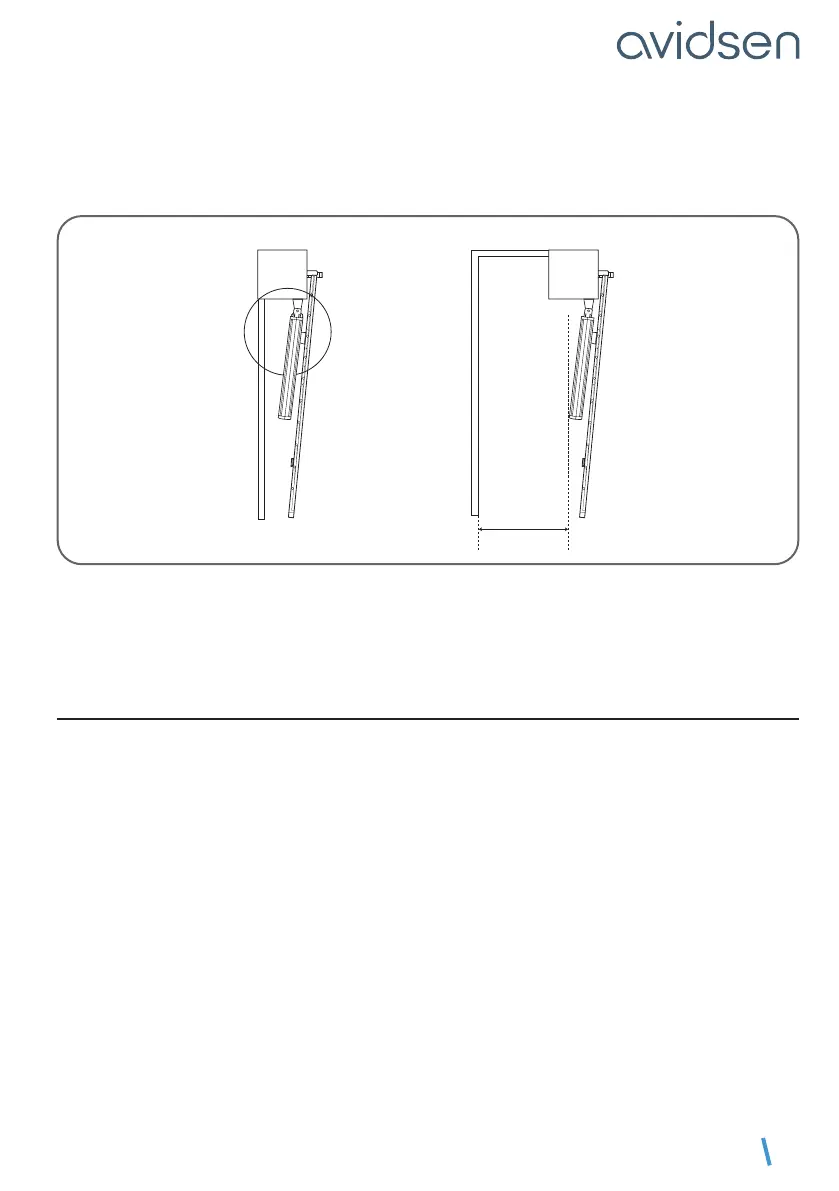

hazard
view from above
solution
post
connement
area
500mm
minimum
post
PREVENTING OTHER HAZARDS
The body of a switch with no lock must be located in direct view of the driven part but away from moving
parts. Unless it operates with a key, it must be installed at a minimum height of 1.5m and must not be
accessible to the public.
After installation, ensure that the components of the gate do not hang above a footpath or public access
road.
2 - INSTALLING ACTUATORS
Themotordrivemustbeinstalledbyqualiedpersonnel,incompliancewithalltheindicationsprovidedin
the “General warnings.”
Before starting installation, ensure that:
• Hazards can be minimised by following the recommendations under the Chapter “Hazard analysis.”
• Thedesiredusehasbeencorrectlydened.
• ThegatecomplieswiththespecicationsprovidedintheChapter“Specicationsofthegatetomotorise.”
The different stages of installation must be followed in order and in compliance with the indications given.
• Stops (not supplied)
This gate motor drive is a self-locking motorisation system. Your two-panel gate must be equipped with a
central stop and side stops (not included).
The (central and side) stops must stop the gate without locking it. In other words, any mechanical lock (or
latch) and any tilting shoe base or stopper must be removed.
