Avidsen V250 - Backup Battery (Optional Ref 580293); Control Parts (Optional); Solar Power Kit (Optional Ref. 114373)

EN21

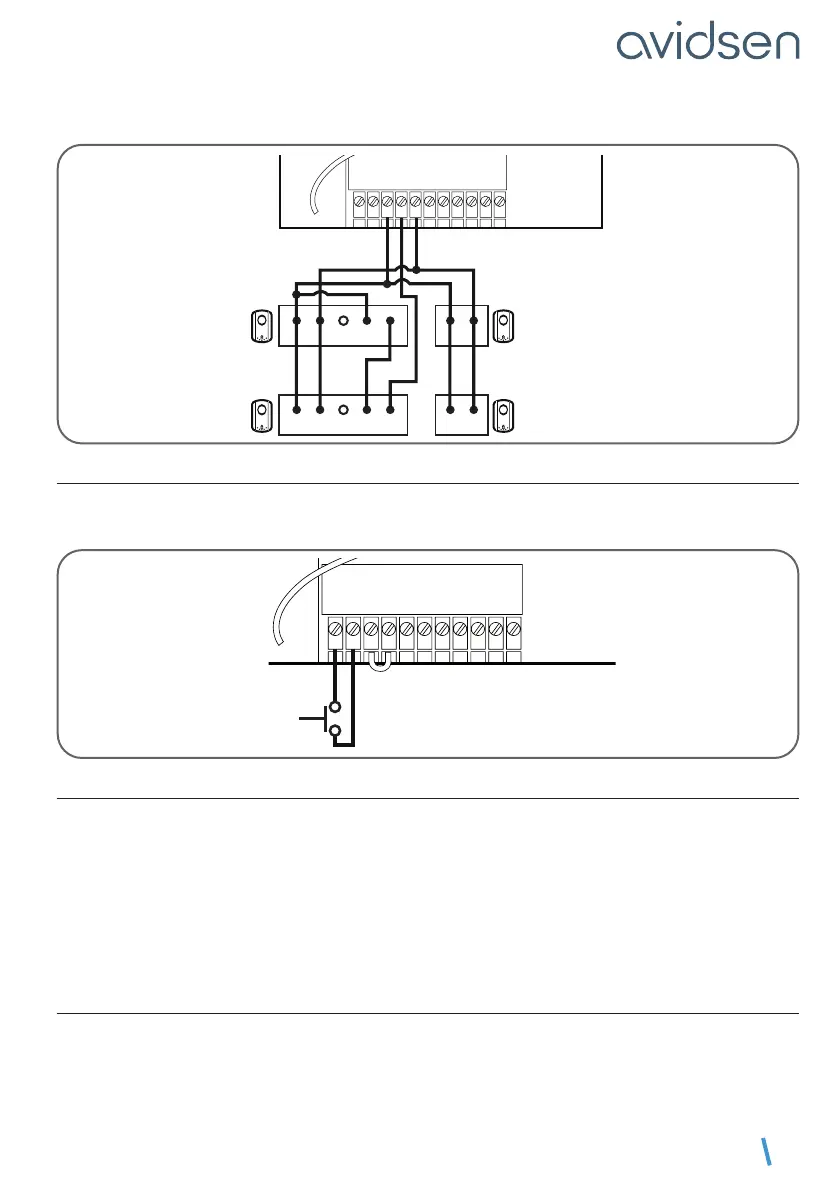

2 sets of photocells
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
~- ~+ ~+~-NO COMNC
~- ~+ ~+~-NO COMNC
Photocell RX1
Photocell RX2
Photocell TX1
Photocell TX2
6.5 - CONTROL PARTS (OPTIONAL)
Note:
These control parts must be normally open dry contacts.
+
-
BATTRANS
GND GND PHO +24V M1- M2- M1+ M2+ warn- warn+ 2B
push button, intercom
output.
6.6 - BACKUP BATTERY (OPTIONAL REF 580293)
The backup battery is useful in case the power is cut and it enables you to operate the motor drive for
several days.
• Cut off the 230V power supply (safety switch to the OFF position) and connect the battery to the BAT
terminal.
• Put the 230V power supply back on (safety switch to the ON position).
• The battery will load in 24 hours approximately. Beyond this time, test the gate’s operation (1 opening +
1 closing) after having switched the motor drive off (safety switch in the OFF position).
• After this test, reconnect the power supply (safety switch to the ON position). The battery will take over
if the power is cut.
6.7 - SOLAR POWER KIT (OPTIONAL REF. 114373)
Refer to the solar kit instructions.
