Avidsen V250 - 5 - INSTALLING THE SET OF PHOTOCELLS (optional)

EN 14
C - INSTALLATION
Important: The two marks should be at the middle of the rigid part of the gate so that the actuator is
completely horizontal.
• Drill through the gate from side to side, respecting the locations marked above.

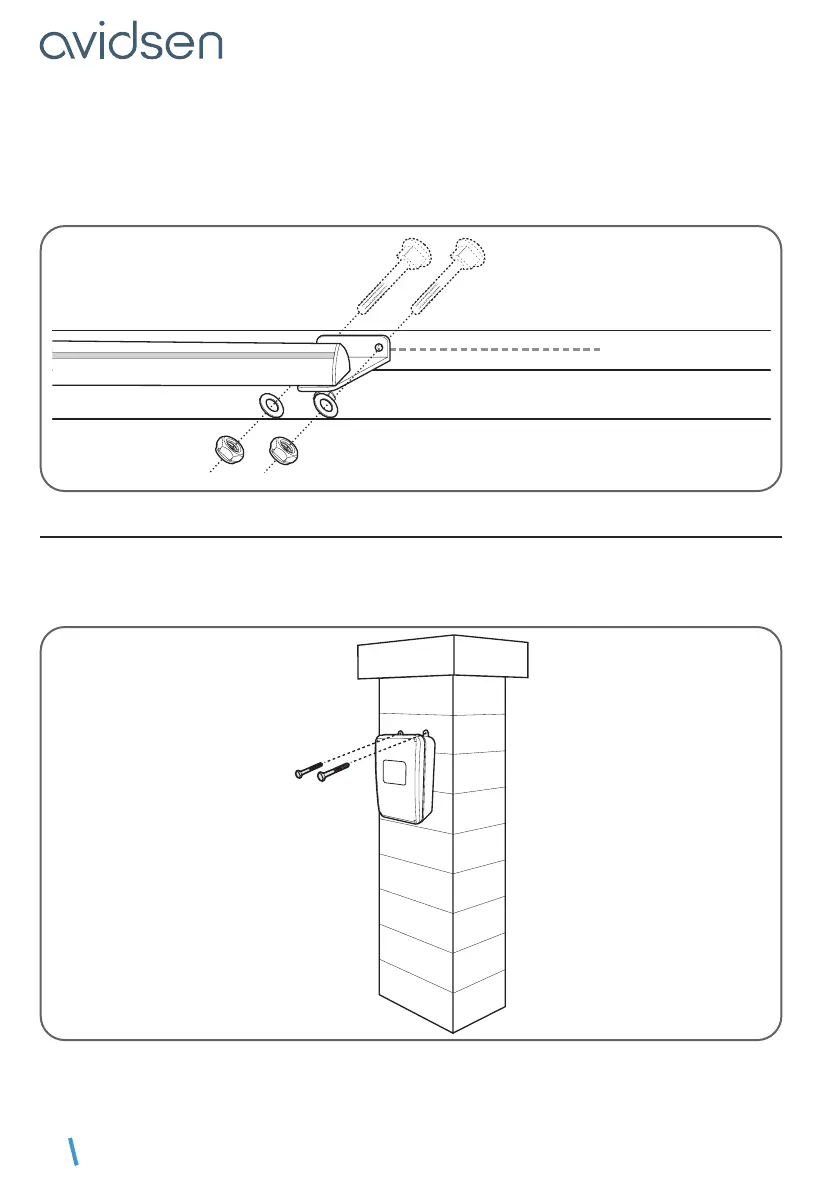

• Attach the gate mounting bracket to the gate with M8 round head screws square under the head, the
lengthmustbeadaptedto thethicknessofthegate, atwashersand M8locknuts,asshownin the
followinggure.
3 - INSTALLING THE SWITCHGEAR
The switchgear must be mounted to the post where the 230Vac power comes from.
• To ensure proper operation of the motorisation, the length of the actuator cables must not exceed 8 m per
actuator. Therefore, the switchgear must be mounted less than 6 m from each actuator.
•Usetwoscrewstoinstallandmounttheswitchgearinthedenedlocation.
