C - INSTALLATION
30cm min
60cm max

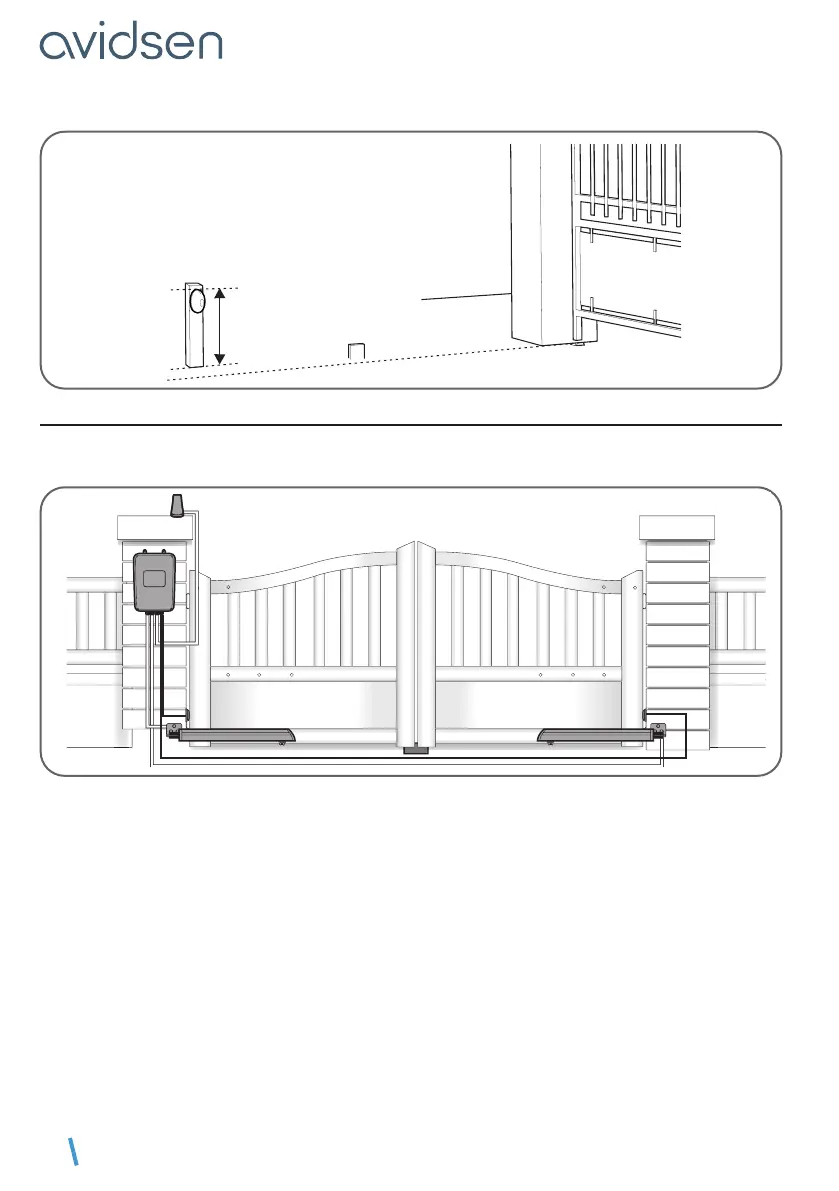

6 - CONNECTIONS
• The cable run between must comply with applicable standards (NFC 15-100).
• Either the cable is 80cm deep with red warning mesh, or the cable is run through a sheath.
Safety instructions
- All electrical connections must be performed with the power switched off (safety switch in OFF position).
-Theseconnectionsmustbemadebyaqualiedelectrician.
- It is imperative and mandatory to use the cable gland provided to pass and attach the 230V power cable
in the switchgear. Once the cable has passed through the cable gland, tighten the outer nut to secure the
cable to prevent it from being torn off.
Never drill into the electronic box (whether to pass the cable or attach it to the post). This would compromise
the seal and void the warranty.
• Remove the protective cover from the transformer.
