EN17
45mm
20mm
Outer side of the property

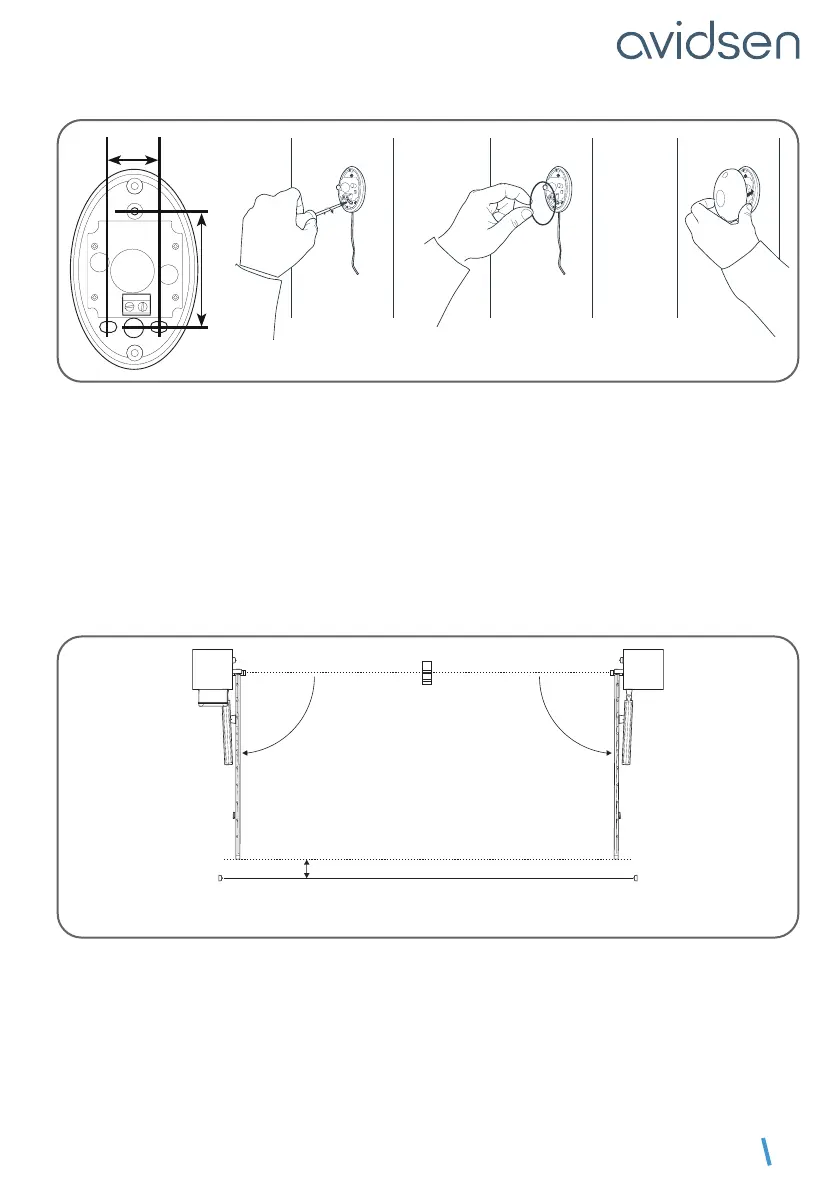

2 set of photocells
For use when the gate is not visible. You must install a second set of photocells to prevent the gate from
opening when an item (car, person, etc.) is behind the gate.
• The photocells must be perfectly aligned and parallel to each other.
• The reception photocells (RX indicated at the back) must be installed at the same side of the gate as the
electronic control box.
• The photocells must be installed on the inner side of the property. The distance between the main edges
of the gate in an open position at 90° and the photocells must be between 10cm and 15cm maximum.
• The mounts used to secure the photocells must be correctly secured to the ground and precisely aligned.
• The photocells must be placed exactly at the same height from the ground, and the height must be
between 30cm and 60cm.
Inner side of the property
View from above
90°
TX1
TX2
RX1
RX2
90°
10cm min/15cm max
Pair 1
Pair 2
C - INSTALLATION
