Avidsen V250 - 6 - CONNECTIONS

EN 16
C - INSTALLATION

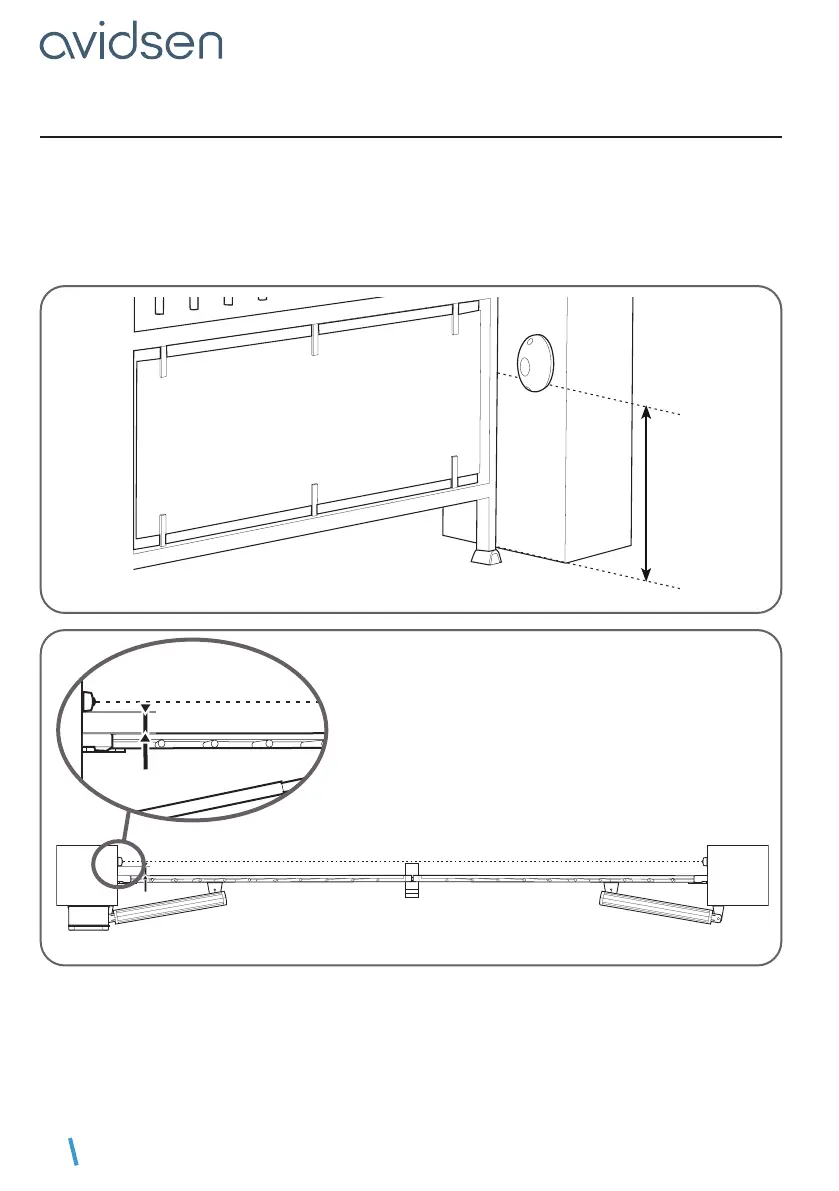

5 - ATTACHING THE SET OF PHOTOCELLS (OPTIONAL)
1 set of photocells
• Install the photocell receptor (RX is inscribed on back) of the same side of the gate as the switchgear. The
surfaceofthepostsmustbeperfectlyatinordertoproperlyaligntheinfraredbeamofthephotocells.
• Place the photocells at exactly the same height from the ground; they must be perfectly aligned and
parallel to each other. The distance between the outer side of the gate and the photocells must be
between 10cm and 15cm.
• Mount the photocells on the posts.
Outer side of the property
30cm min
60cm max
view from above
Inner side of the property
perfect alignment
10cm min
15cm max
