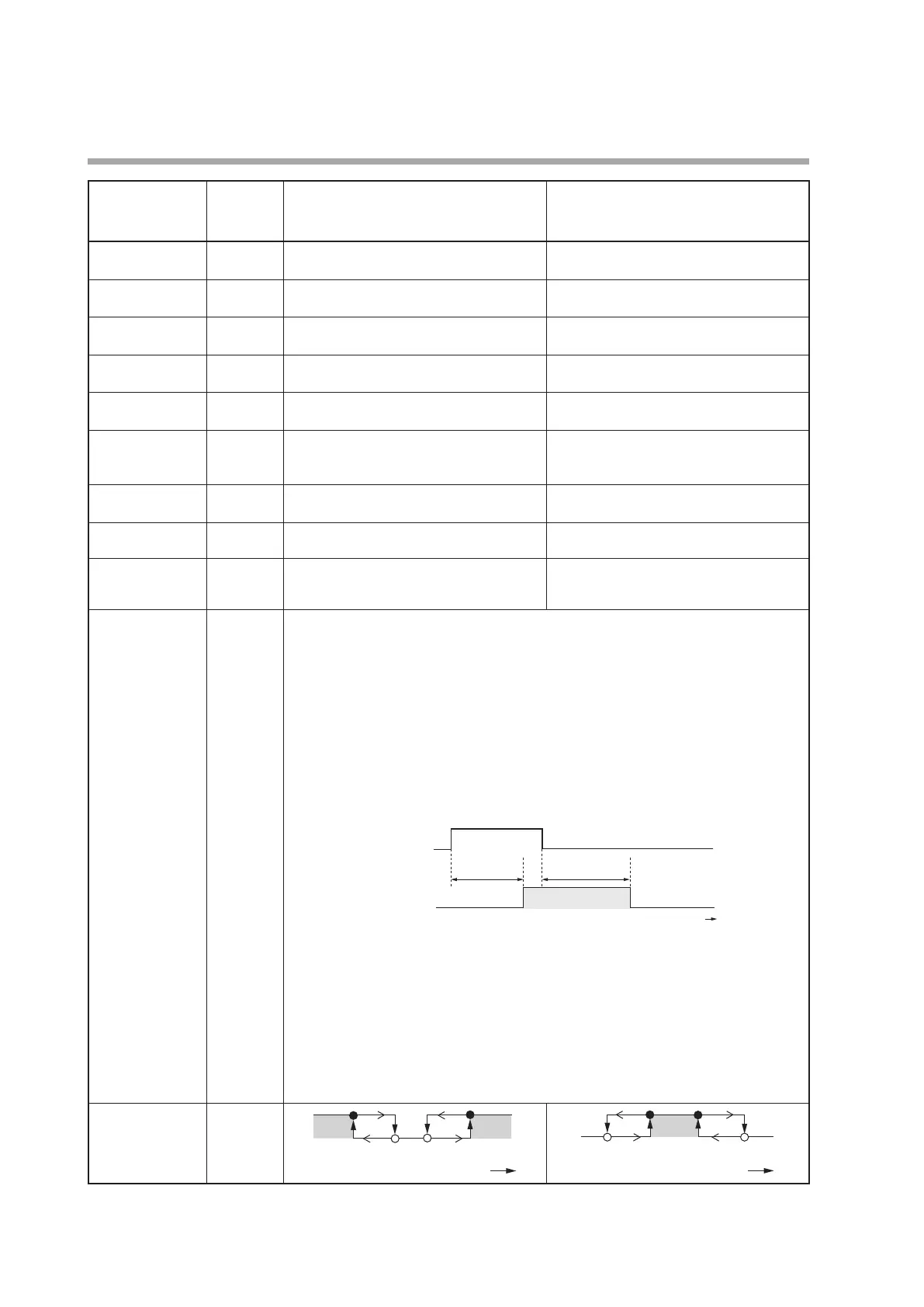

Azbil C35 Series User Manual

5-64
Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION
Operation type Set value of
operation
type
Direct action Reverse action
Alarm
(status)
23
ON if alarm occurs (alarm code
AL0

1
to
AL99
). OFF in other cases.
OFF if alarm occurs (alarm code
AL0

1
to
AL99
).ON in other cases.
READY
(status)
24 ON in the READY mode.
OFF in the RUN mode.
OFF in the READY mode.
ON in the RUN mode.
MANUAL
(status)
25 ON in the MANUAL mode.
OFF in the AUTO mode.
OFF in the MANUAL mode.
ON in the AUTO mode.
RSP
(status)
26 ON in the RSP mode.
OFF in the LSP mode.
OFF in the RSP mode.
ON in the LSP mode.
During AT
(Status)
27 ON when AT is executed.
OFF when AT is stopped.
OFF when AT is executed.
ON when AT is stopped.
During SP ramp 28 ON during SP ramp.
OFF when SP ramp is not performed or is
completed.
OFF during SP ramp.
ON when SP ramp is not performed or is
completed.
Control action
(status)
29 ON during direct action (cooling).
OFF during reverse action (heating).
OFF during direct action (cooling).
ON during reverse action (heating).
ST setting standby
(status)
30 Invalid in this unit. Always OFF. Invalid in this unit. Always ON.
During estimated
position control
(status)
31 ON during estimated position control.
OFF when not estimated.
OFF during estimated position control.
ON when not estimated.
Timer
(status)
32 The direct and reverse action settings are disabled for the timer event.
When using the timer event, it is necessary to set the operation type of the DI assignment
to "Timer Start/Stop". Additionally, when setting the event channel designation of the DI
assignment, multiple timer events are controlled from individual internal contacts (DI).

Setting items
• ON delay time: A period of time necessary for the event change from OFF to ON after
DI has been changed from OFF to ON.
• OFF delay time: A period of time necessary for the event change from ON to OFF after
DI has been changed from ON to OFF.

Operation specifications
• The event is turned ON when DI ON continues for ON delay time or longer.
• The event is turned OFF when DI OFF continues for OFF delay time.
• In other cases, the current status is continued.
Time
ON
Internal event
ON
DI
OFF delayON delay

CAUTION
When setting the ON delay and OFF delay, it is necessary to put in "High function
configuration".
The default settings of the ON delay and OFF delay before shipment are 0.0s.
The default setting of the event channel designation of the DI assignment before
shipment is "0". In this case, the timer event start/stop can be set for all internal events
from one internal contact (DI).
Additionally, as one or more event channel designation is set, the timer event start/
stop can be set for one internal event specified by one internal contact (DI).
However, when setting the event channel of the DI assignment, it is necessary to put
in "High function configuration".
High and low
limits of MFB value
33
Main setting( * 1) Sub setting( * 1)
MFB
ON
HYS
ONHYS
Main setting( * 1) Sub setting( * 1)
MFB
ONHYS
HYS
*1 If the setting is made so that the main setting is greater than the sub setting, the operation is performed with the main
setting swapped for the sub setting automatically.
