Azbil C35 Series User Manual

5-101
Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION
• The lighting conditions are satisfied when the status set as conditions is ON
(example: Internal event 1) or the status set as conditions is met (example:
MANUAL). Therefore, if the lighting conditions are set at “0”, the conditions are
always not satisfied. If the lighting conditions are set at “1”, the conditions are
always satisfied.
• When the lighting conditions having the top priority are satisfied, the operation
enters the lighting status having the top priority.
• When the lighting conditions having the top priority are not satisfied and the
lighting conditions having the second priority are satisfied, the operation enters
the lighting status having the second priority.
• When the lighting conditions having the top and second priorities are not
satisfied and the lighting conditions having the third priority are satisfied, the
operation enters the lighting status having the third priority.
• When the lighting conditions having the top to third priorities are not satisfied,
the Multi Status (MS) display becomes off.

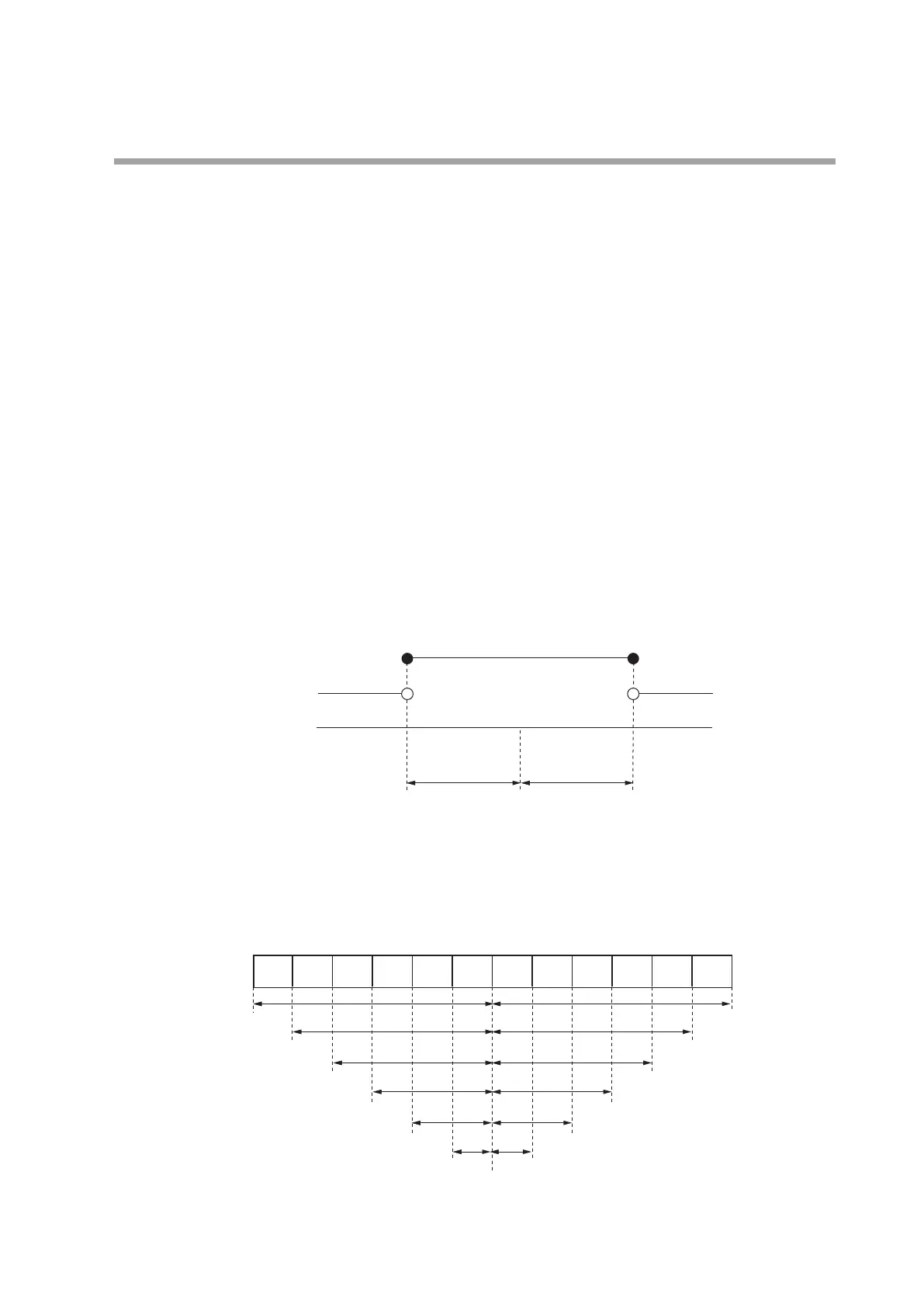

• When the lighting status is set at “7” (deviation OK), the Multi Status (MS)
display is lit or off as shown in the following Figure:
If the deviation range of the Multi Status (MS) display is set at “0U”, the Multi
Status (MS) display is lit only when the PV display value equals SP (PV=SP).
Deviation OK lit/o
O O
PV
Lit
SP
Deviation range of
Multi Status (MS)
display
Deviation range of
Multi Status (MS)
display
• When the lighting status is set at “8” (deviation graph), the Multi Status (MS)
display is lit as shown in the following Figure:
The deviation range of the Multi Status (MS) display is set to “1U” or more. If
this range is set at “0U”, the Multi Status (MS) display becomes off.
Lighting range of deviation graph (Ratio of deviation (PV-SP) to Multi Status (MS) display deviation range)
+100.1 % or more
+80.1 to +100.0 %
+60.1 to +80.0 %
+40.1 to +60.0 %
+20.1 to +40.0 %
+0.1 to +20.0 %
-100.0 % or less
-99.9 to -80.0 %
-79.9 to -60.0 %
-59.9 to -40.0 %
-39.9 to -20.0 %
-19.9 to 0.0 %
