Azbil C35 Series User Manual

5-13

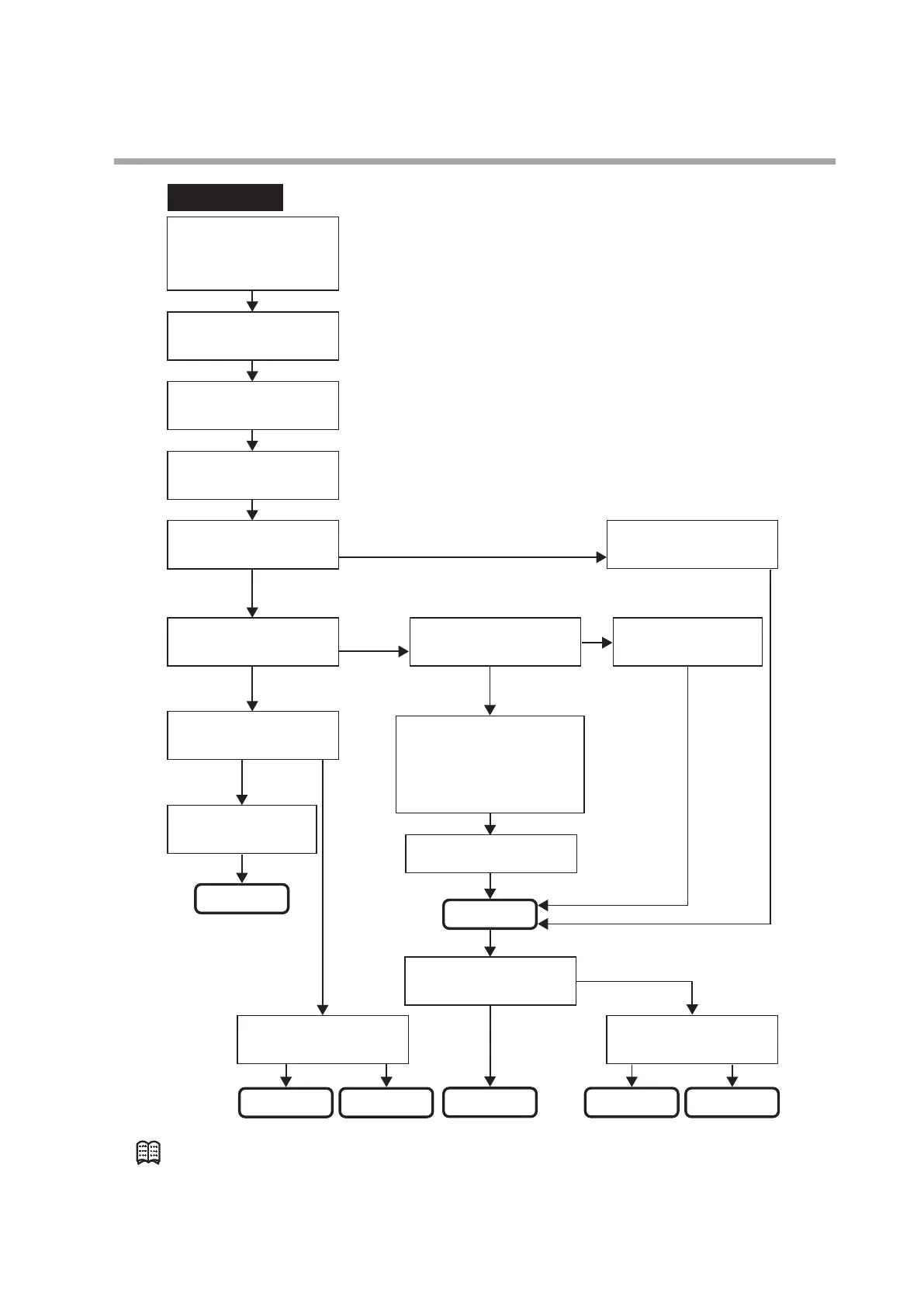

Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION
MV1 = MV
Fixed PID
Control method: Fixed PID
(Setting: Parameter CtrL
must be set at "1".)
READY mode
AUTO mode
MANUAL mode
RUN mode
SP lag overshoot suppression
(Setting: Extended tuning SP.LG)
RationaLOOP high precision
control logic
(Setting: Extended tuning Ctr.A)
Just-FiTTER overshoot suppression
(Setting: Extended tuning
JF.Ov, JF.bd)
Bumpless transfer/Preset selection
(Setting: Setup C 19, C20)
Branching according to
AUTO/MANUAL mode
Branching according to
RUN/READY mode
MV
MV1 = MV
Branching according to
output operation at PV alarm
MV rate-of-change limit
(Setting: Parameter OUtL)
(Setting: Setup C 15, C 16)
Output at PV alarm
(Setting: Setup C 16)
Branching according to
Heat/Cool control
(Setting: Setup C26)
C26 = 0 C26 = 1
Branching according to
Heat/Cool control
(Setting: Setup C26)
MV1 = Heat MV
MV2 = Cool MV
MV1 = Heat MV MV2 = Cool MV
Output at READY
(Setting: Setup C 1 7, C 18)
Heat/Cool control
(Setting: Setup
C28, C29)
Output at READY
(Setting: Setup C 1 7)
PV is correct or
C15 = 0:
C26 = 0
C26 = 1
PV is faulty and C
15 = 1:
PID control
(Setting: P- 1 to P-8, I - 1 to I -8, d- 1
to d-8, rE- 1 to rE-8, OL- 1 to OL-8,
OH- 1 to OH-8, P- 1C to P-8C, I - 1C to
I-8C, d- 1C to d-8C, OL- 1C to OL-8C,
OH- 1C to OH-8C)
Note
When the control output type is R1 (motor drive relay output), the Heat/Cool
control is not enabled.
