Chapter 3 Starting and Stopping this Device
(3) Calculation Example Using the JTC Model
Calculation of the setting range is described below.
In this calculation, density and distance are represented by the following symbols. In addition,
density is assumed to be constant during liquid level measurement.
ρ: Specific gravity of liquid in tank
l: Distance between the 100% liquid level and the 0% liquid level (measurement range)
h: Distance between the 0% liquid level and the high pressure side output port

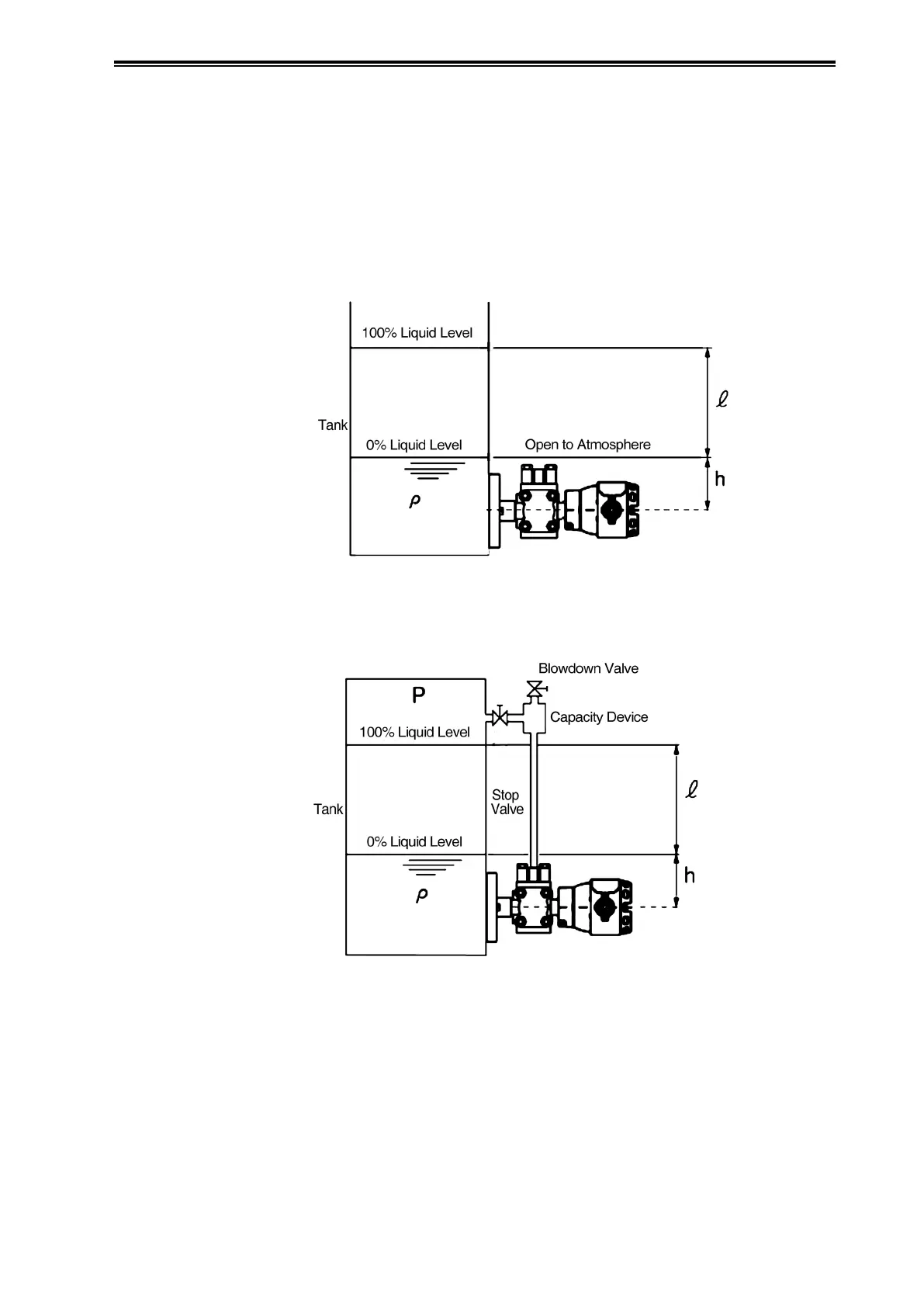

Figure 3-14. Open Tank
Figure 3-15. Sealed Tank (Dry Leg)
