Appendix A Maintenance and Troubleshooting of this Device

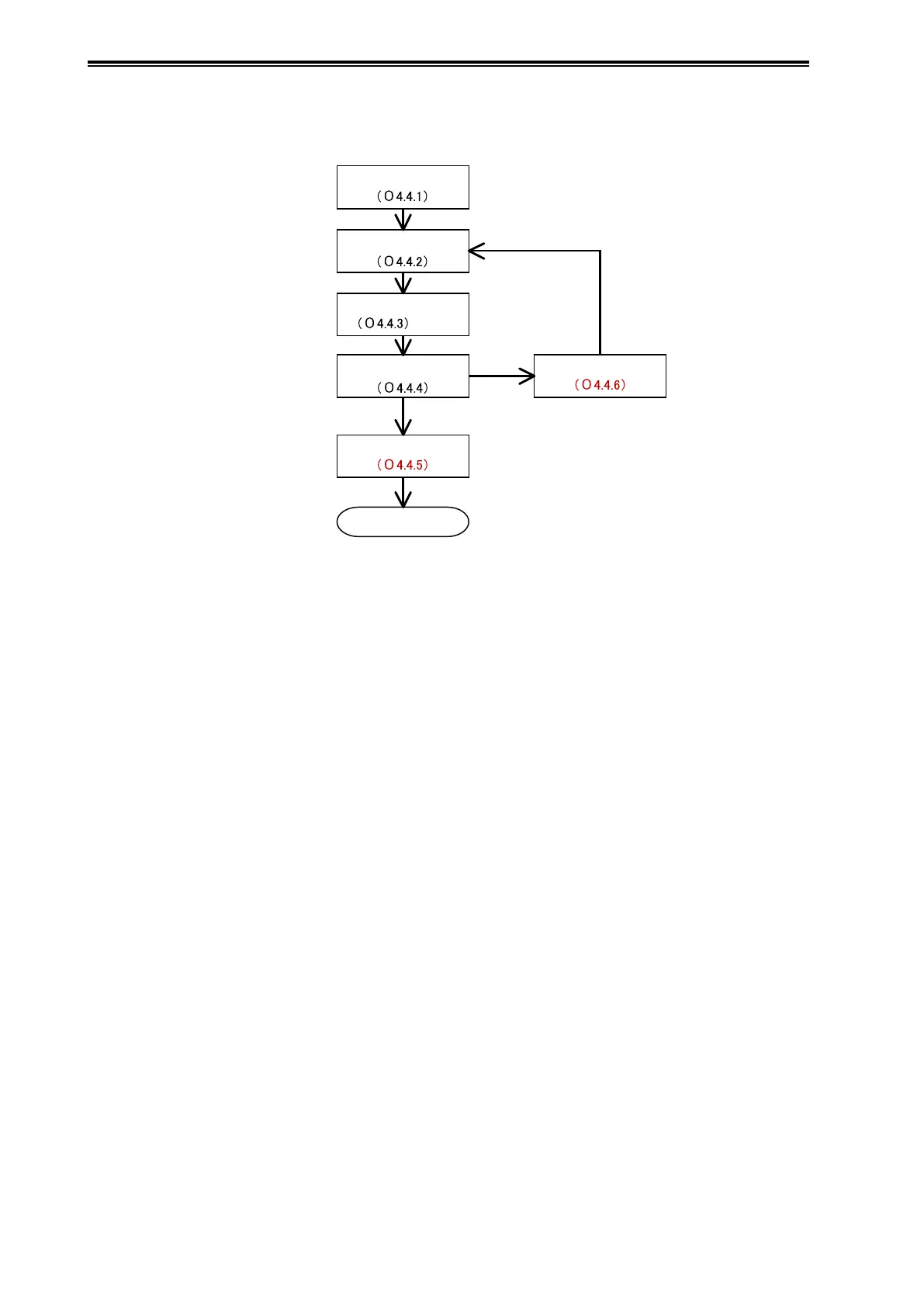

A4-3 Parameter configuration procedures
To diagnose clogging in the connecting pipe using the pressure frequency index, parameters must
be set. Use the configuration procedure below.
Preparation
Acquisition of index values
under normal conditions
Clogging simulation test
Judge the possibility
of diagnosis
Setting of the alarm
Start the diagnosis
If not possible
Possible
Note:
Parameter adjustment
Preparation (see section A4-4-1): Initialize the parameters in preparation for obtaining the index
values.
Acquisition of index values under normal conditions (see section A4-4-2): Obtain index values
under normal conditions, and also the maximum and minimum index values.
Clogging simulation test (see section A4-4-3): Operate the valve of the connecting pipe to simulate
a clog and obtain index values.
Note:
If you cannot conduct the clogging simulation test, skip sections A4-4-3 to A4-4-6, and then
read section A4-4-7.
Judging the possibility of diagnosis (see section A4-4-4): Determine whether or not you can
differentiate between a normal state and a simulated clogged state by comparing their index values.
Setting the alarm (see section A4-4-5): If diagnosis is judged to be possible, adjust the parameters
shown below to set an alarm based on the collected index values. When the configuration process
is complete, the diagnosis can begin.
Press Freq Index Alarm Use
Press Freq Index Low Limit
Parameter adjustment (see section A4-4-6): If distinguishing the two states is not possible, analyze
the cause, adjust the parameters shown below, and then return to “Acquisition of index values
under normal conditions.”
Press Freq Index Sensor Selection
Press Freq Filter Constant
Press Freq Calc PV High Limit
Press Freq Calc PV Low Limit
