2-2-6 Fit-Tank Attachment (JTE Model)
Fit-Tank is a mounting kit (adapters, tube clamps) for remote seal type transmitters. It enables
tank level instrumentation to be carried out easily. Using Fit-Tank alleviates the need to attach
the transmitter body to a stanchion. In addition, Azbil's proprietary sealed liquid temperature
compensation feature and capillary tubes, which are included standard with the remote seal type
transmitter, can be wired in a methodical manner, and satisfactory temperature characteristics can
be attained.
Tank
Protective Pipe
Transmitter Side
Flange
Capillary Tubes
Tube Clamps
Adapter
Transmitter Side
Flange

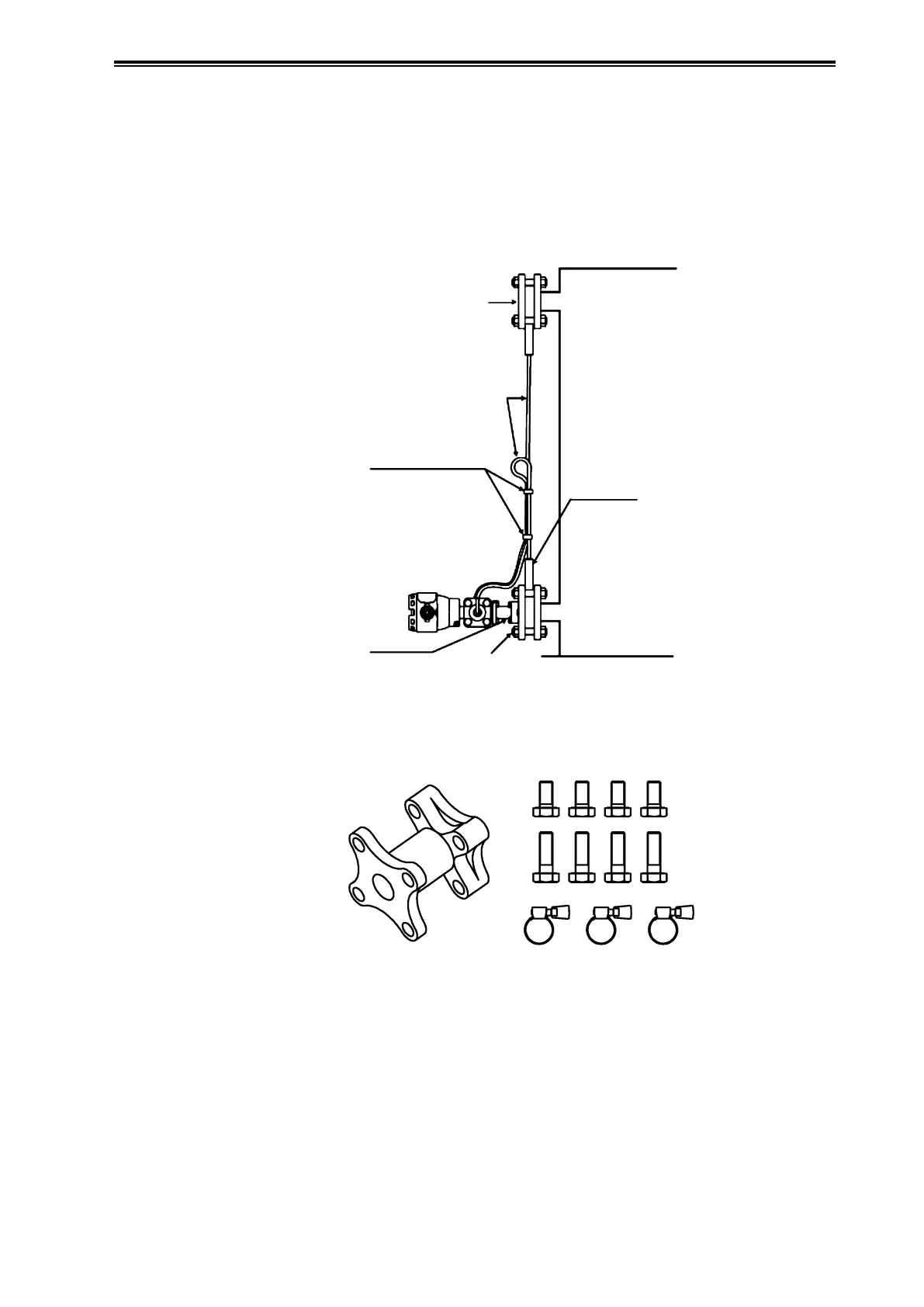

Figure 2-16. Fit-Tank Installation Example
Figure 2-17. Fit-Tank Attachment Kit
(1) Compatible Models
JTE929S general-purpose sealed liquid
Cannot be combined with high-temperature model, high-temperature vacuum model, or high-
temperature high-vacuum model.
