Azbil Corporation Operation using the data setting device
Model MTG11A/18A, MTG11B/18B, MTG14C 6-53
6
Pressing the key changes the
numerical value to the right of
DIAMETER= shown on the screen
from 2.5 mm up to 1100 mm. Range
of two wired magnetic flowmeter
detector diameter is 2.5 to 200 mm.
7
Press the key.
Result:

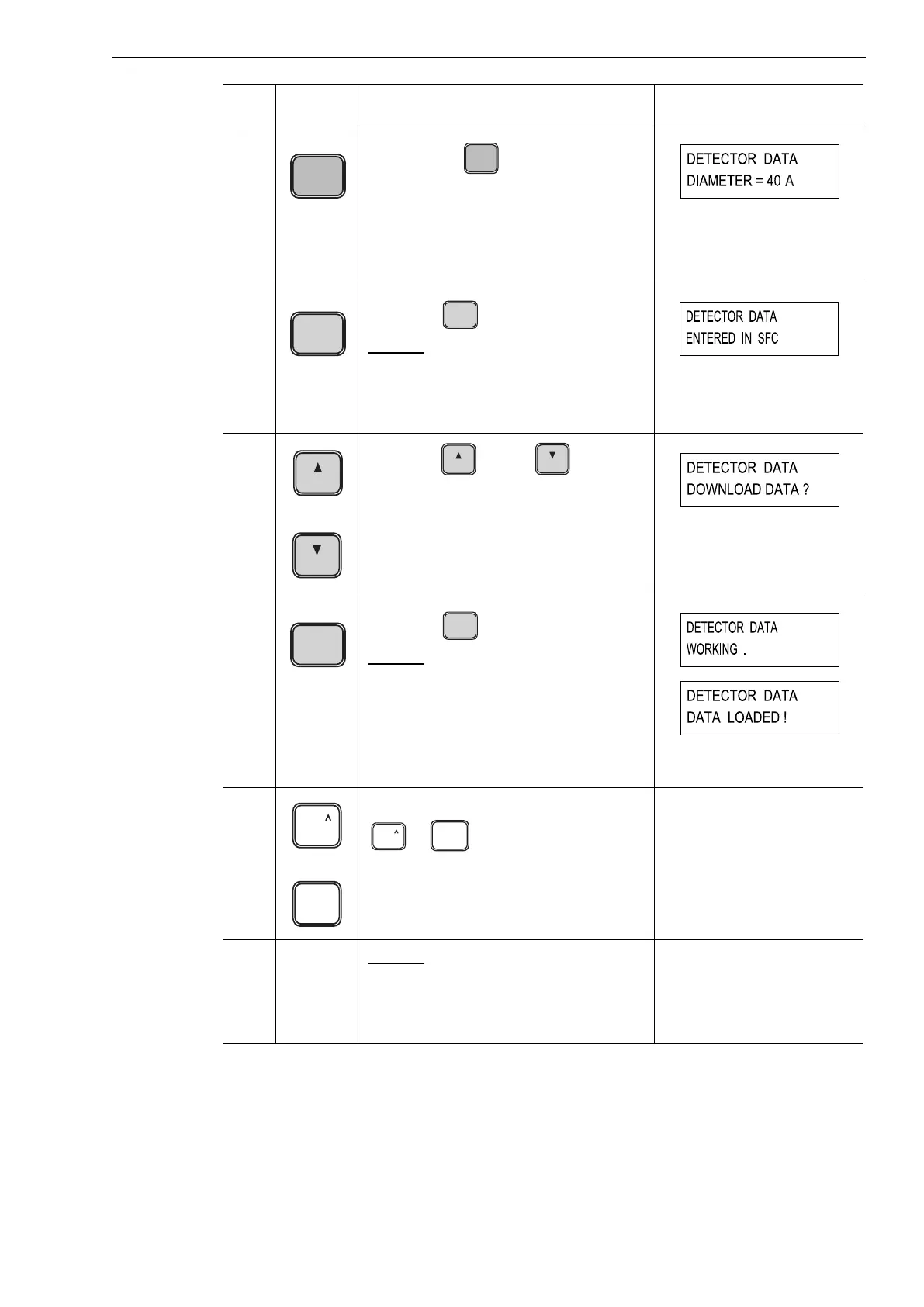

• The screen as shown on the right
appears and the set detector type is
confirmed.
8
or
Press the key or key to
display the screen (DOWN LOAD)
as shown on the right.
9
Press the key.
Result:
• The screen as shown on the right
appears and the changed setting is
written into the database of the
converter. The screen returns to
step 3.
10
+
To exit this setting function, press the
+ keys.
11 Result:
• The screen exits the detector
diameter setting function and
returns to step 1.
