Operation using HART communicator Azbil Corporation
7-6 Model MTG11A/18A, MTG11B/18B, MTG14C
7-2-1 : Setting procedures
The procedures to set various device values are described in this section.
Flow units
The unit for the flow is to be set as follows:
1. Select “1. Device setup” from online
menu 1 (Figure 7-4). The device setup
menu will then be displayed. (Figure
7-4)

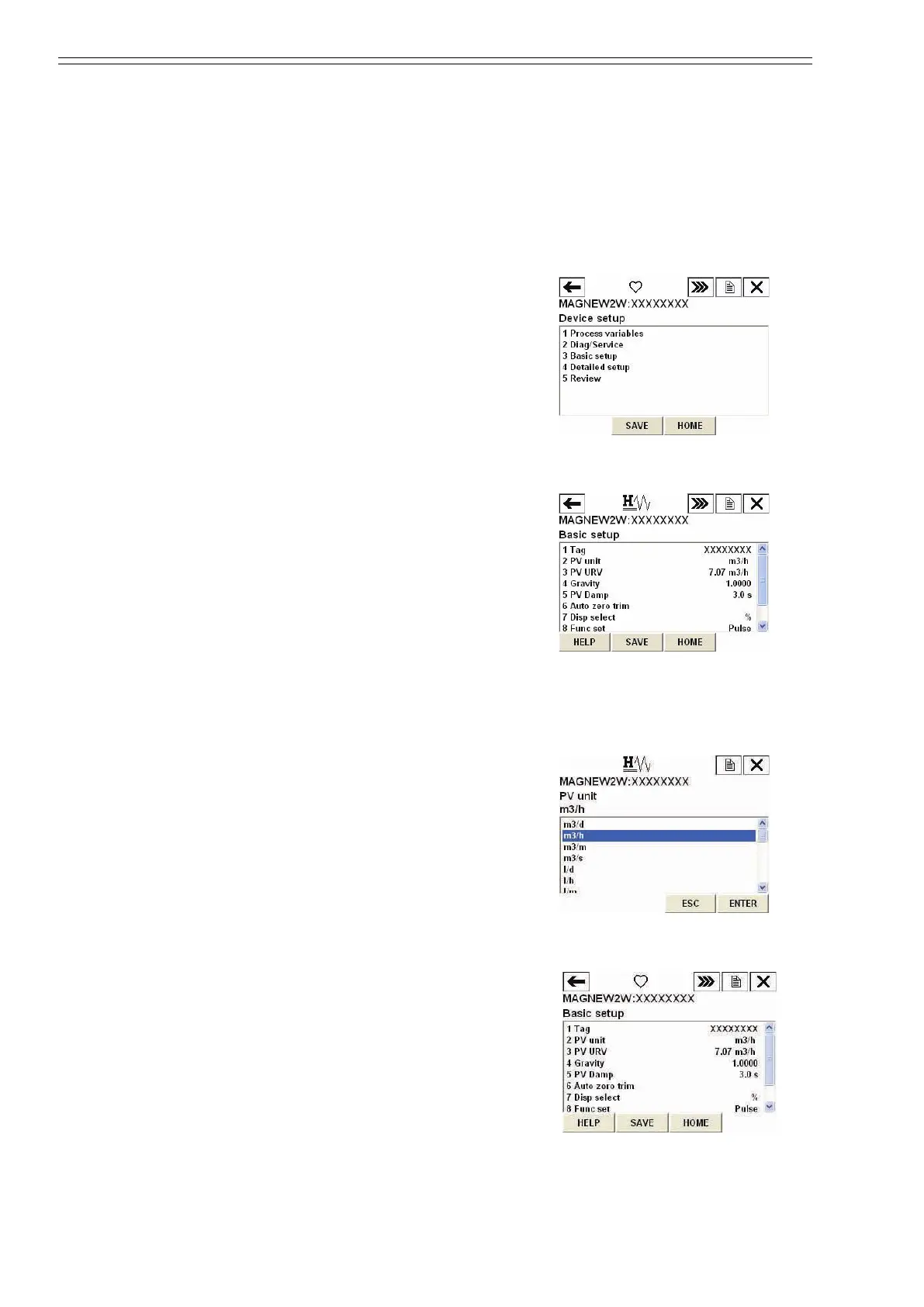

Figure 7-4 Device setup menu
2. Select “3. Basic setup” from the menu
and then the basic setup menu will be
displayed. (Figure 7-5)
Figure 7-5 Basic setup menu
3. Select “2. PV unit” from the basic setup menu.
4. Once the display as shown in Figure 7-
6 appears, move the arrow key up or
down to select a flow unit. After
making a selection, press F4
(ENTER). If F3 (ESC) is pressed here,
the selection will be canceled and the
display will return to the basic menu.
Figure 7-6 Selection of flow rate unit
5. After pressing F4 (ENTER) and
returning to the basic menu, press F2
(SEND). The HART mark will appear
in the upper right hand corner while
HART is communicating with the
device. (Figure 7-7)
Once communication is complete, the
HART mark will disappear.
Figure 7-7 Transmitting the setting
CM2-MTG300-2001.book 6 ページ ２０１５年９月２９日 火曜日 午前１０時１４分
