Operation using the data setting device Azbil Corporation
6-78 Model MTG11A/18A, MTG11B/18B, MTG14C
Setting dropout [PULSE CONFIGURE] function
Dropout function is to fix the pulse output, which is caused by the output fluctuation
near 0% of flow rate and is unrelated to the flow rate. Use the following procedure to
set the dropout using SFC.
Range of the dropout setting is 0 to 10%.

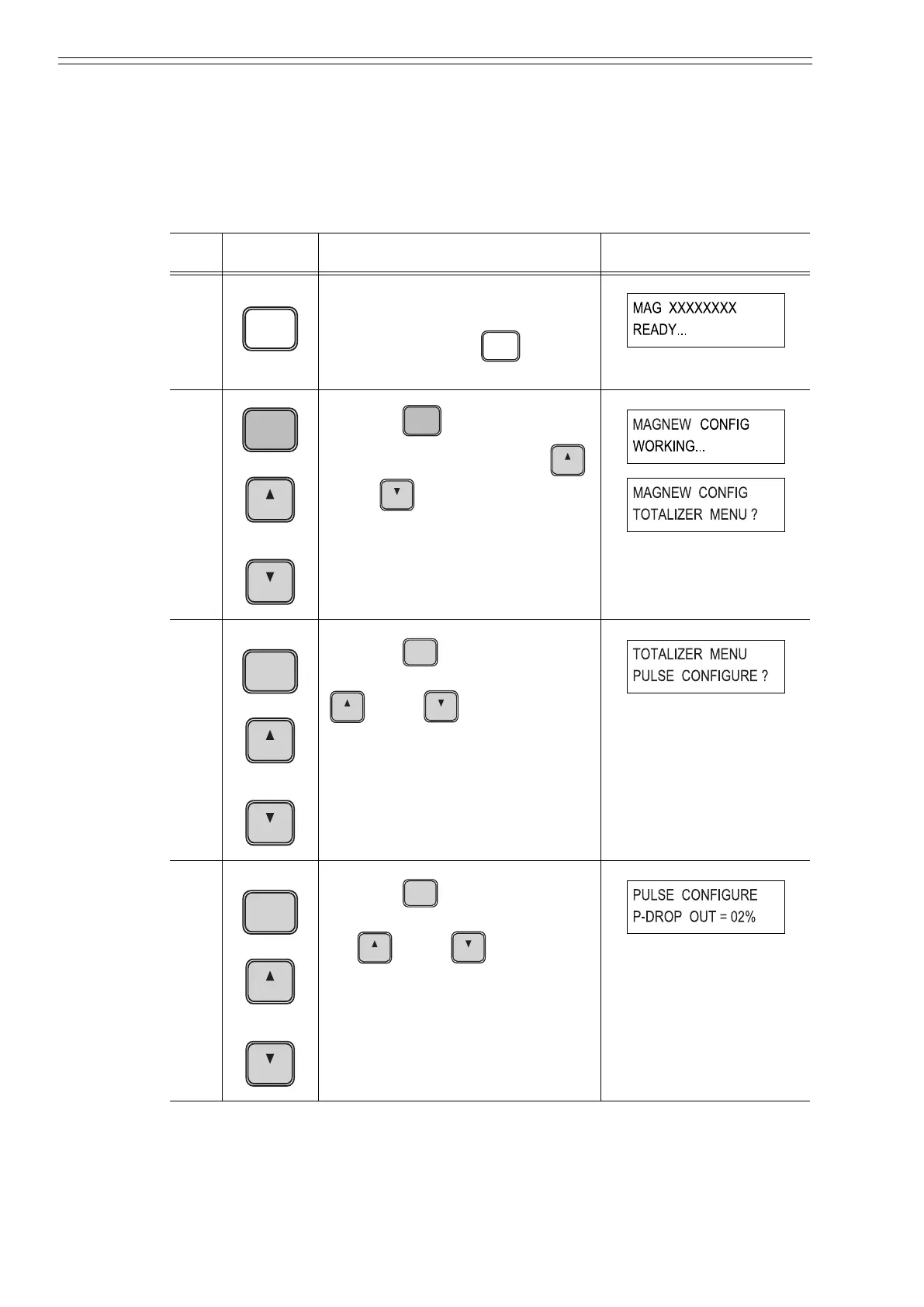

Step
Key Procedure SFC screen
1 Confirm that the SFC is set to
“READY”.
If it is not, press the key to
set it to “READY“.
2
or
Press the key to access the
CONFIG functions. Press the
key or key to display the
screen as shown on the right
3
or
Press the key to access the
TOTALIZER functions. Press the
key or key to display
the screen as shown on the right
4
or
Press the key to enter into
PULSE setting function and press
the key or key to
display the screen as shown on the
right.
Displays the actual dropout setting.
