Azbil Corporation Operation using HART communicator
Model MTG11A/18A, MTG11B/18B, MTG14C 7-33

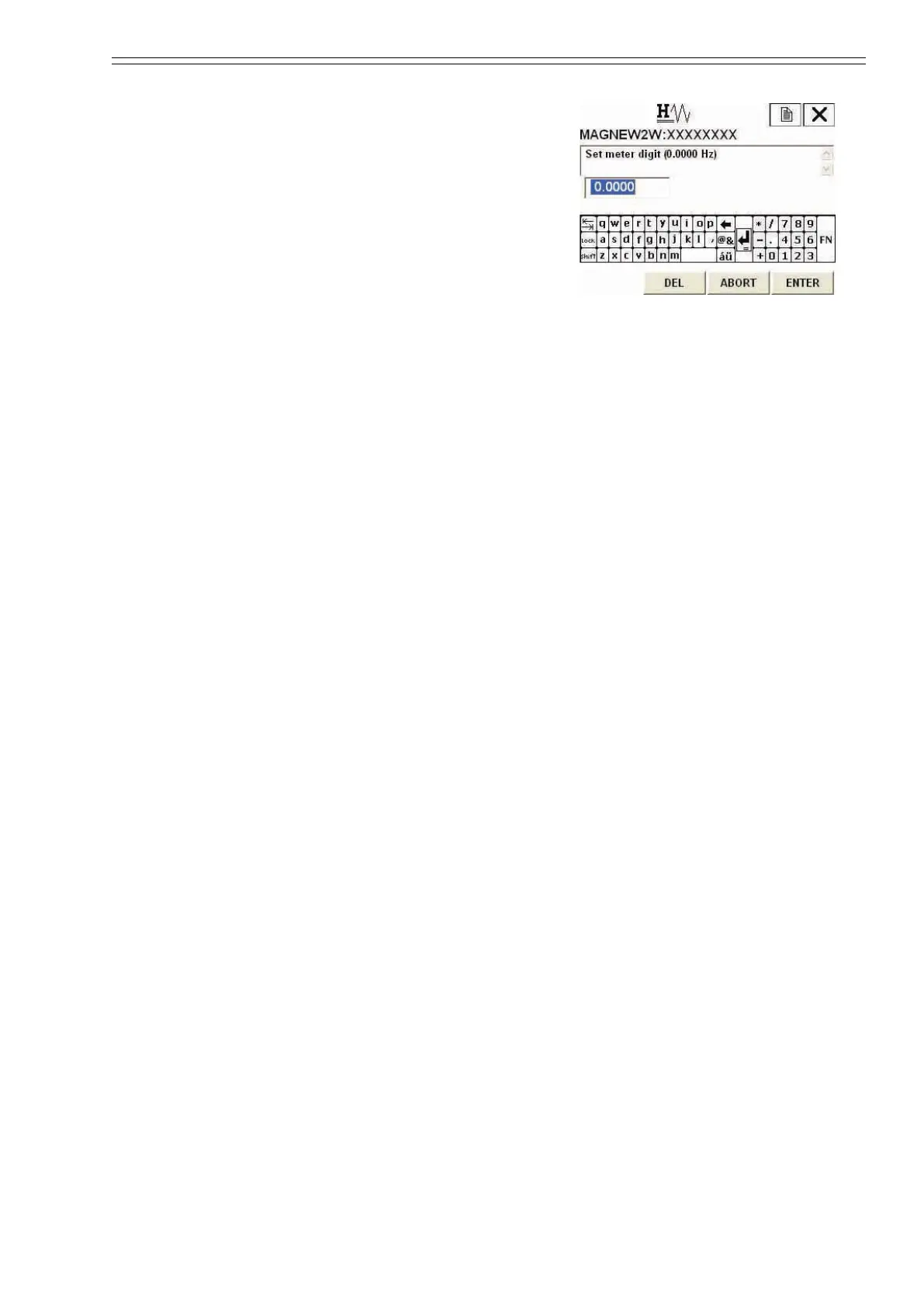

5. A numerical value input display
(Figure 7-66) will then appear.
Measure the pulse frequency from the
converter and enter the frequency by
the Hz into the device. Once the input
has been completed press F4
(ENTER). The converter will start
adjusting to 90 Hz automatically, and
return back to the display as shown in
Figure 7-65. Verify that the pulse
output is 90Hz, and terminate the
adjustment.
