PROTECTIVE PARTS SENSORS

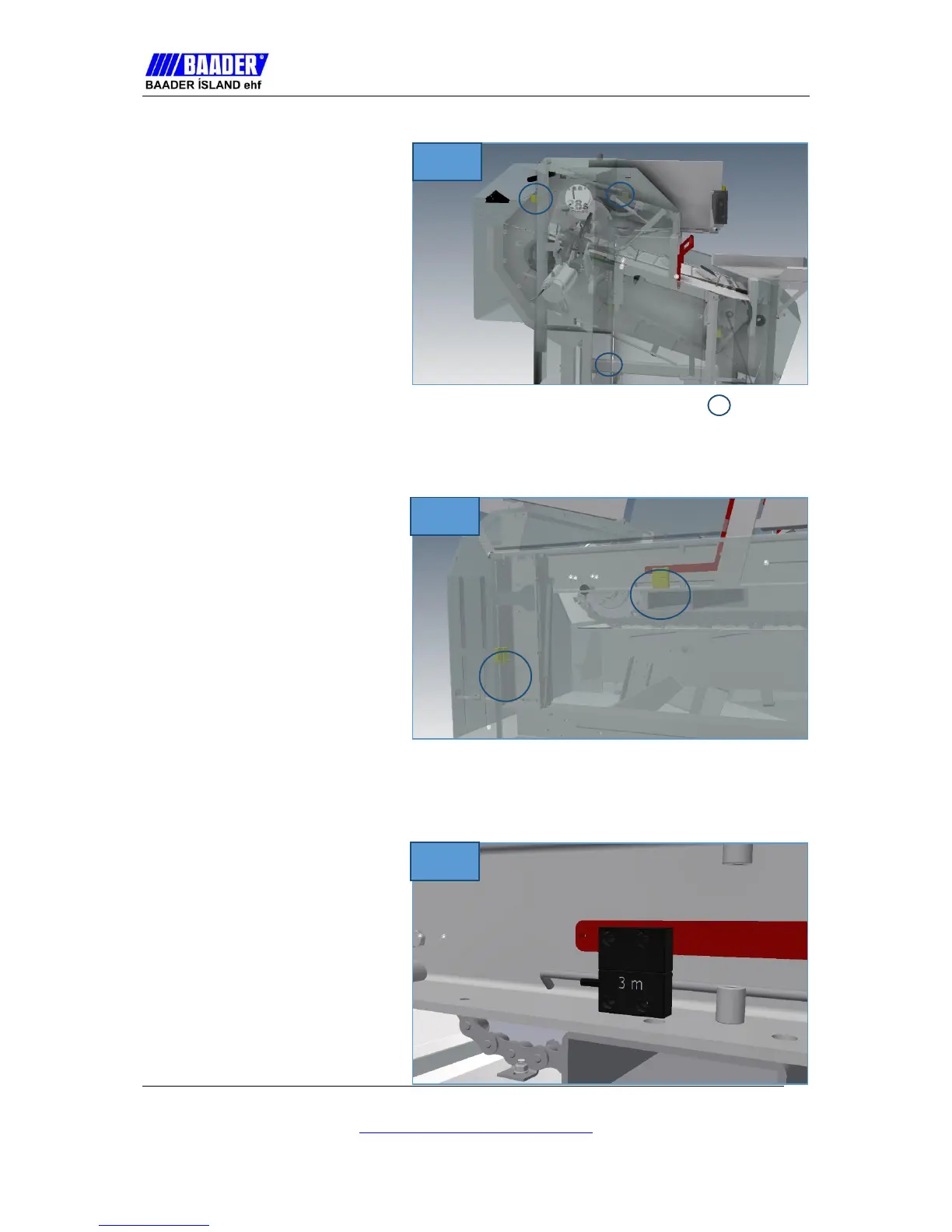

There are 6 protective parts
sensors in the machine (fig. 9
and 10 in yellow). Under various
conditions they can be
connected incorrectly
- If a protective part is
opened very little and
closed.
- If a protective part
bounces when being
closed.
- If a protective part is opened and
closed very quickly.
There are two ways of correcting the
connection.
- Open the protective part
in question and close it
again slowly.
- Hold the button on the
white light on the control
panel for 3 sec. and reset
all protective parts
sensors.
Sensors must be set in such a
way so that the longer sides
face each other (fig. 11)!
9
10
11
