IS-28/28s
Baader Ísland ehf, Hafnarbraut 25, Kopavogur, IcelandTel: +354 520 6900 Fax: +354 520 6911
lager@baader.is / www.baader.is
24

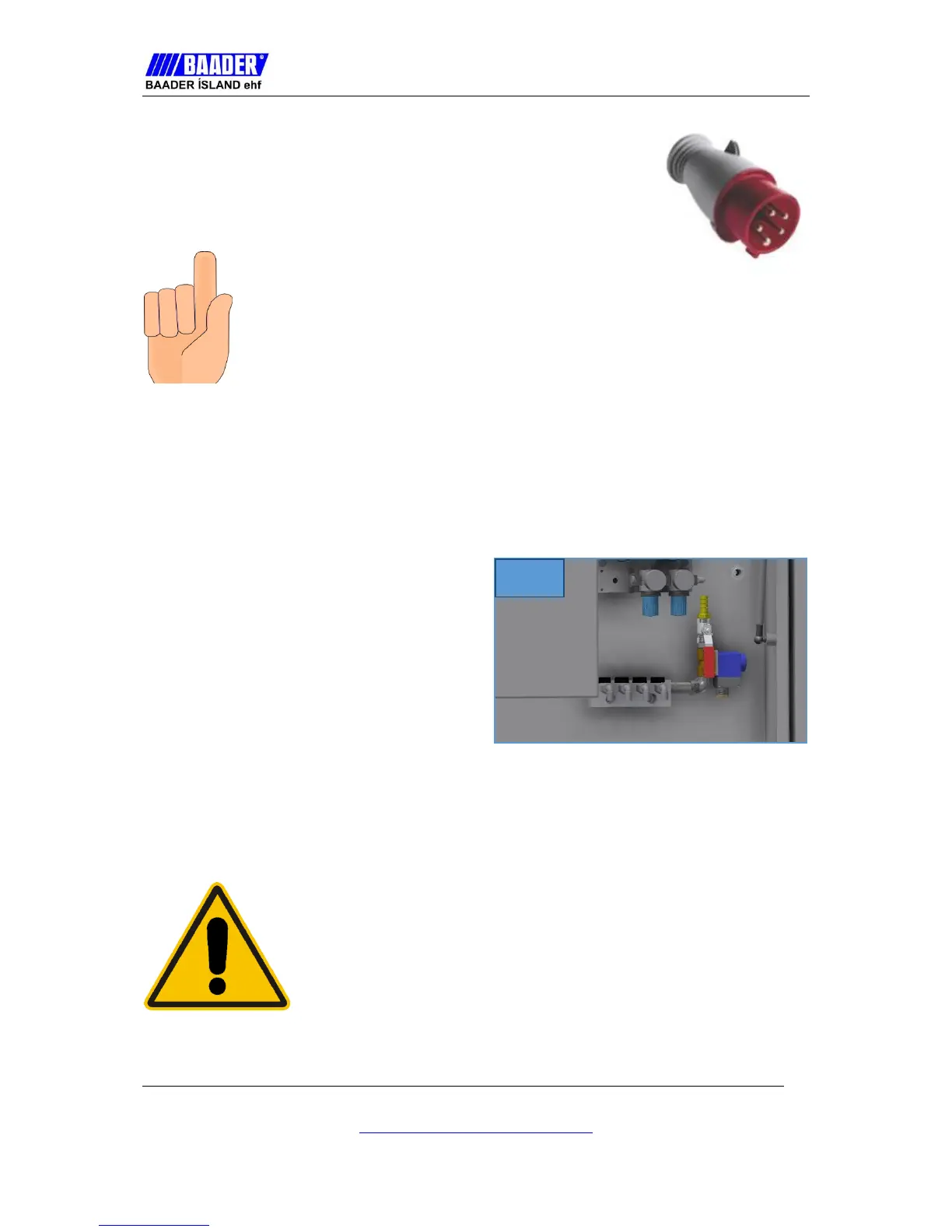

Mains plug
The machine is supplied with a 5 m of Ölflex 191 5 G 2.5
cable compatible with the 416P6 plug with IP44 splash
protection which meets the requirements IEC 60 309-2.
CHECK
The machine does not start!
The phases must be connected correctly to start the machine. See
phase items on the electric blueprint.
The necessary voltage and Hertz frequency are specified on the power shield of the
machine and on the wiring diagram (see in detail in chapter 7.4.1 Electrical
Connection)
WATER CONNECTION
Water supply connectors are in the toolbox under the intake on the top.
- Push the hose up onto the hose
nozzle (fig. 19, in yellow)
- Fasten the hose firmly on the
nozzle with a hose clasp
- Turn on the tap
Water supply connectors are designed for 19 mm internal diameter hoses (1/2“). The
hose must be fastened firmly onto the nozzle with a clasp. The tap is turned on and
off with a cut-off tap. Use the stopcock for daily usage.
WARNING
Risk of motor damage!
- Make sure water is always available
when the machine is running
because motors are water-cooled.
