Baader IS-028 - Air Board; Water Board

IS-28/28s
Baader Ísland ehf, Hafnarbraut 25, Kopavogur, IcelandTel: +354 520 6900 Fax: +354 520 6911
lager@baader.is / www.baader.is
50

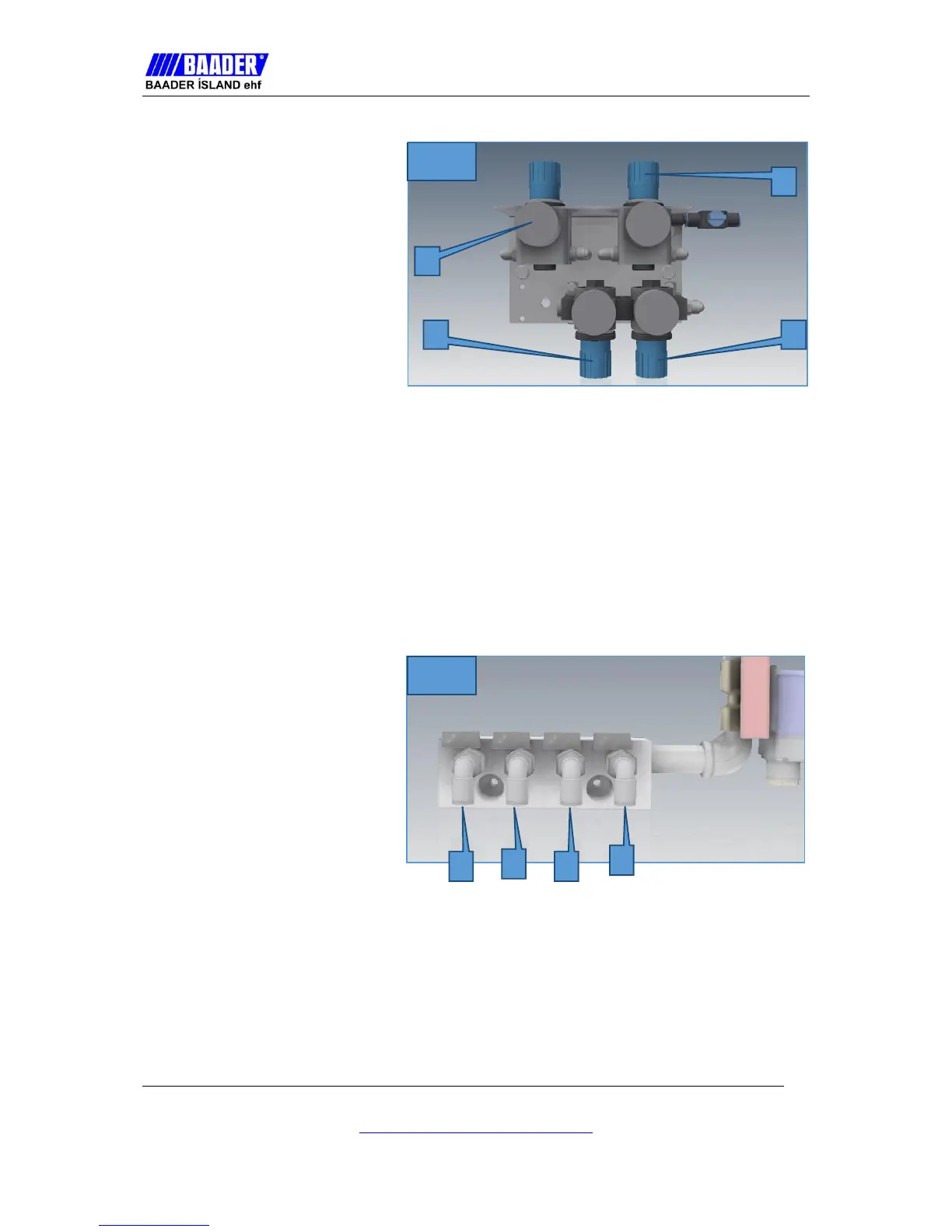

Air board
A 8 mm coupler for the machine
Otherwise a 6 mm coupler
Figure 45
1. 1-4 bars precise pressure regulator. It controls the pressure on the
spike press.
2. 1-4 bars precise pressure regulator. It controls the pressure on plates.
3. 1-8 bars pressure regulator. It controls the pressure on the pressure
wheel
4. 1-8 bars pressure regulator. It controls the pressure in the joystick.
Water board
An 8 mm coupler for water
system
Figure 46
1. Cooling in knives motors. The drain runs under the machine to rinse the
drawers
2. Lower knife rinse
3. Upper knife rinse
4. Unused
1
3
2
4
45
1
2
3
4
46
