Feedback 4-5MN1919
4.1.1.4 Encoder cable pin configuration - rotary motors
Figure 15 shows the pin configuration for a typical Baldor encoder feedback cable, part
number CBL025SF-E2.
Signal name
MicroFlex
X8 pin
Motor / cable
pin
Baldor encoder cable
internal wire colors
CHA+ 1 3 Purple
CHA- 9 4 Purple / White
CHB+ 2 5 Green
CHB- 10 6 Green / White
CHZ+ 3 7 Brown
CHZ- 11 8 Brown / White
Hall U+ 6 10 Pink
Hall U- 5 11 Pink / Black
Hall V+ 8 12 Yellow
Hall V- 7 13 Yellow / Black
Hall W+ 15 14 Grey
Hall W- 14 15 Grey / Black
+5V 12 1 Red
DGND 13 2 Blue
Motor encoder connector
(male)
Pins 9 and 16
are not
connec ted
1
2
3
4
5
6
7
8
9
10
11
12
13
1415
16
Cable connector end view
(female)
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
16

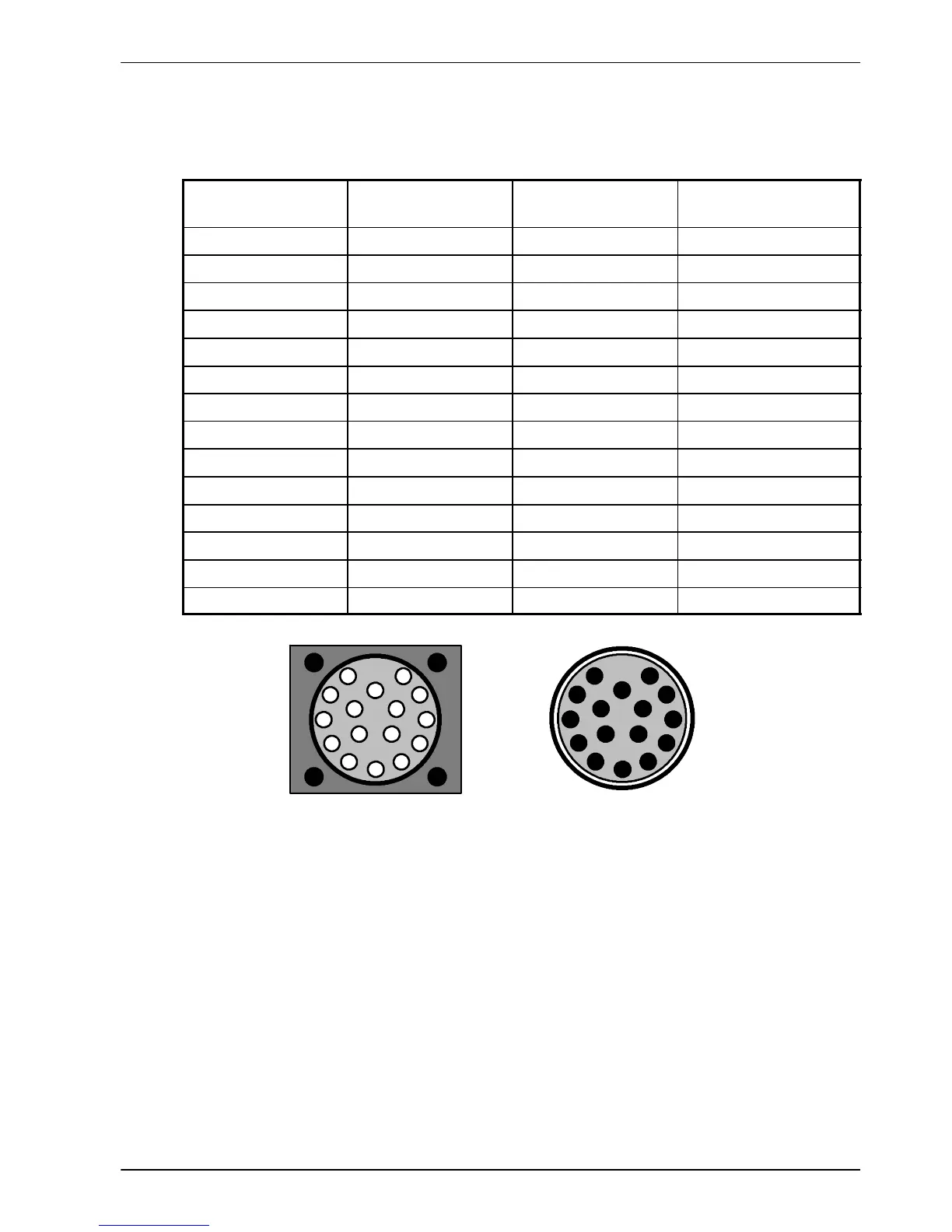

Figure 15 - Baldor rotary motor encoder cable pin configuration
The maximum recommended cable length is 30.5m (100ft).
