• Main Menu > Imager > Exposure

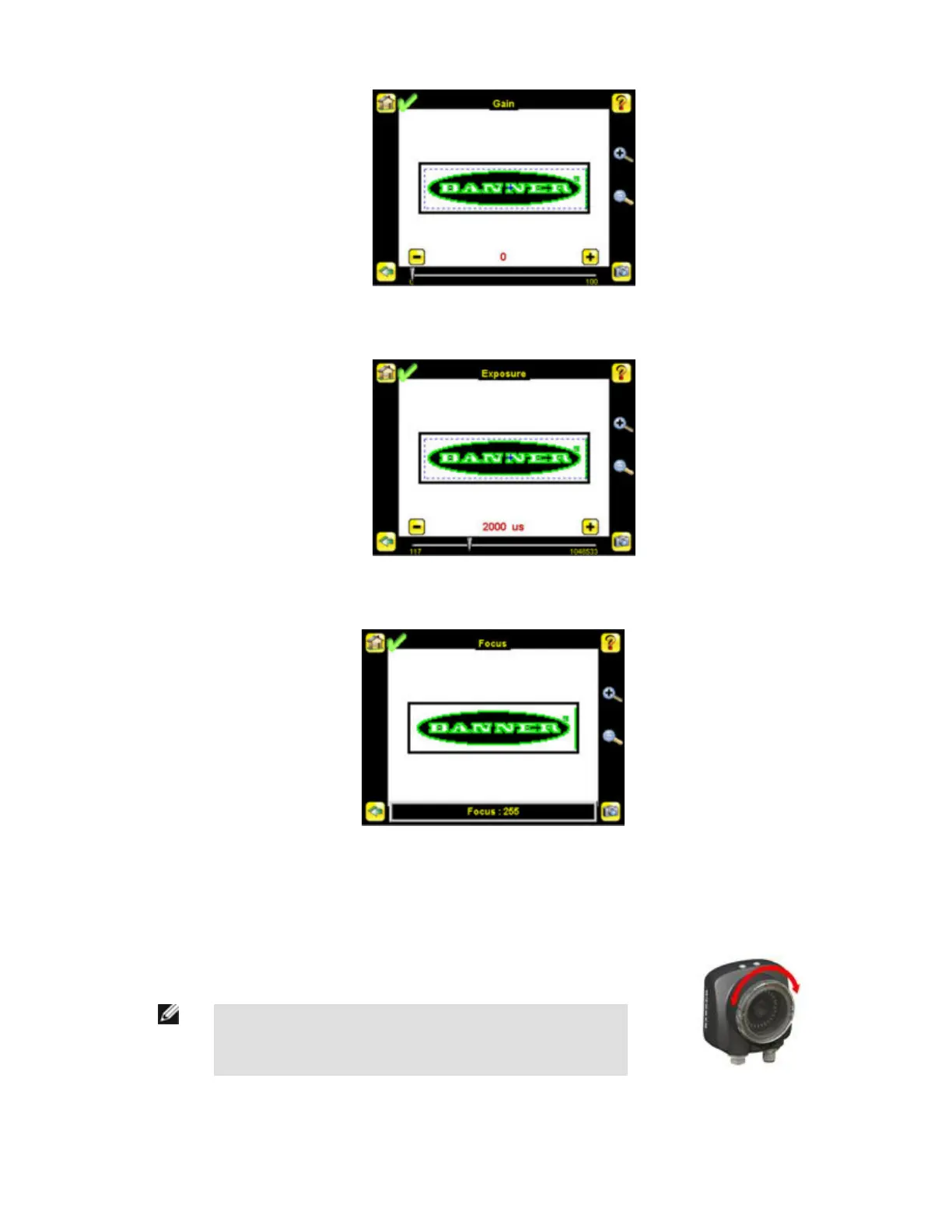

4. Go to Main Menu > Imager > Focus to adjust the focus while monitoring the Focus Number:
For Micro-lens Models Only:
1. Use the supplied 1/16" hex key to loosen the Focusing Window locking screw (D), then adjust focus on the iVu Series sensor using
the clear Focusing Window (B).
2.
Adjust focus while monitoring the focus number. To ensure the best image, adjust the focus until
the Focus Number peaks.
NOTE: Turning the Focusing Window counter-clockwise focuses on
closer objects, while turning the Focusing Window clockwise focuses
on more distant objects.
3. Once the best image has been acquired, lock the focusing window.
iVu Series Image Sensor
42 www.bannerengineering.com - tel: 763-544-3164 Rev. E

Banner iVu Series Specifications

General

Accessory Type	Vision Sensor
Sensor Type	CMOS
Resolution	640 x 480 pixels
Light Source	Integrated LED
Communication Interface	RS-232
Ingress Protection	IP67
Operating Temperature	0°C to 50°C (32°F to 122°F)
