Banner Q4X User Manual

This setting is automatically applied during any subsequent teach operation. The window size value represents a +/- mm value, so
the total window size is twice this value. For example, a window set of 10 mm gives a 20 mm window centered around the taught
point. The window size can also be changed directly from Run mode after changing the setting to any value except Auto. For
Channel 2, the output must be set to light operate or dark operate.

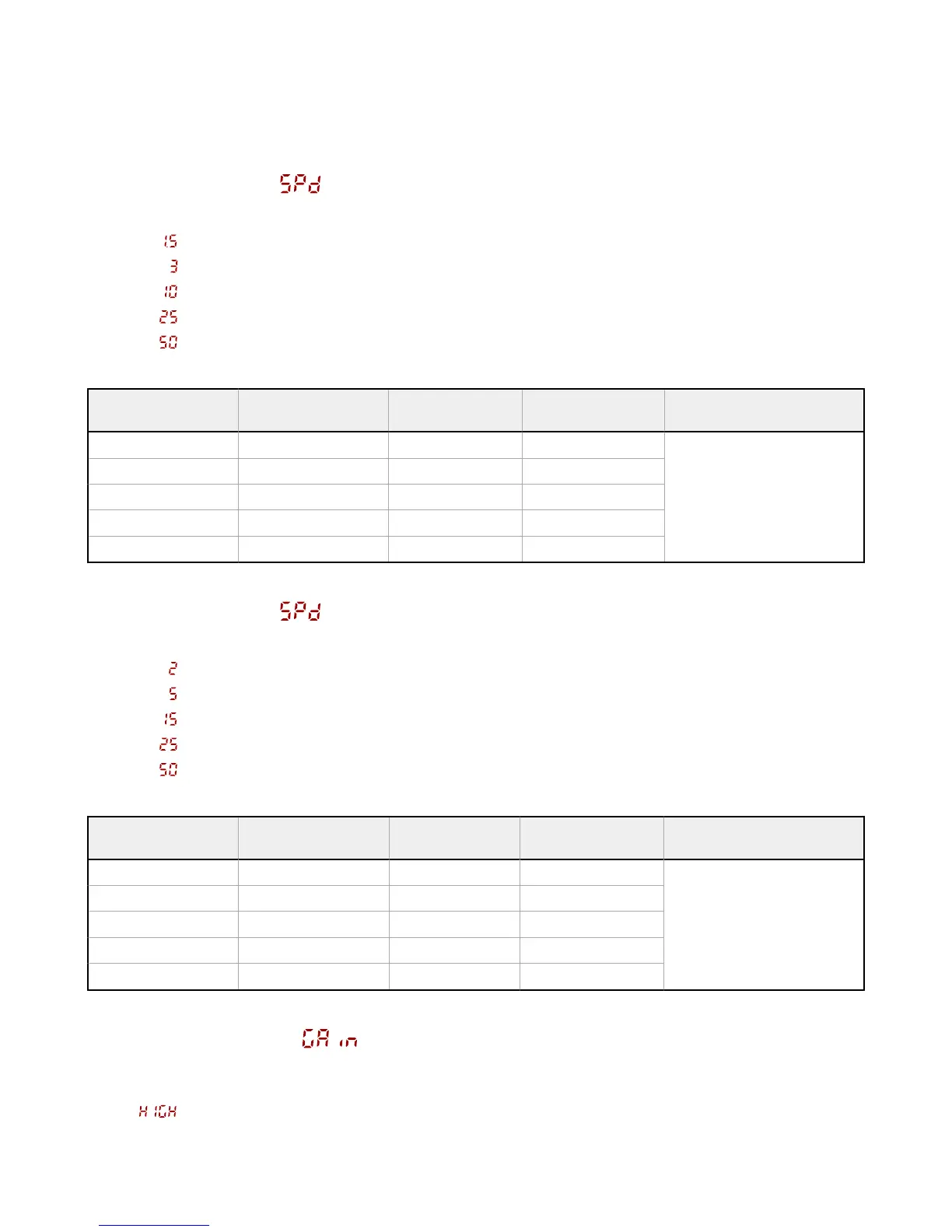

3.2.5 Response Speed —100/110/300/310 mm Models
Use this menu to select the response speed. The default is 10 milliseconds.
• —1.5 milliseconds
• —3 milliseconds
• —10 milliseconds
• —25 milliseconds
• —50 milliseconds
Table 1: Tradeoffs
Response Speed Response Speed in
Sync Mode
Repeatability Ambient Light
Rejection
Excess Gain
1.5 ms 3 ms 500 µs Disabled
See Table 13 on page 31
3 ms 6 ms 500 µs Enabled
10 ms 20 ms 2 ms Enabled
25 ms 50 ms 5 ms Enabled
50 ms 100 ms 10 ms Enabled
3.2.6 Response Speed —600/610 mm Models
Use this menu to select the response speed. The default is 25 milliseconds.
• —2 milliseconds
• —5 milliseconds
• —15 milliseconds
• —25 milliseconds
• —50 milliseconds
Table 2: Tradeoffs
Response Speed Response Speed in
Sync Mode
Repeatability Ambient Light
Rejection
Excess Gain
2 ms 4 ms 800 µs Disabled
See Table 14 on page 31
5 ms 10 ms 1600 µs Enabled
15 ms 30 ms 3 ms Enabled
25 ms 50 ms 5 ms Enabled
50 ms 100 ms 10 ms Enabled
3.2.7 Gain and Sensitivity
Use this menu to set the excess gain mode. This menu is only available when a 10, 15, 25, or 50 millisecond response speed is
selected. It is not available for 1.5, 2, 3, or 5 millisecond response speeds.
• —High excess gain mode
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
12 www.bannerengineering.com - Tel: 763.544.3164

Banner Q4X Specifications

General

Sensing Mode	Diffuse
Input Voltage	10 V DC to 30 V DC
Output	NPN or PNP
Housing Material	Stainless steel
IP Rating	IP67
Connection Type	M12
