Condition TEACH Result Display
One valid TEACH point that, after
offset, becomes invalid
Sets a switch point at the following location:
Model Switch Point
100 mm threaded barrel models 75
300 mm threaded barrel models 200
600 mm threaded barrel models 400
110 mm flush mount models 85
310 mm flush mount models 210
610 mm flush mount models 410
and the switch point distance
flash
alternately on the display.

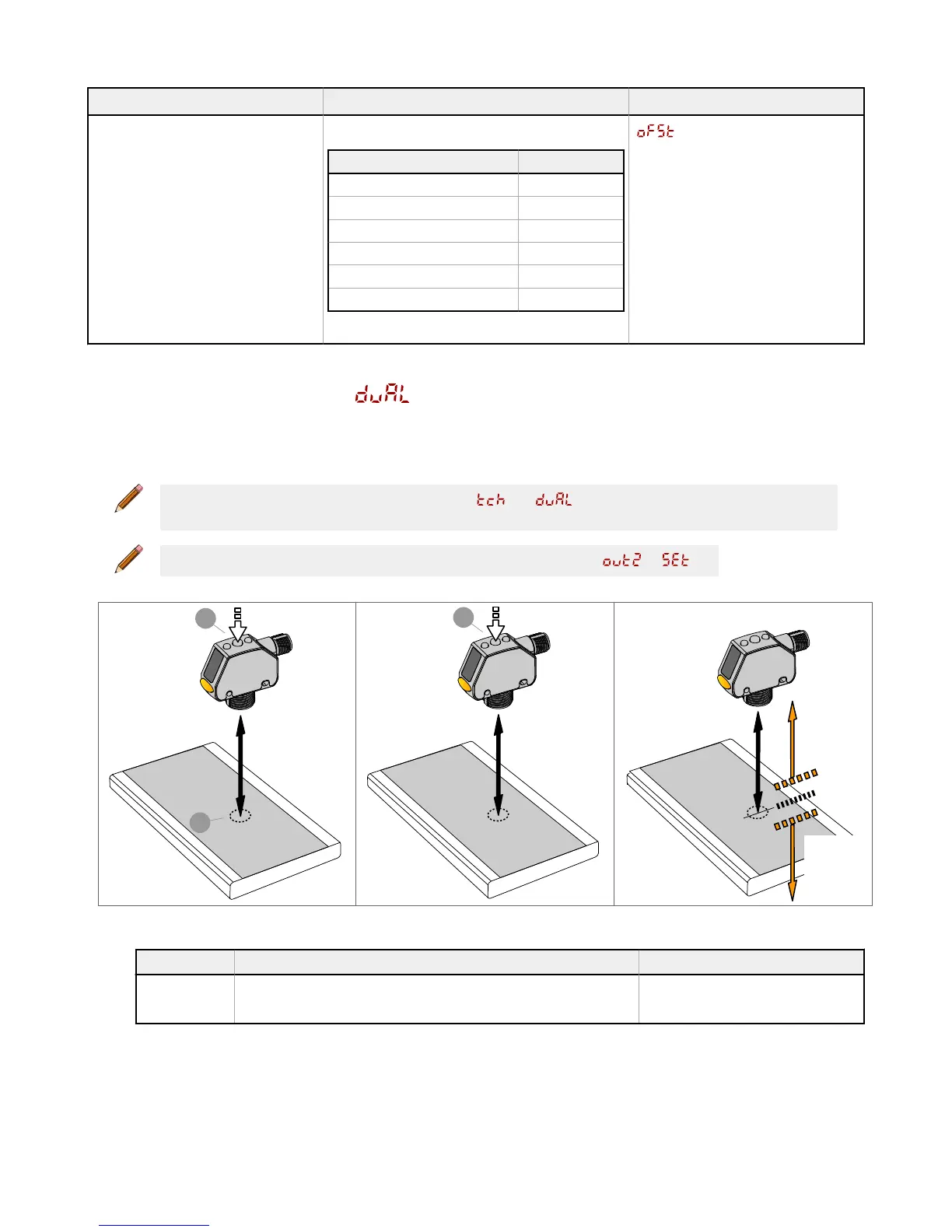

3.6.5 Dual (Intensity + Distance)
Dual (intensity + distance) TEACH records the distance and amount of light received from the reference surface. The output
switches when an object passing between the sensor and the reference surface changes the perceived distance or amount of
returned light. For more information on dual TEACH mode, see Dual (Intensity + Distance) Mode on page 36.
Note: To use the following instructions, set the sensor to = . The DYN, FGS, and BGS indicators are
amber.
Note: To program the sensor using remote input, remote input must be enabled ( = ).
2
Press and Hold
> 2s
1
3
Press again
Increased
Height
and/or
Intensity
Decreased
Height
and/or
Intensity
Reference
Surface
1. Present the target.
Method Action Result
Push Button
Remote Input
Present the reference target. The target's match percentage displays
2. Start the TEACH mode.
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
www.bannerengineering.com - Tel: 763.544.3164 27
