1 Product Description
Class 1 laser CMOS sensor with dual outputs and IO-Link. Patent pending.

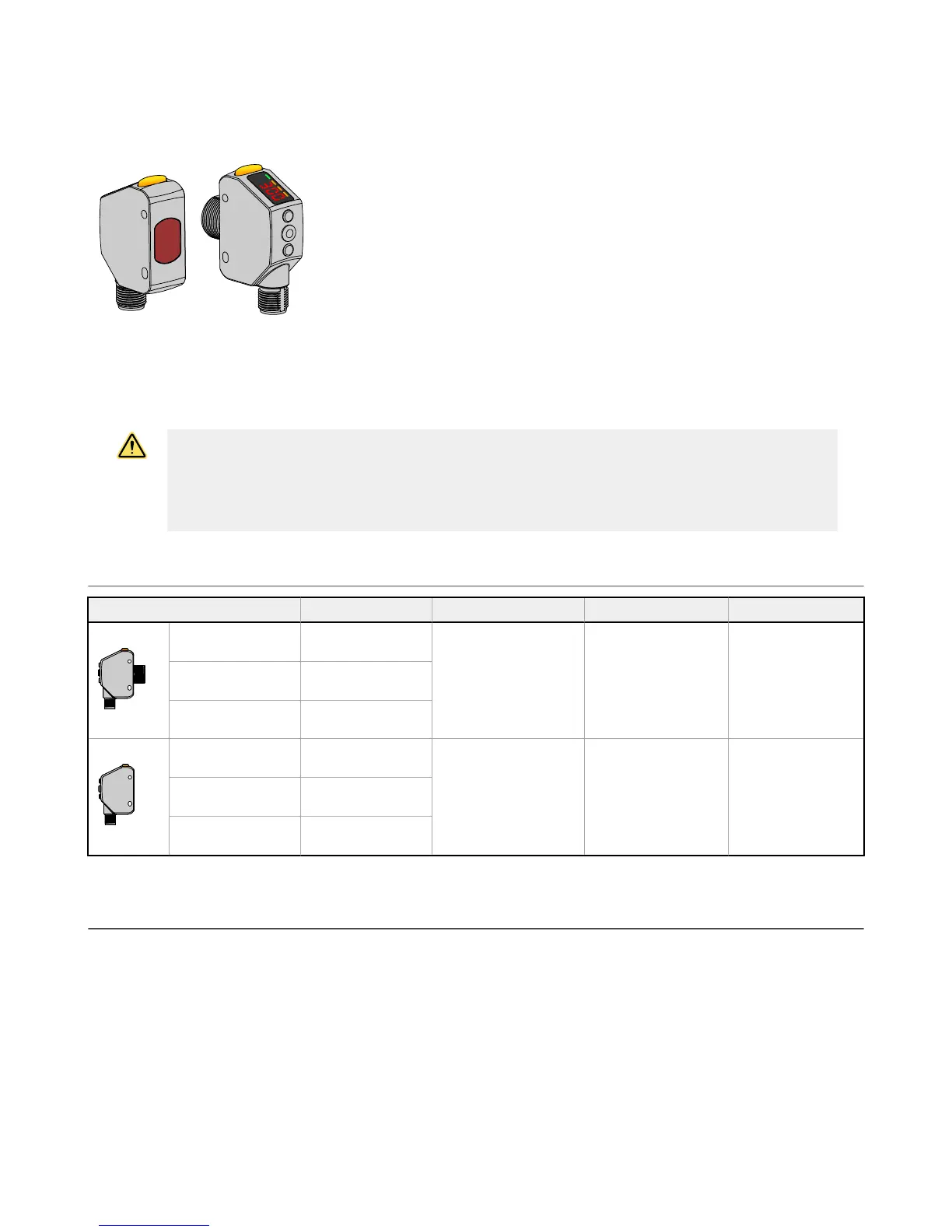

Figure 1. Flush Mount (Left) and
Threaded Barrel (Right) Models
• The ultimate problem solver: reduce sensor inventory with a reliable, durable sensor that
solves the most challenging applications
•
Solves
difficult distance‐based applications regardless of target surface reflectivity,
including black foam on black plastic, black rubber in front of metal, transparent objects,
multicolor packaging, and targets of all colors
• Robust housing rated to IP69K with FDA-grade stainless steel resists mechanical
impact, over tightening and extreme vibration
• Bright output indicator and real time distance feedback provide easy setup and
troubleshooting for reduced installation costs
• Dual channels and IO-Link
For illustration purposes, the threaded barrel model Q4X images are used throughout this document.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious
injury or death. This device does not include the self-checking redundant circuitry necessary to allow its use
in personnel safety applications. A sensor failure or malfunction can cause either an energized or de-energized
sensor output condition.
1.1 Models
Model Sensing Range Channel 1 Channel 2 Connection
Q4XTKLAF600-Q8
25 mm to 600 mm
(0.98 in to 23.62 in)
IO-Link, Push/pull output
PNP only output or
input, or pulse frequency
modulated output
Integral 4-pin M12/
Euro-style male quick
disconnect (QD)
Q4XTKLAF300-Q8
25 mm to 300 mm
(0.98 in to 11.81 in)
Q4XTKLAF100-Q8
25 mm to 100 mm
(0.98 in to 3.94 in)
Q4XFKLAF610-Q8
35 mm to 610 mm
(1.38 in to 24.02 in)
IO-Link, Push/pull output
PNP only output or
input, or pulse frequency
modulated output
Integral 4-pin M12/
Euro-style male quick
disconnect (QD)
Q4XFKLAF310-Q8
35 mm to 310 mm
(1.38 in to 12.20 in)
Q4XFKLAF110-Q8
35 mm to 110 mm
(1.38 in to 4.33 in)
1.2 Overview
The Q4X sensor with dual discrete outputs and IO-Link is a Class 1 laser CMOS sensor with an IO-Link and multifunction output.
The normal sensor state is Run mode. From Run mode, the switch point value and channel selection can be changed and the
selected TEACH method can be performed. The secondary sensor state is Setup mode. From Setup mode, the TEACH mode can
be selected, all standard operating parameters can be adjusted, and a factory reset can be done.
