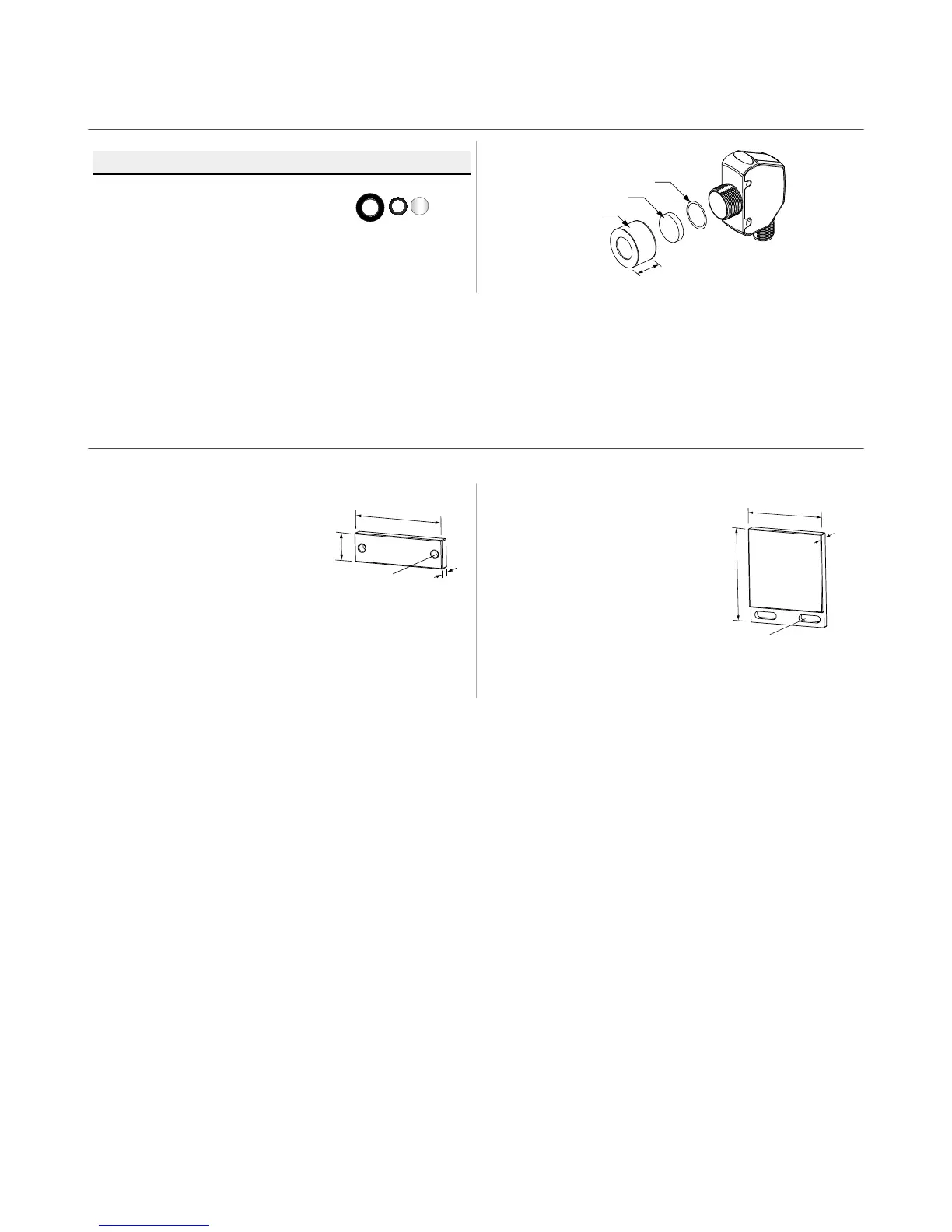

Banner Q4X User Manual

8.3 Aperture Kits—Threaded Barrel Models
APG18S
Kit with glass lens to protect plastic sensor lens
from chemical environments and weld splatter
damage.
Used with S18, M18, T18, TM18, and Q4X
Housing
Ø 22.4 mm
12.7 mm
Lens
O-ring
Additional Information
•
Borosilicate glass window protects the PMMA window from weld splatter and chemicals
• Adds 4.8 mm to the length of the threaded barrel
• Reduces excess gain by 30%; increase the response time to restore excess gain
8.4 Reference Targets
All measurements are listed in millimeters, unless noted otherwise.
BRT-Q4X-60X18
•
Reference target for clear object
detection or dual mode
applications
• FDA grade acetal material
2 x
ø4.5
18
6
60
BRT-Q4X-60X50
•
Reference target for clear object
detection or dual mode
applications
• FDA grade acetal material
2 x
ø4.6
50
6
60
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
44 www.bannerengineering.com - Tel: 763.544.3164

Banner Q4X Specifications

General

Sensing Mode	Diffuse
Input Voltage	10 V DC to 30 V DC
Output	NPN or PNP
Housing Material	Stainless steel
IP Rating	IP67
Connection Type	M12
