2 Installation

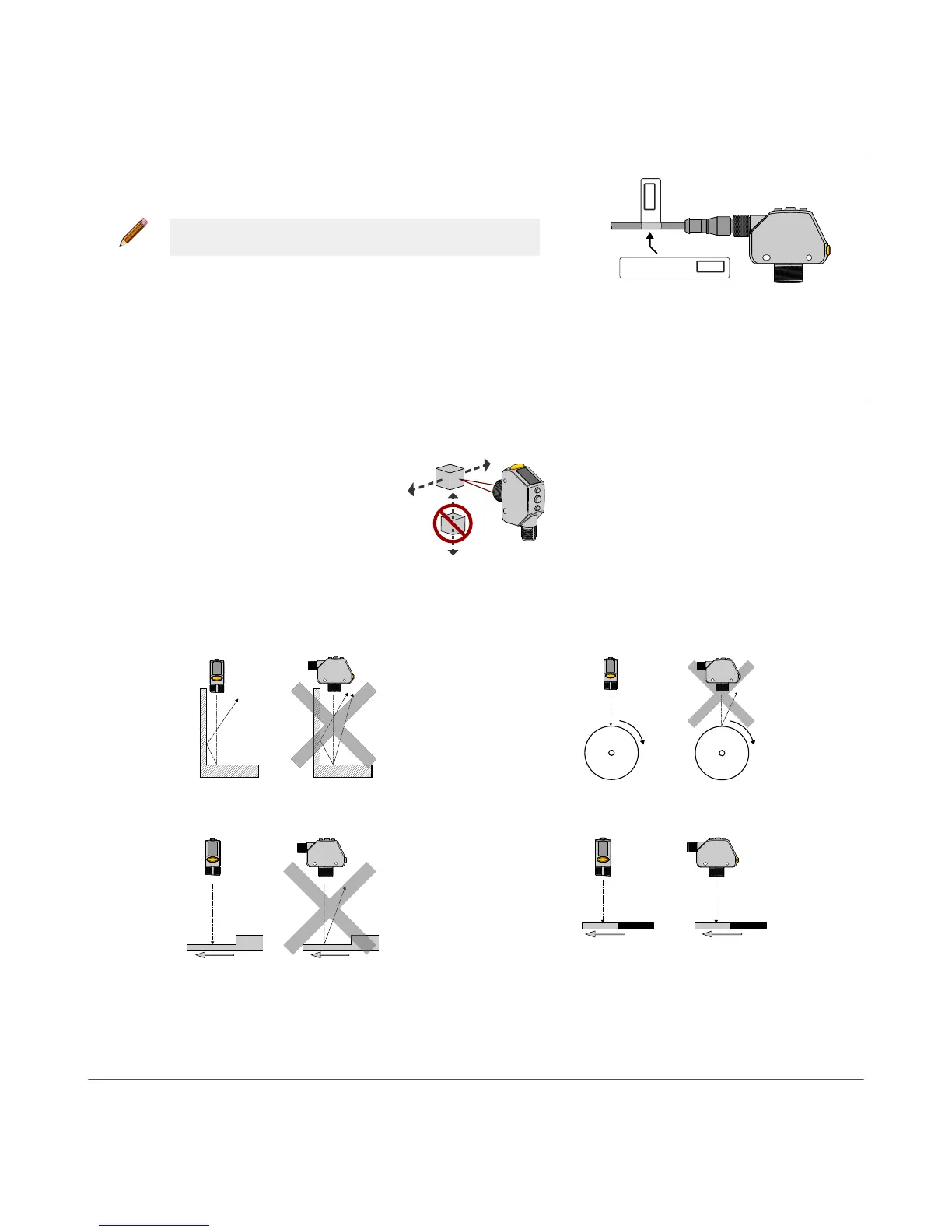

2.1 Install the Safety Label
The safety label must be installed on Q4X sensors that are used in the United
States.
Note: Position the label on the cable in a location that has
minimal chemical exposure.
1. Remove the protective cover from the adhesive on the label.
2.
Wrap the label around the Q4X cable, as shown.
3. Press the two halves of the label together.
COMPLIES WITH IEC 60825-1:2007
CLASS 1
LASER PRODUCT
COMPLIES WITH 21 CFR 1040.10 AND 1040.11
EXC
EPT FOR DEVIATIONS PURSUANT TO
LASER NOTICE No. 50, DATED JUNE 24, 2007.
BANNER ENGINEERING CORP.
9
714 10TH AVENUE NORTH
MINNEAPOLIS, MN 55441
COMPLIES WITH IEC 60825-1:2007
CLASS 1
LASER PRODUCT
Figure 4. Safety Label Installation
2.2 Sensor Orientation
Optimize detection reliability and minimum object separation performance with correct sensor-to-target orientation. To ensure
reliable detection, orient the sensor as shown in relation to the target to be detected.
Figure 5. Optimal Orientation of Target to Sensor
See the following
figures for examples of correct and incorrect sensor-to-target orientation as certain placements may pose
problems for sensing some targets. The Q4X can be used in the less preferred orientation and provide reliable detection
performance; refer to the Performance Curves for the minimum object separation distance required for each case.
Figure 6. Orientation by a wall
Figure 7. Orientation for a turning object
Figure 8. Orientation for a height difference
Horizontal
Orientation
Vertical
Orientation
(Optimal)
Figure 9. Orientation for a color or luster difference
2.3 Mount the Sensor
1. If a bracket is needed, mount the sensor onto the bracket.
2.
Mount the sensor (or the sensor and the bracket) to the machine or equipment at the desired location. Do not tighten the
mounting screws at this time.
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
6 www.bannerengineering.com - Tel: 763.544.3164
