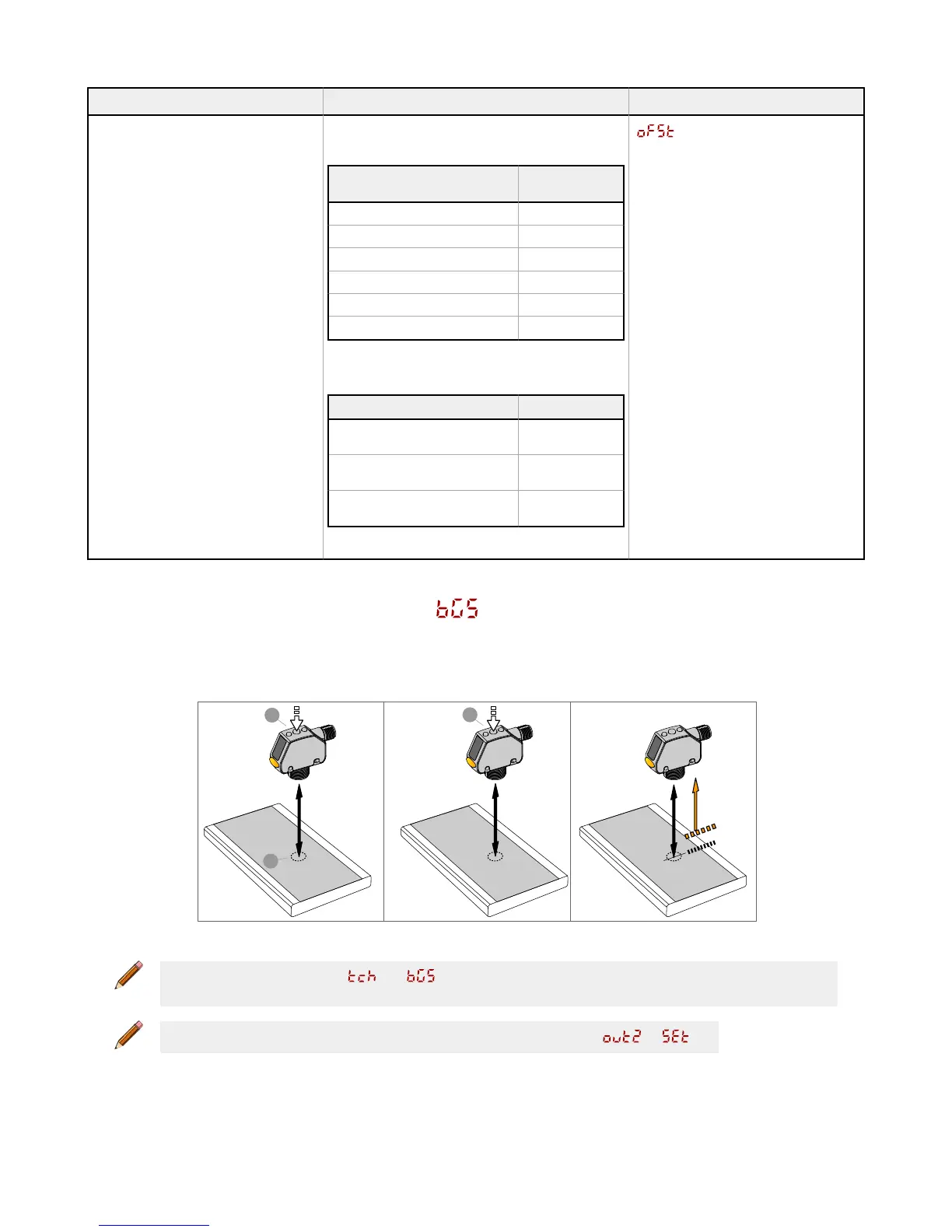

Condition TEACH Result Display
One valid TEACH point that, after the
offset, results in a both switch points
outside of the range
Sets a window (two switch points) centered
around the following location:
Model Window Center
Point
100 mm threaded barrel models 80
300 mm threaded barrel models 250
600 mm threaded barrel models 500
110 mm flush mount models 90
310 mm flush mount models 260
610 mm flush mount models 510
The window size is:
Model Window Size
100 mm threaded barrel and 110
mm flush mount models
±12.5 mm
300 mm threaded barrel and 310
mm flush mount models
± 25 mm
600 mm threaded barrel and 610
mm flush mount models
± 25 mm
and the window center point
distance
flash alternately on the
display.
3.6.4 One-Point Background Suppression
One-point background suppression sets a single switch point in front of the taught target distance. Objects beyond the taught
switch point are ignored. The switch point is set in front of the taught target distance by the vertical minimum object separation.
See Figure 23 on page 34.
Press and Hold
> 2s
Press again
Switch
Point
Value A
2
1
3
Figure 20. One-Point Background Suppression
Note: The sensor must be set to = to use the following instructions. The BGS indicator is amber to
indicate Background Suppression mode.
Note: To program the sensor using remote input, remote input must be enabled ( = ).
1. Present the target.
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
www.bannerengineering.com - Tel: 763.544.3164 25
