Banner Q4X User Manual

Zero = Near
(Default Setting)
Shift = Off
=
=
Zero = Far
Shift = Off
=
=
Zero = Far
Shift = On
=
=
Display Reference Display Reference
50 mm
50 mm
50 mm
Display Reference Display Reference
Display Reference
100
0
200
300
mm
0
-100
100
200
mm
0
-100
100
200
mm
100
0
200
300
mm
200
0
100
300
mm
200
0
100
300
mm
Display Reference

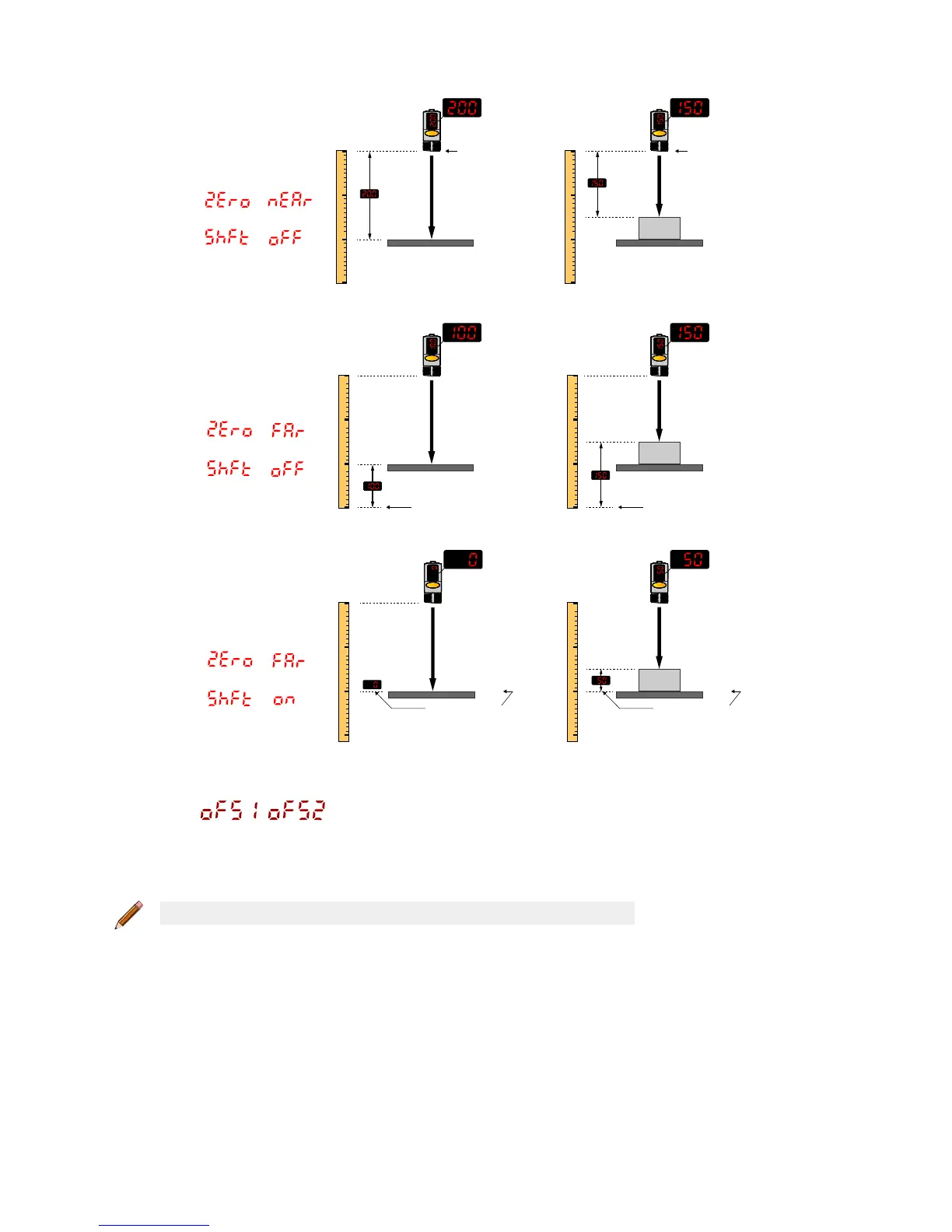

Figure 15. Example Zero and Shift settings
3.2.11 Offset
Use this menu to set an offset from the taught surface. This menu is available only if one-point window (foreground suppression)
mode or one-point background suppression mode is selected. For Channel 2, the output must be set to light operate or dark
operate.
Note: The number that follows ofS on the display indicates which channel is selected.
The offset is automatically calculated or manually defined as a consistently applied value. Auto is the default option. Use +/- to
select a value. Values increase or decrease by 0.1 mm (100/110 mm models) or 0.2 mm (300/310/600/610 mm models).
For BGS mode, the default is Auto because the Q4X automatically selects where to position the switch point. For FGS mode, the
default is 0 because the window is centered around the taught target.
A positive offset value always shifts the switch point location or the FGS window towards the sensor.
The taught surface must be inside of the defined sensing range. When the teach mode is set to FGS, some portion of the window
must be located within the sensing range. When the teach mode is set to BGS, the offset value must be within the defined sensing
range. If an offset value falls outside of the sensing range, a message displays. See the applicable TEACH procedure for more
information.
