Condition TEACH Result Display
Two invalid TEACH points
Sets a switch point at the following location:
Model Switch Point
100 mm threaded barrel models 99
300 mm threaded barrel models 290
600 mm threaded barrel models 590
110 mm flush mount models 109
310 mm flush mount models 300
610 mm flush mount models 600
and the switch point distance
flash
alternately on the display.

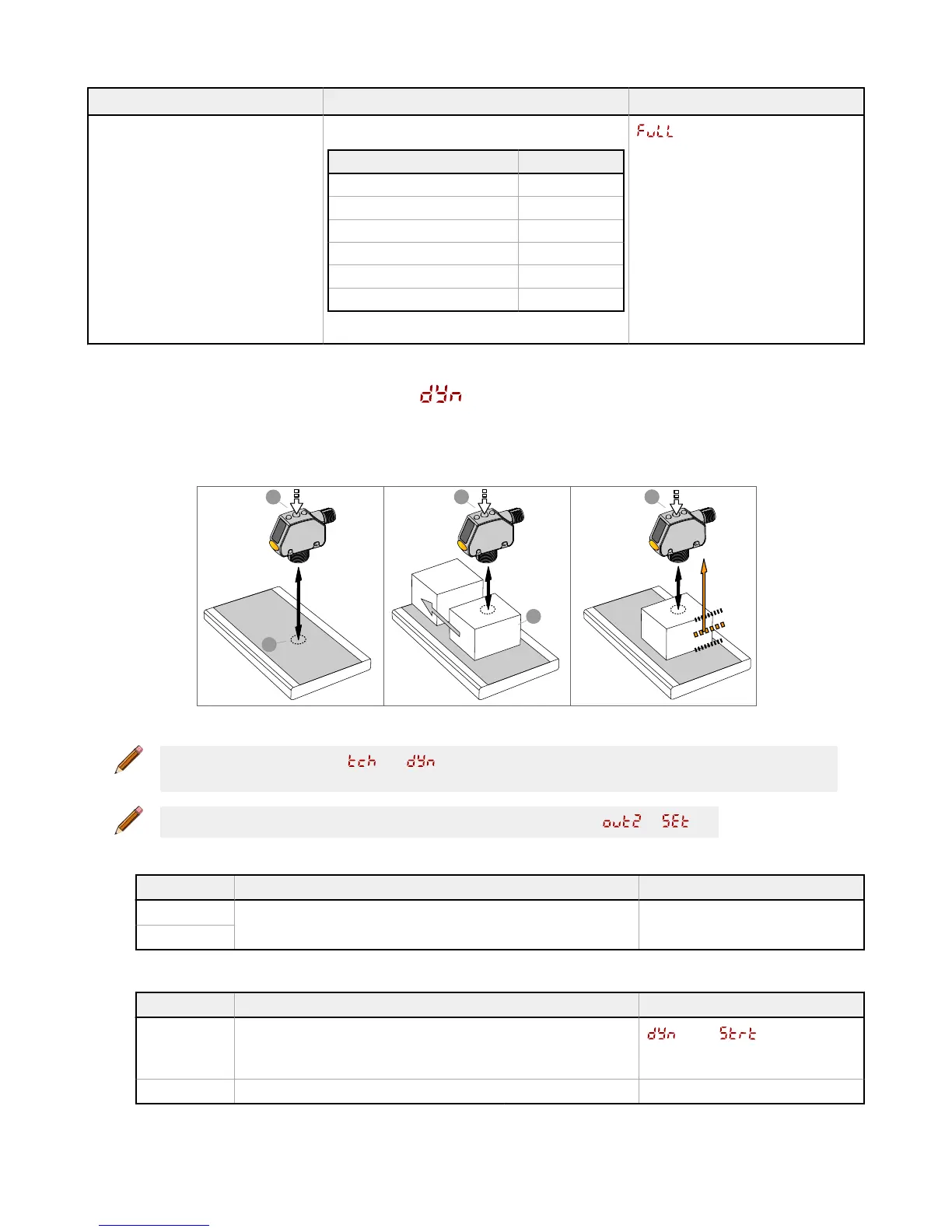

3.6.2 Dynamic Background Suppression
Dynamic TEACH sets a single switch point during machine run conditions. Dynamic TEACH is recommended for applications
where a machine or process may not be stopped for teaching. The sensor takes multiple samples and the switch point is set
between the minimum and the maximum sampled distances.
2
Press and Hold
> 2s
3
Switch
Point
Value
1
5
4
Press to start
sampling
Press to stop
sampling
Figure 18. Dynamic Background Suppression
Note: The sensor must be set to = to use the following instructions. The DYN indicator is amber to
indicate Dynamic TEACH mode.
Note: To program the sensor using remote input, remote input must be enabled ( = ).
1. Present the target.
Method Action Result
Push Button
Present the first target. The sensor-to-target distance must be within the
sensor's range.
The target's measurement value
displays.
Remote Input
2. Start the TEACH mode.
Method Action Result
Push Button
Press and hold TEACH for longer than 2 seconds.
and
flash alternately
on the display. The DYN indicator
flashes.
Remote Input
No action required. N/A
3. Teach the sensor.
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
www.bannerengineering.com - Tel: 763.544.3164 21
