The Q4X sensor can be taught non-ideal reference surfaces, such as surfaces outside of the sensor range or very dark surfaces.
Teaching non-ideal reference surfaces may enable applications other than transparent or clear object detection, but best results for
transparent or clear object detection require a stable reference surface.
The display shows the match percentage to the taught reference point. The user adjustable switch point defines the sensitivity and
the output switches when the match percentage to the reference point crosses the switch point. Your
specific application may
require fine tuning of the switch point, but these values are the recommended starting values:
Switch point (%) Typical Applications
75 (default) Default, recommended for PET bottles and Trays
88 Recommended for thin films
50 Recommended for tinted brown, tinted green, or water-filled containers
10° or more
50 to 300 mm
Reference Surface
Separate as far as possible
Move as close
as possible
Tilt the beam
axis downward
It can also be
tilted
left or right

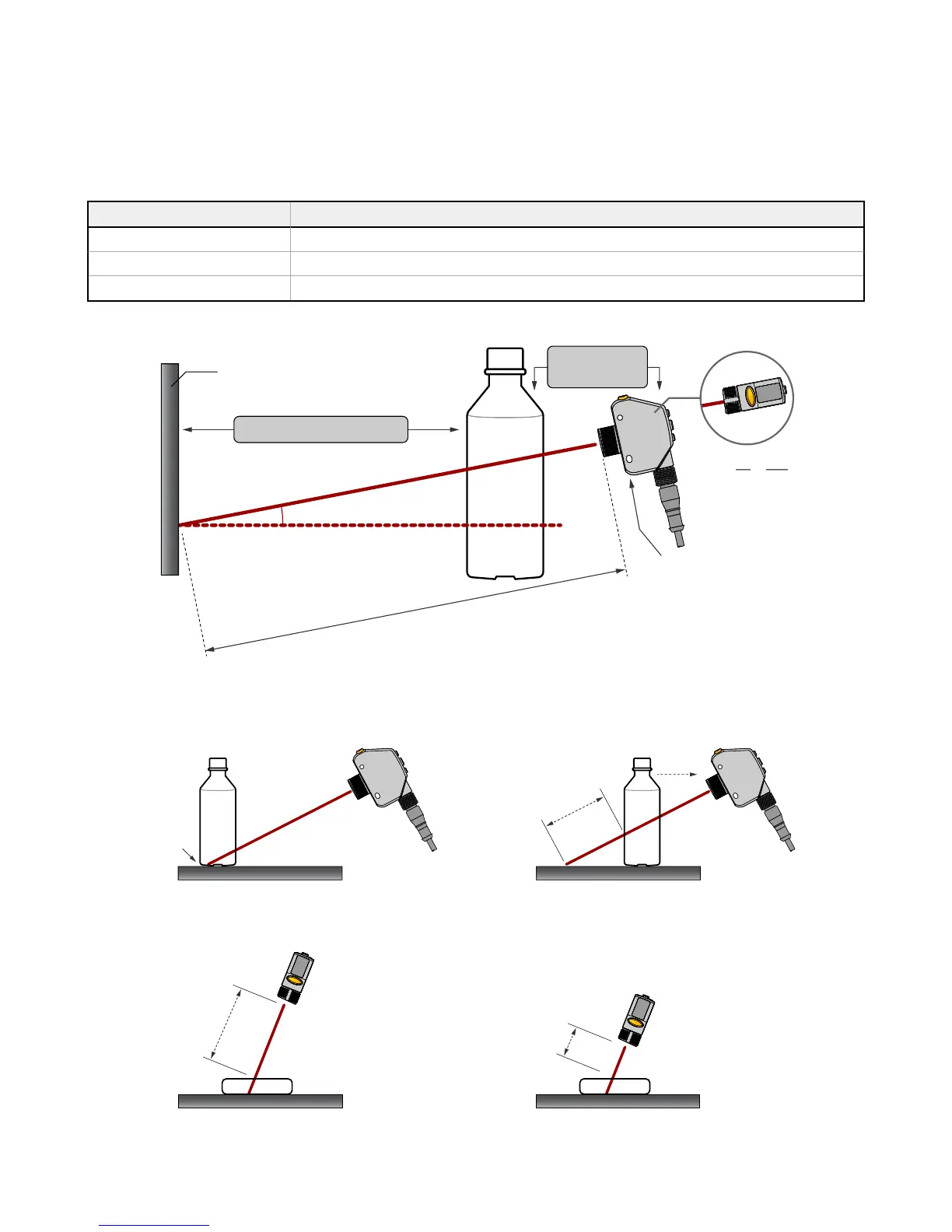

Figure 25. Example mounting considerations
The object is close to the reference surface
PROBLEM:
Move the target closer to the sensor
SOLUTION:
The sensor is far from the object
PROBLEM:
Move the sensor closer to the target
SOLUTION:
Figure 26. Common problems and solutions for detecting clear objects
Q4X Stainless Steel Laser Sensor with Dual Discrete Outputs and IO-Link
www.bannerengineering.com - Tel: 763.544.3164 37
