Chapter 2 Disassembly Process
2-2
CLM W6_CLM HD6 Jan 31, 2012
3. Hold projector lens, remove it carefully.
Repair note: - Please hold lens module in the
right way.
- Be careful not to dirty the glass
of the lens module.
- Be careful not to touch the motor
of the lens module
2-2 Disassemble Projector
Lens

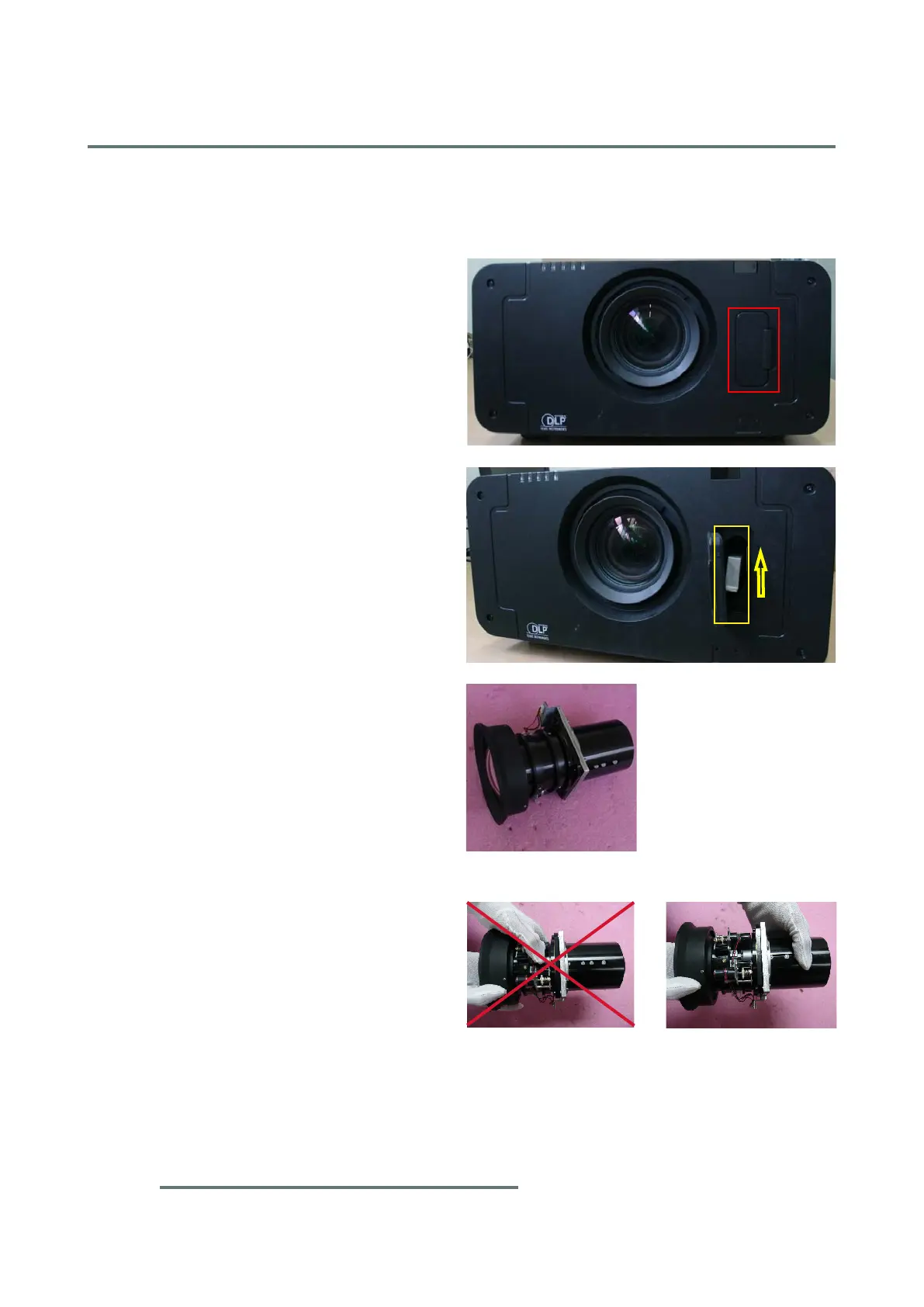

1. Open one cover on the front cover (red
square).
2. Pull up the lens handle (yellow arrow).
Projector Lens
Wrong
Right
To Next Page
