Chapter 2 Disassembly Process
2-53
CLM W6_CLM HD6 Jan 31, 2012

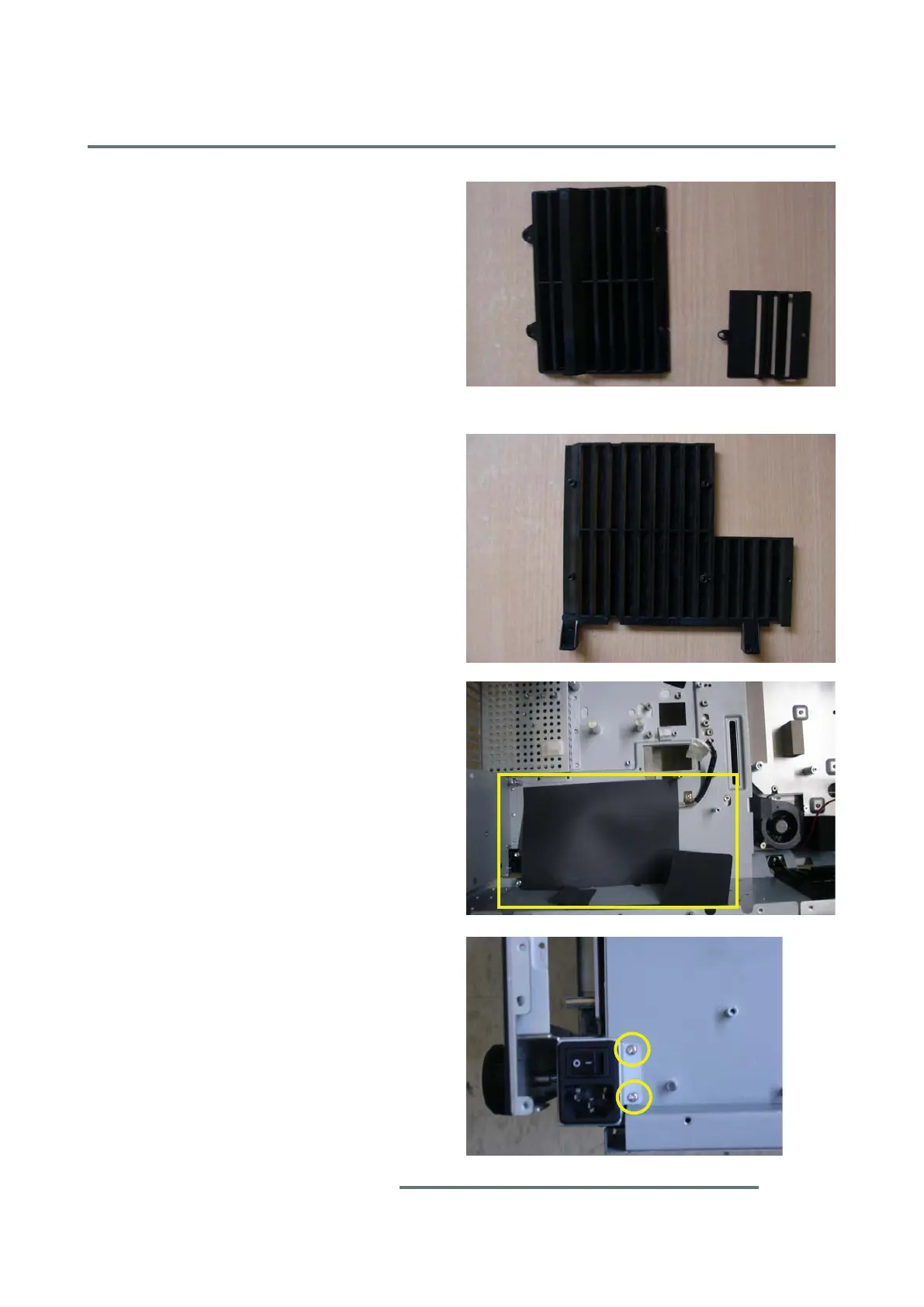

3. Disassemble Left Air Vent.
2-27 Disassemble Bottom
Cover Module
1. Tear off 1 mylar (yellow square).
2. Unscrew 2 screws (yellow circle).
