Chapter 2 Disassembly Process
2-28
CLM W6_CLM HD6 Jan 31, 2012
2-15

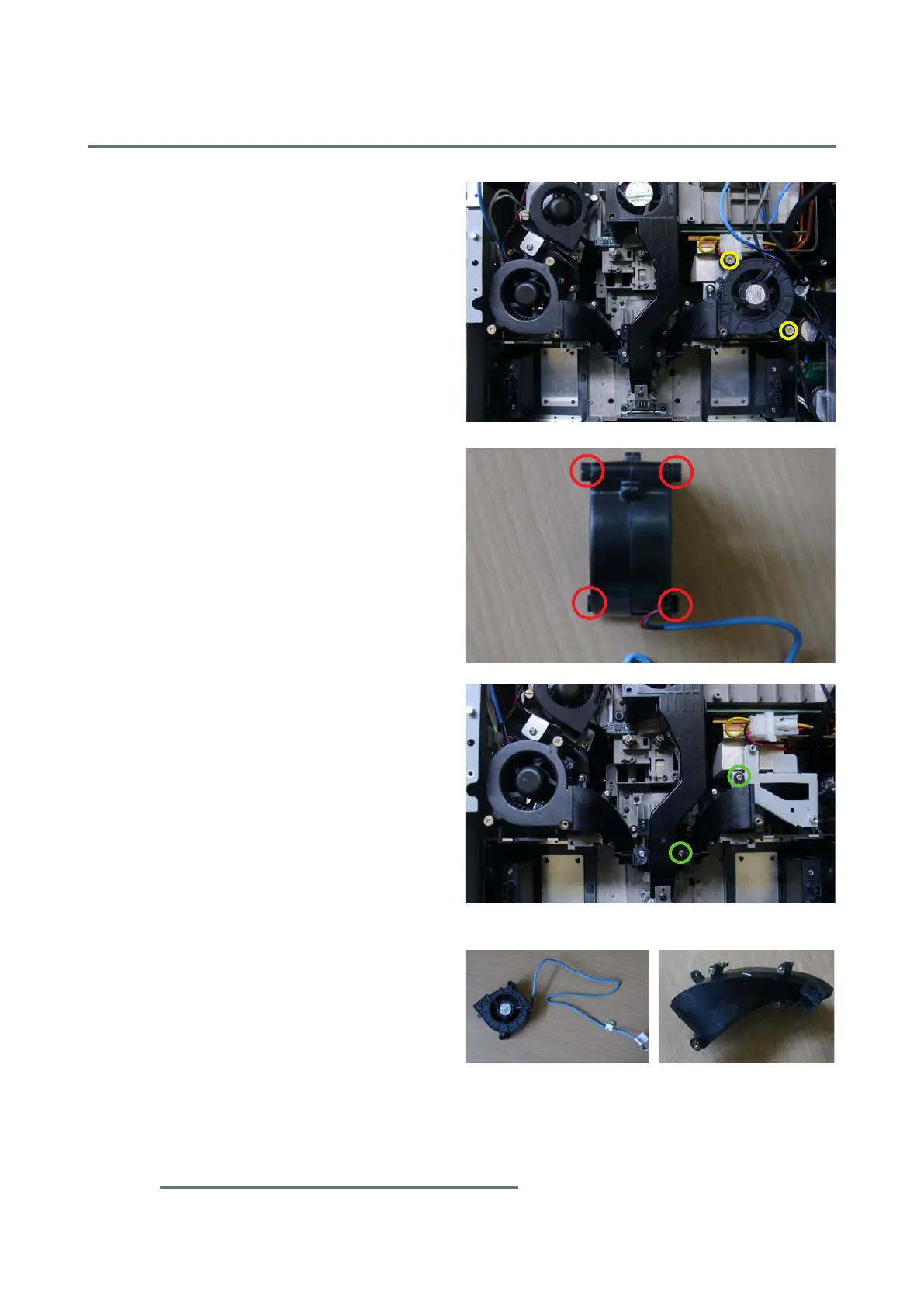

Disassemble Front dual
lamp blower module
1. Unscrew 2 screws (yellow circle) to
remove right lamp blower module.
2. T
ear off 4 rubbers (red circle) to
disassemble right lamp blower
.
3. Unscrew 2 screws (green circle) to
remove right lamp blower air guide.
38
40
Table of Contents
Default Chapter
4
Table of Contents
4
Chapter 1 Introduction
7
Highlight
7
System Block Diagram
10
Main Board Connection Diagram
11
Chapter 2 Disassembly Process
12
Equipment Needed & Product Overview
12
Disassemble Projector Lens
13
Disassemble /O COVER
14
Disassemble Main Board Module
16
Disassemble Lamp Module
19
Disassemble Color Wheel Module
21
Disassemble Front Cover Module
23
Disassemble Front Cover Shielding
25
Disassemble Top Cover
26
Disassemble Top Cover Shielding
26
Disassemble Keypad Board Module
27
Disassemble Connector Board
29
Disassemble Right Lamp Driver
33
Disassemble Dual Lamp Blower Module
36
Disassemble Front Dual Lamp Blower Module
39
Disassemble ROD and da Blower Module
41
Disassemble Blower Bracket
42
Disassemble Engine Module
43
Disassemble Fan (70*20)
53
Disassemble LVPS Module
56
Disassemble Left Lamp Driver
57
Disassemble Fan Module (120X120X25 MM)
59
Disassemble Fan Module (105X32 MM)
60
Disassemble Blower Module (60X25 MM)
62
Disassemble Right Air Vent
63
Disassemble Left Air Vent
63
Disassemble Bottom Cover Module
64
Rod Adjustment
67
Chapter 3 Troubleshooting
68
LED Lighting Message
68
Equipment Needed
70
Main Procedure
71
Chapter 4 Function Test & Alignment Procedure
80
Test Equipment Needed
80
Service Mode and Hidden Menu
80
OSD Reset
81
Reset Lamp Hour
81
Test Condition
82
Test Nspection Procedure
84
PC Mode
85
Calibration
88
Video Performance
90
Keystone Test
91
Network Function Test
92
Others
96
Chapter 5 Firmware Upgrade Section 1: System Firmware Upgrade
97
Section 1: System Firmware Upgrade Equipment Needed
97
Firmware Upgrade Procedure
98
Section 2: Network Firmware Upgrade Procedure
102
Equipment Needed
102
Read Projector P
103
Network Setting
104
PC Hardware Link
105
Section 3: Re-Write Serial Number
107
Equipment Needed
107
Re-Write Serial Number Procedure
108
