4-12
CLM W6_CLM HD6 Jan 31, 2012
Chapter 4 Function Test & Alignment Procedure
4. HDMI Test
Procedure - Test Signal: 480p, 720p, 1080p
- Test Pattern: Any Pattern
- Equipment: DVD Player with HDMI output
- Display type must be set to 16:9
Inspection item - HDMI performance test
Inspection Distance - 1.5 M ~2.0 M
Criteria - Ensure the image is well performed and the color
can not discolor.
4-10 Keystone Test
To do the following actions sequentially to execute Keystone test.

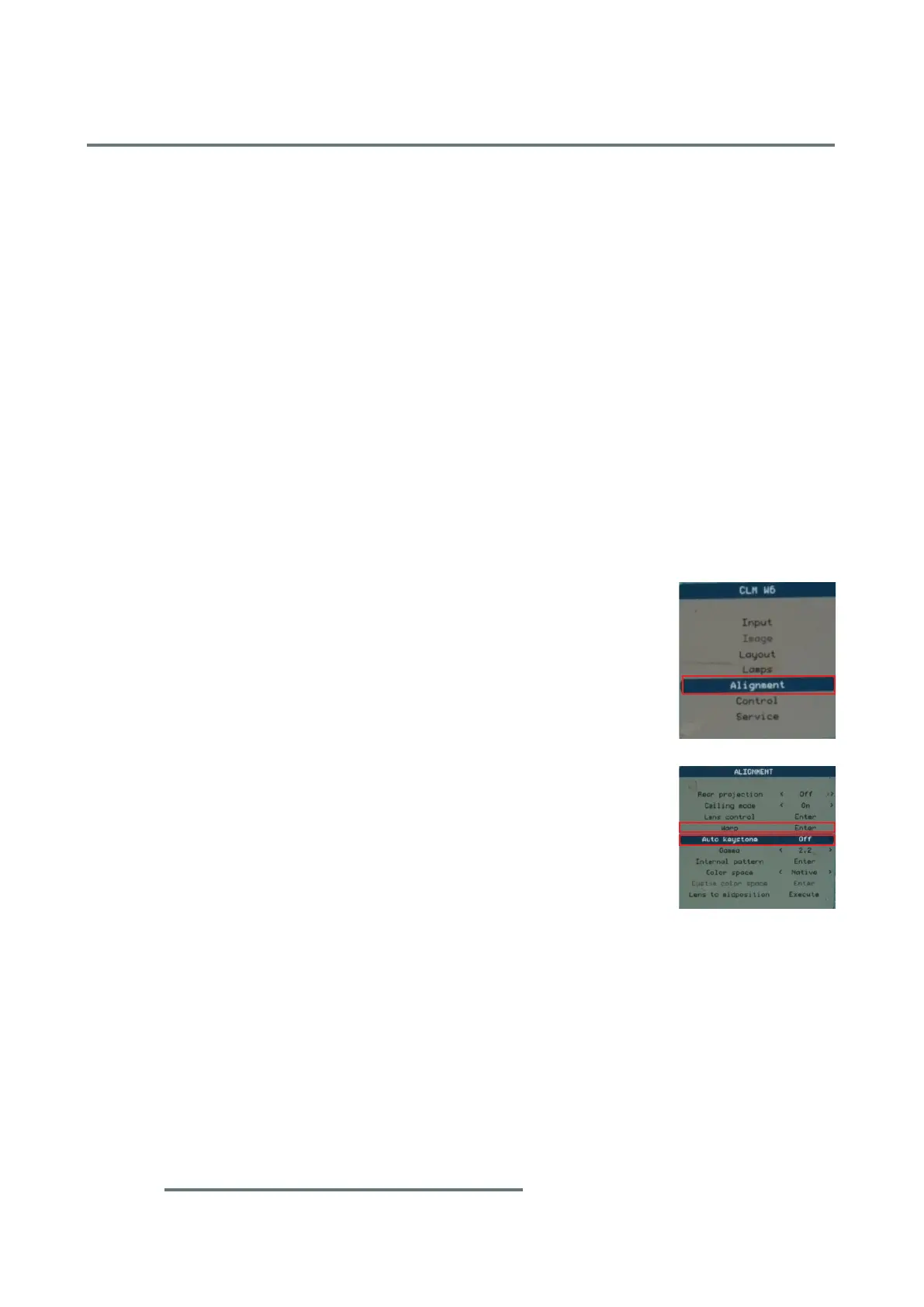

- Press "Menu" button on remote controller, then select "Alignment",
set "Auto Keystone" to OFF.
(1) Horizontal Keystone Test
- Press "Menu" button, select "Alignment" --> "Warp", then select
"Horizontal Keystone".
- Press "left" or "right" button to adjust the frame of projected image.
- Check whether the frame of projected image is changed,
then adjust it to 0.
(2) Vertical Keystone Test
- Press "Menu" button, select "Alignment" --> "Warp", then select
"Vertical Keystone".
- Press "left" or "right" button to adjust the frame of projected image.
- Check whether the frame of projected image is changed,
then adjust it to 0.
