Chapter 2 Disassembly Process
2-10
CLM W6_CLM HD6 Jan 31, 2012

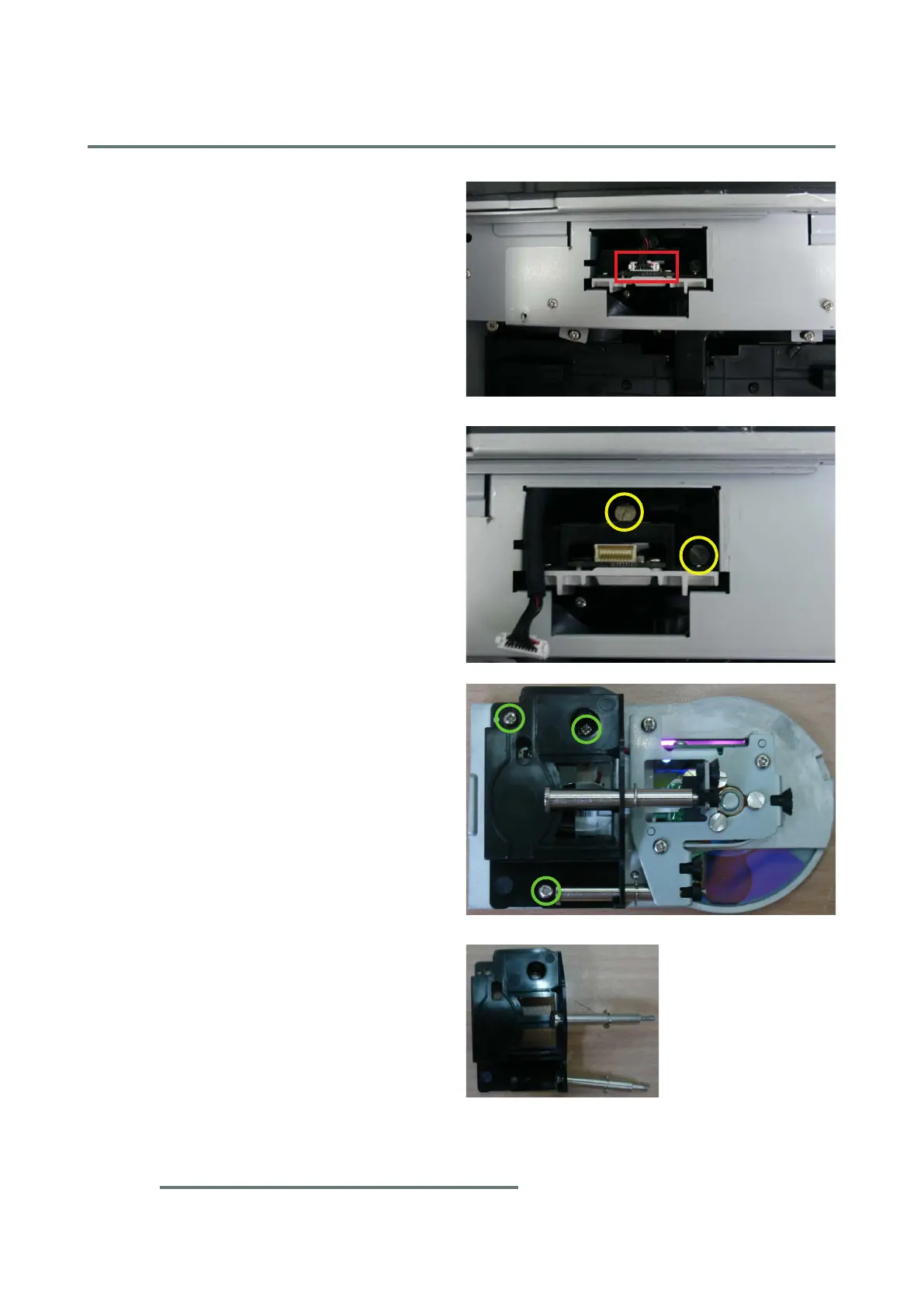

2-6 Disassemble Color Wheel
Module
1. Unplug 1 connector (red square).
2. Unscrew 2 "-" screws (yellow circle) to
disassemble color wheel module.
3. Remove Color wheel module.
4. Unscrew 3 screws (green circle) to
disassemble color wheel board cover
.
Color wheel board cover
20
22
