Chapter 2 Disassembly Process
2-16
CLM W6_CLM HD6 Jan 31, 2012
2-1
1

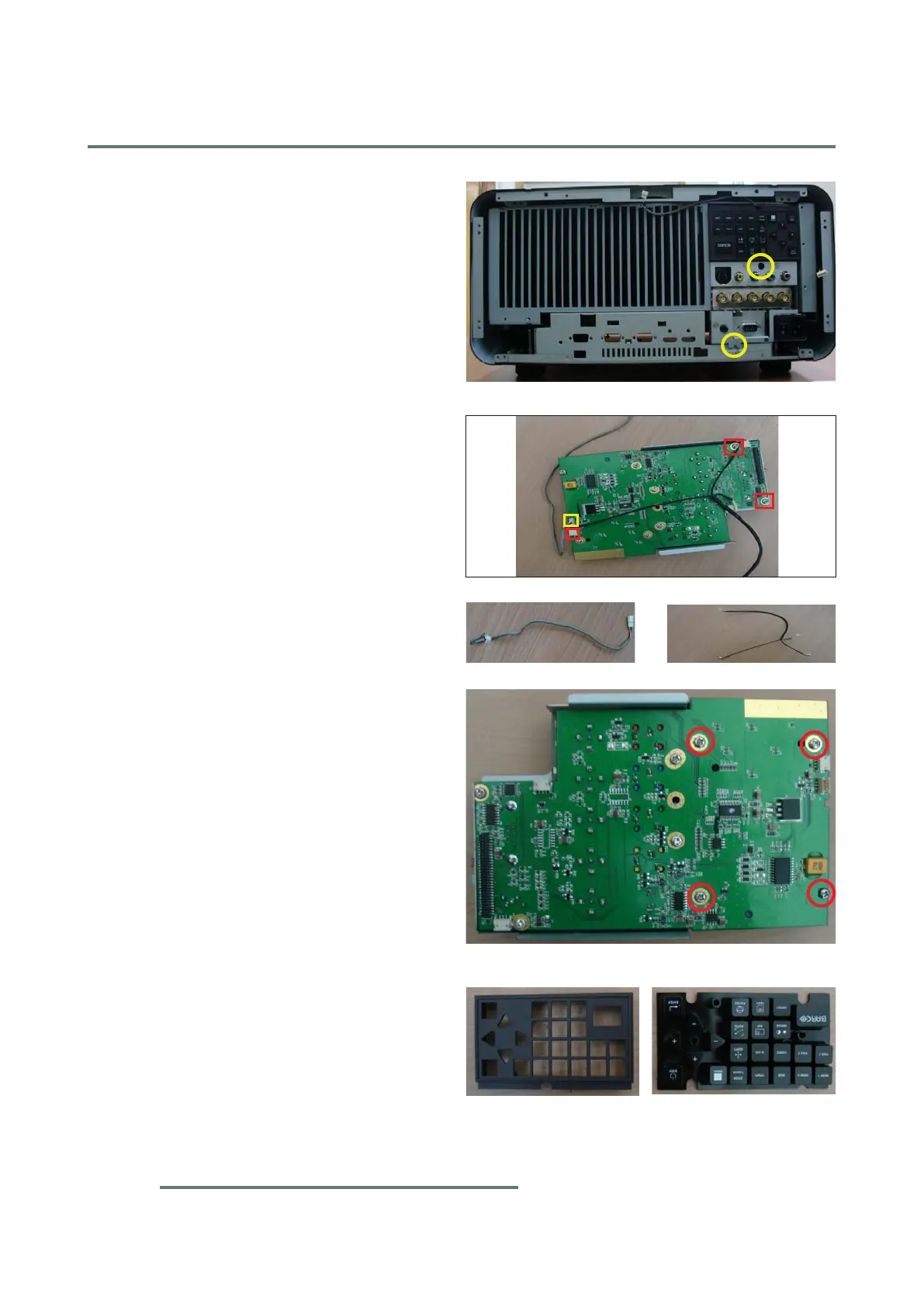

Disassemble Keypad
Board Module
1. Unscrew 2 screws (yellow circle) to
disassemble Keypad Board module.
2. Unplug 1 connector (yellow square).
3. Unplug 3 connectors (red square).
4. Unscrew 4 screws (red circle) to
disassemble Keypad panel.
