4-9
CLM W6_CLM HD6 Jan 31, 2012
Chapter 4 Function Test & Alignment Procedure
- Color appears normal.
- It is unacceptable to have few lines ashing.
- If the screen appears image noise, please press
"Menu" button to select "image" --> "Timings" -->"Timings" -->
"H phase" for adjusting phase.for adjusting phase.
- RGBW should all appear normal on the screen and
sort from R-G-B-W.
- Color levels should be sufcient and normal.
(The unidentied color levels on both left and right
sides should not over 8 color levels.)
- Gray level should not have abnormal color or heavy
lines.
- If color appears abnormal under the 64 gray RGBW
pattern, please get into Hidden Menu to do Color
Speed and Color Wheel Index adjustment.

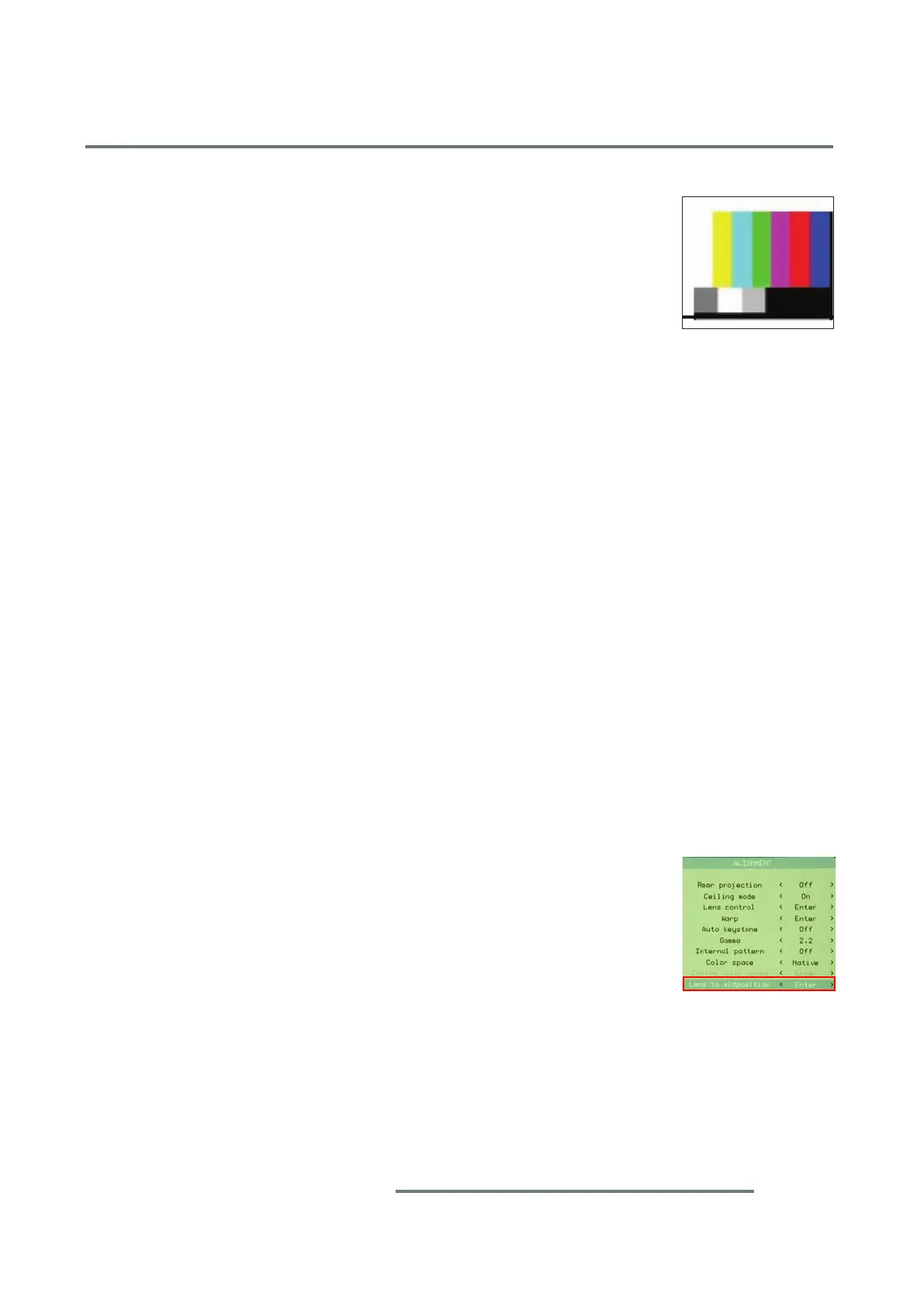

4-8 Calibration
1. Lens Calibration
Procedure - Put the projector on a horizontal surface.
- Press "Menu" button to get into OSD menu.
- Select "Alignment" by pressing "down" button.
- Select "Lens to midposition" to execute "Lens
Calibration".
SMPTE BAR
To Next Page
