Chapter 2 Disassembly Process
2-30
CLM W6_CLM HD6 Jan 31, 2012
2-16

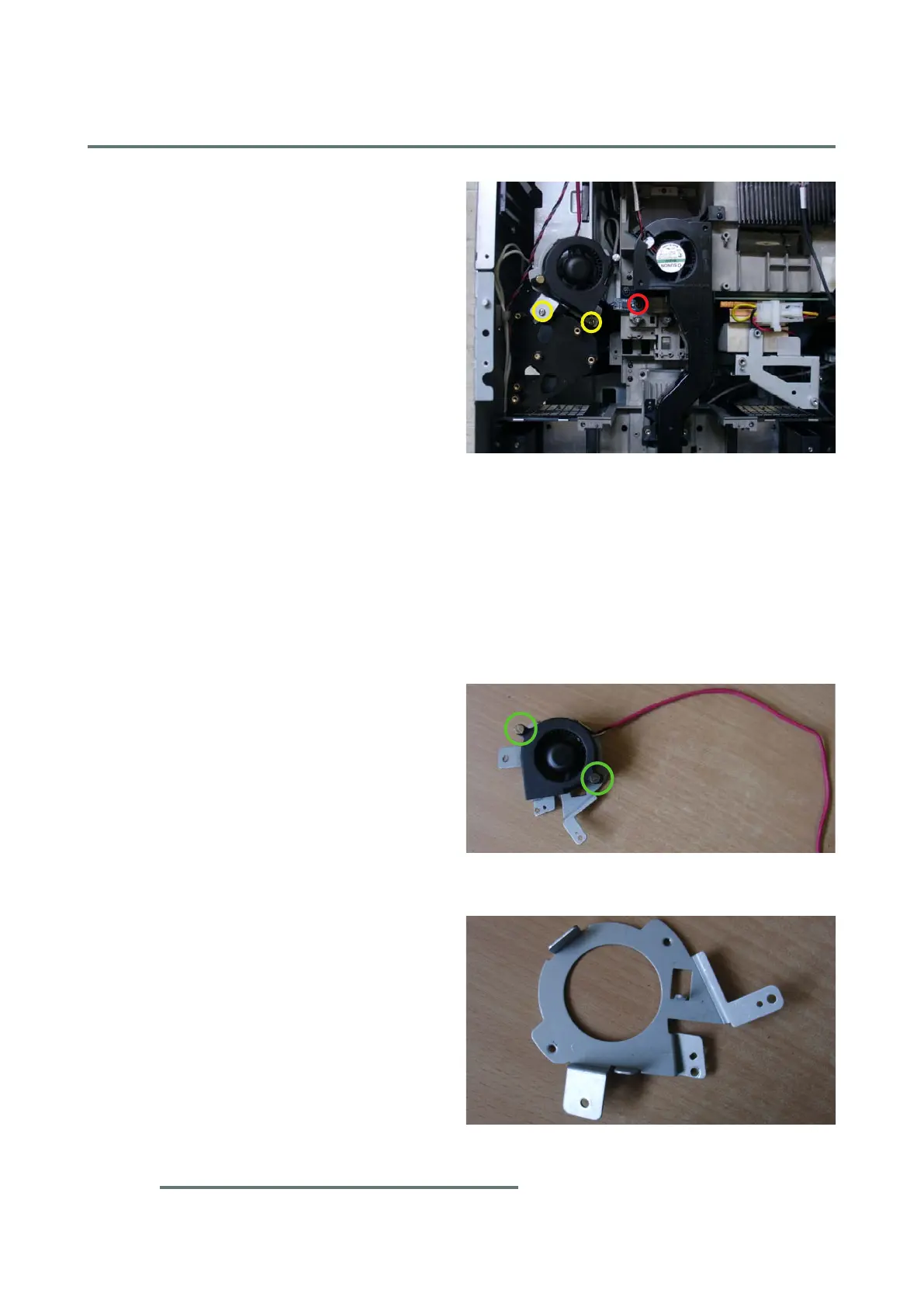

Disassemble ROD and
DA
blower module
1. Unscrew 1 screw (red circle) to
remove thermal sensor board.
2. Unscrew 2 screws (yellow circle) to
remove ROD and DA
blower module.
3. Unscrew 2 “-“ screws (green circle) to
disassemble ROD and DA
blower module.
40
42
