Chapter 2 Disassembly Process
2-15
CLM W6_CLM HD6 Jan 31, 2012

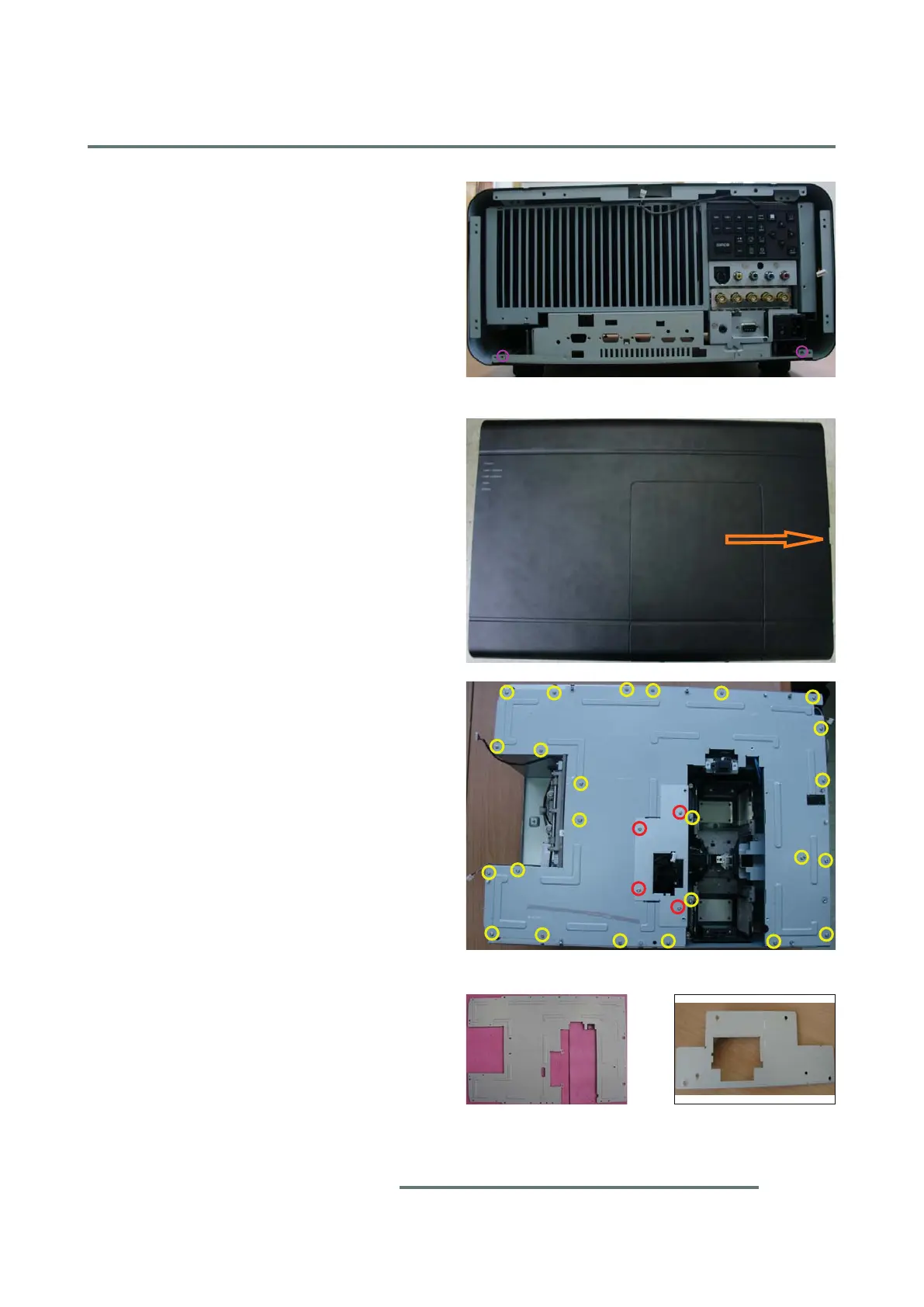

2-10 Disassemble Top Cover
Shielding
1. Unscrew 4 screws (red circle) to
disassemble Color wheel cover.
2. Unscrew 24 screws (yellow circle) to
disassemble top cover shielding.
2-9 Disassemble Top Cover
1. Unscrew 2 screws (pink circle) to
disassemble Top cover.
2. Pull the front cover forward (orange
arrow) to remove Top cover.
Color wheel cover
Top cover shielding
To Next Page
