Barco CLM W6 - Disassemble Front Cover Module

Chapter 2 Disassembly Process
2-12
CLM W6_CLM HD6 Jan 31, 2012
2-7 Disassemble Front
Cover Module

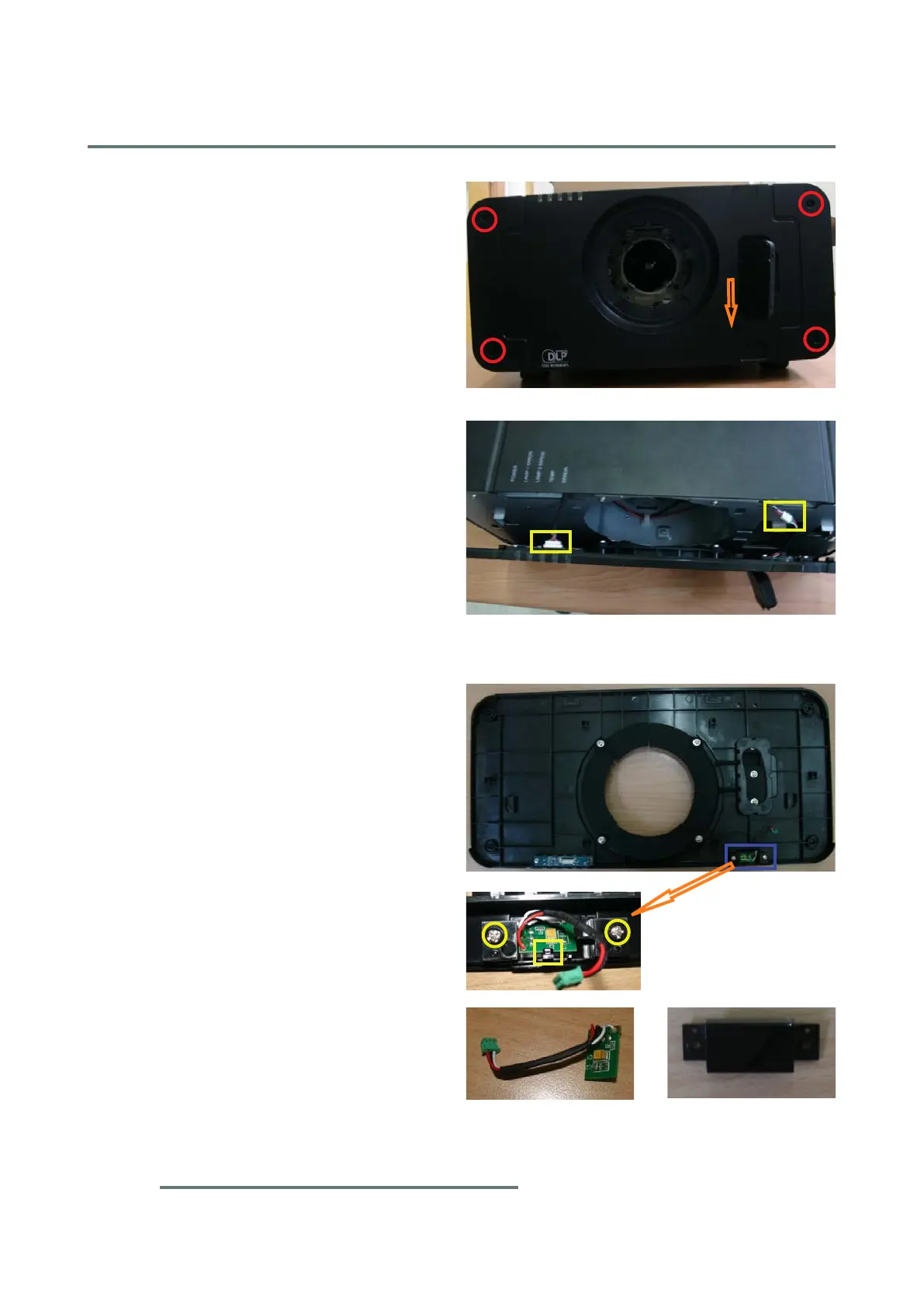

1. Unscrew 4 screws (red circle), pull
down the front cover (orange arrow).
2. Unplug 2 connectors (yellow square) to
disassemble Front cover module.
3. Use a tweezers to open 1 clip (yellow
square).
4. Remove front IR sensor board.
5. Unscrew 2 screws (yellow circle),
remove IR cover.
IR
IR Cover
