Chapter 2 Disassembly Process
2-46
CLM W6_CLM HD6 Jan 31, 2012

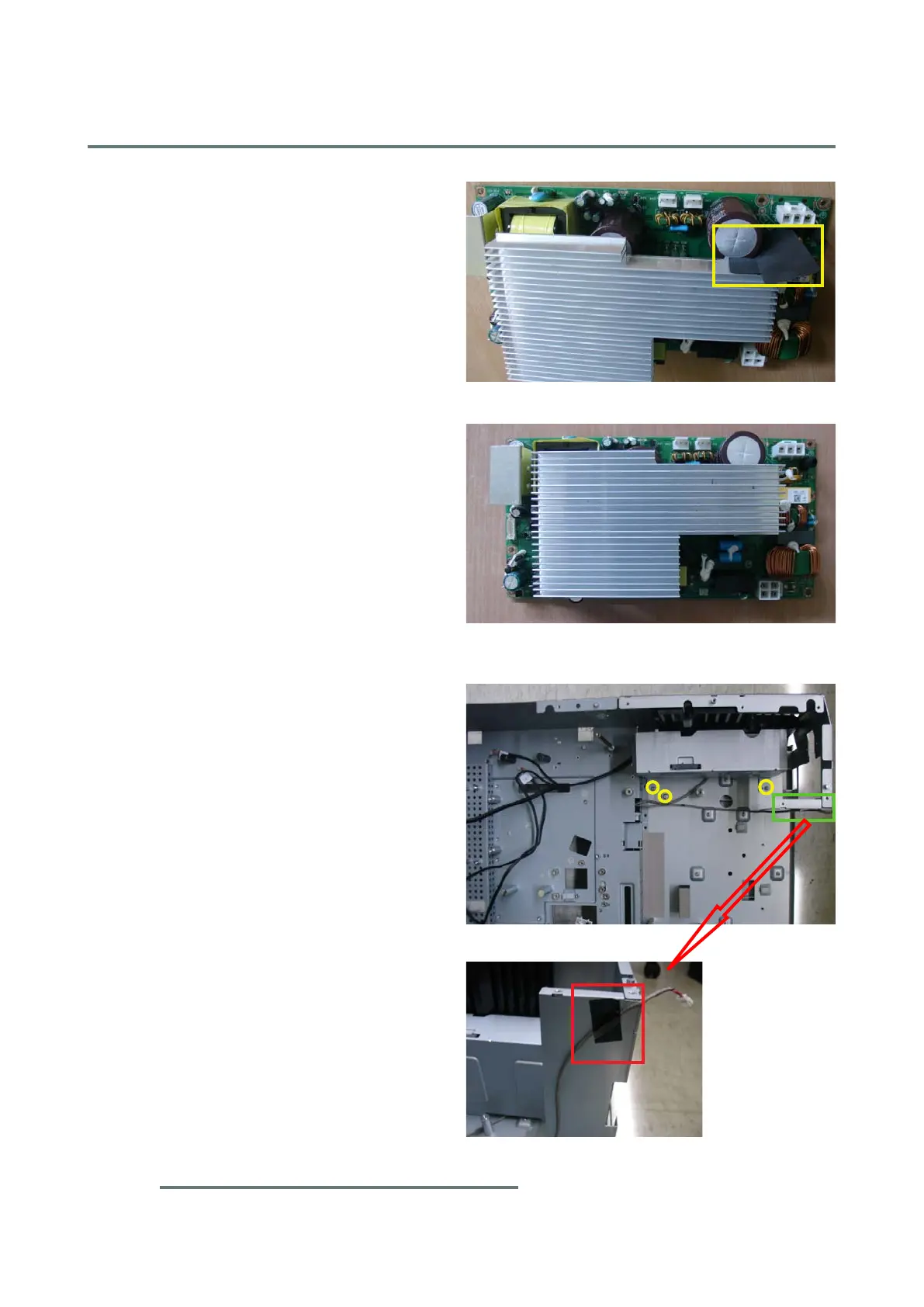

5. Tear off 1 mylar (yellow square).
Repair note: - Please stick the mylar (yellow
square) as it was when assemble
LVPS module.
6. Disassemble LVPS.
2-21 Disassemble Left Lamp
Driver
1. Tear off 1 mylar (red square).
2. Unscrew 3 screws (yellow circle) to
remove Left Lamp Driver module.
To Next Page
