Barco CLM W6 - Rod Adjustment

Chapter 2 Disassembly Process
2-56
CLM W6_CLM HD6 Jan 31, 2012
2-28 Rod Adjustment
1. Environment Adjustment
- The distance between the engine and the
screen is 2.00 M for CLM W6 and CLM
HD6.
- This process should be done in the dark
environment (under 2 Lux).
2. Procedure Adjustment
- Change the screen to “white screen.”

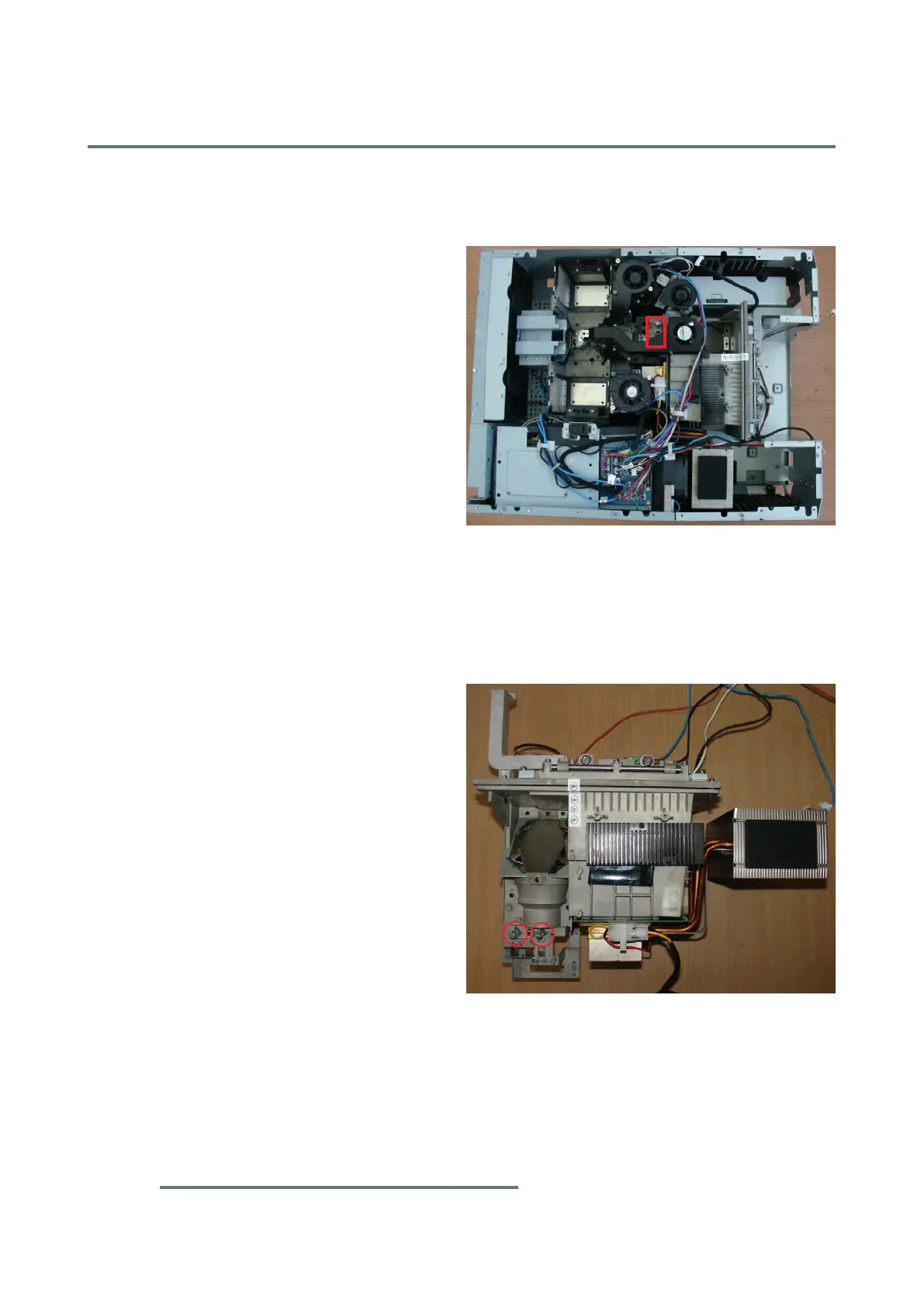

- Adjust the rod by using the screws on the
engine module to re-adjust the image.
(“screw1“shouldbeadjustedrst,and 
then “screw 2“. Adjust until the yellowish
or bluish parts disappear.)
3. Abnormal image inspection
- It should not have any abnormal color at
the rim of the image by estimating through
the eyes.
Note:
- Avoid over-adjusting the rod.
-Aftertheoperation,pleaseusethegluetox
the screws.
screw 1
screw 2
